Lubricant / Meters / MGE-400 · ELECTRONIC

MGE-400 · ELECTRONIC

15-400 l/min · ±0.5% · F2" BSP

Lubricant Lubricant
Diesel Diesel
Biodiesel Biodiesel

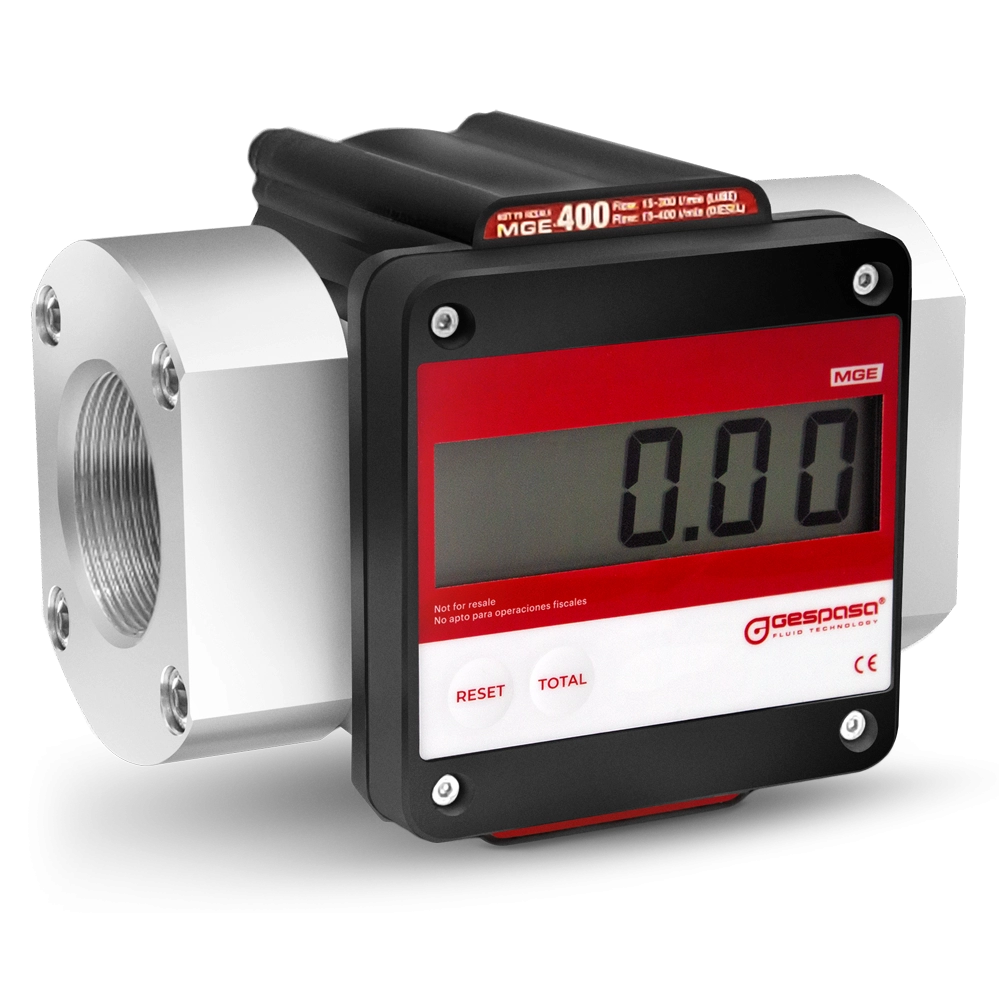

MGE-400 · Electronic gear meter
32592-CF00000
MGE-400 · Electronic gear meter with Viton joints · B100
32592-CF00005

Meter made of high quality aluminium. Its measuring chamber allows to transfer all type of hydrocarbon and oils (please, consult other liquids).

It is for private use.



Technical data:

  • Flow (approx.):
    • 15-400 l/min (diesel)
    • 15-300 l/min (lubricant)
  • Tropicalised electronics
  • 5-digit display
  • It stores the litres of the last service.
  • Maximum pressure: 45 bar
  • Min./Max. temperature: -10 / +50 ºC
  • Accuracy: ±0.5 %
  • Inlet/outlet connection thread: Flange 2" BSP
  • Powered by button battery of long duration
  • Low battery display
  • It has calibration parameters and stored litre totalizer on a PERMANENT MEMORY.
Size and weight (approx.):
  • Dim.: 193x145x141 mm (length x width x height)
  • Weight: 4.3 kg
