Microfilters
Fuel / Microfilters / FG-2000

FG-2000

3 · 5 · 15 or 50 µm (micra) · 2,000 l/min · 6"

Biodiesel Biodiesel
Diesel Diesel
Petrol Petrol
FG-300/15 · Water absorbent microfilter with aluminium housing · 6" · 15 µm
663600000
FG-2000/50 · Microfilter with aluminium housing · 6" · 50 µm
663600100
  • It is suitable for particle microfiltration from 3 to 15 µm (micron) (the filtering paper is water absorbent) or 50 µm (micron). It is possible to drain through the manual drain valve placed in the microfilter bottom.

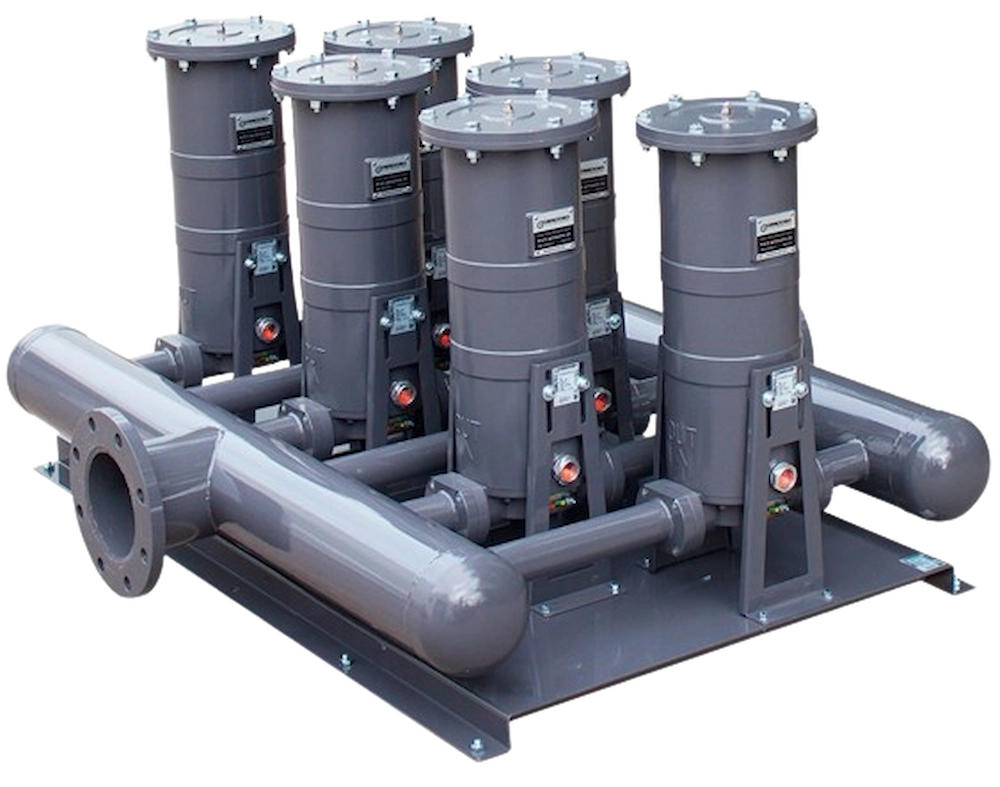

  • Composed of 6 FG-300 elements to get a flow of 2,000 l/min
  • This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1 and, in general, hydrocarbon liquid microfiltration.
  • Differential manometer where you can see when the filter level is exceed.
  • The microfilter is supplied with the filtering element installed.

TECHNICAL FEATURES:

  • Filtration:
    • 3 µm (micron) · water absorbent (mod. FG-2000/3)
    • 5 µm (micron) · water absorbent (mod. FG-2000/5)
    • 15 µm (micron) · water absorbent (mod. FG-2000/15)
    • 50 µm (micron) (mod. FG-2000/50)
  • Flow: 2,000 l/min
  • Microfilter cover and body: Aluminium
  • Differential manometer
  • Inlet / Outlet Connections: 6" DIN.2576
  • Manual lower drain valve
  • Superior drain valve to eliminate the inner air of the filter
  • Installation: in the suction or delivery of the pumping kit
  • Maximum operating pressure: 6 bar
  • Maximum housing pressure: 10 bar

Size and weight (approx.):

  • Dim.: 1,470x1,260x800 mm (length x width x height)
  • Weight: 241 kg
