CG-400HD ATEX

1.5 kW · 230 or 230/400 V

Diesel Diesel
Petrol Petrol

New

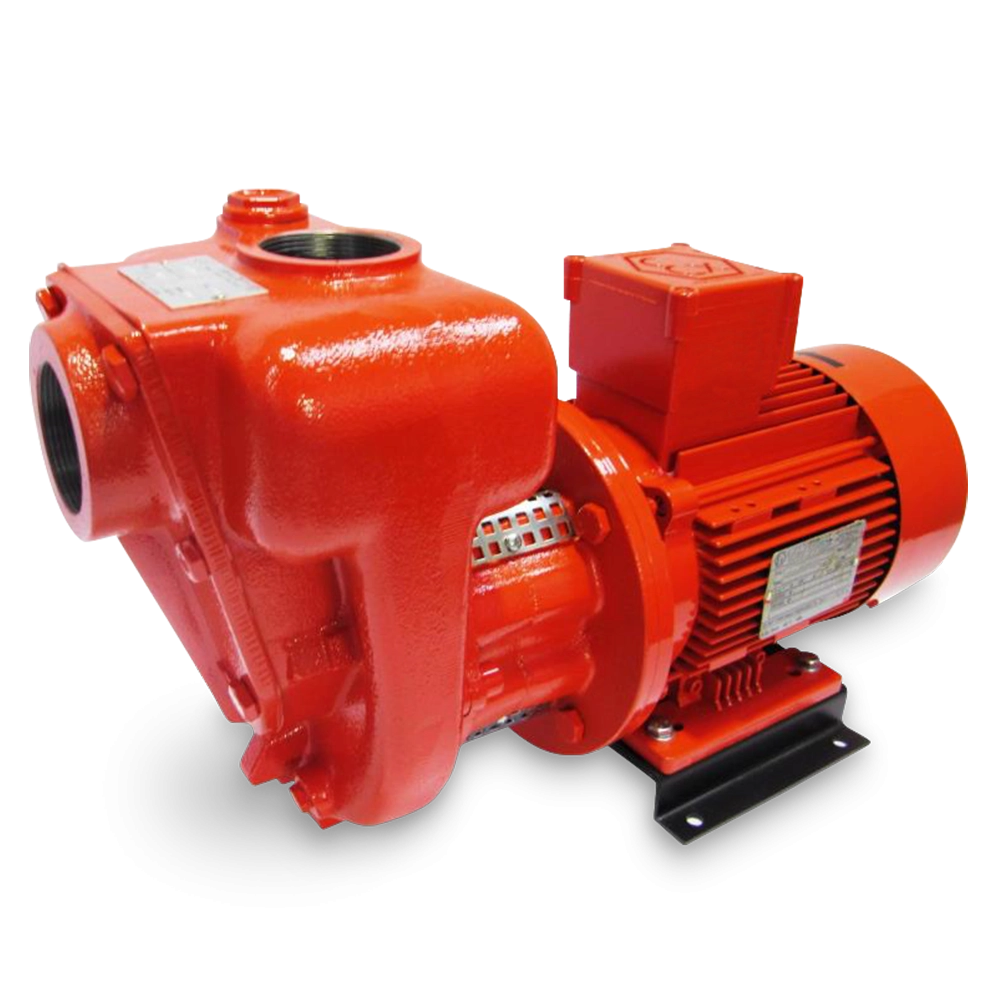

  • Self-priming electric pump monobloc execution with multi-blades open impeller, suitable for pumping diesel, petrol and other compatible products, manufactured in accordance with standards 2014/34/UE (ATEX) (II 2G Ex h IIB T4 Gb).
  • A suitable non-return valve is placed inside the pump body to avoid the empty after stopping.

FEATURES

  • Max. suction depth: 6 m
  • Max. liquid temperature: +50 °C
  • Max. solid diameter: 16 mm
  • Max. delivery: 26.5 m³/h · 400 l/min
  • ATEX Directive: II 2G Ex h IIB T4 Gb
  • Max. manometric head: 1.9 bar
  • Øinlet/outlet: F2"

Materials:

  • Pump body: Cast iron
  • Valve body: Cast iron
  • Support: Cast iron
  • Impeller: Cast iron
  • Motor shaft: Stainless Steel AISI 316
  • Seal: Viton/Carbon/Alumina

Size and weight (approx.):

  • Dim.: 260x545x345 mm (length x width x height)
  • Weight: 31 kg
CG-400HD 230/400 V ATEX
10240-CF00000
  • Motor: 1.5 kW · 230/400 VACV · 50 Hz · EExd
  • Consumption: 5.9/3.4
  • RPM: 2,800 rpm
  • IP-55 Protection
