Pneumatic Pumps
Family Selection / Pneumatic Pumps / GM-3

GM-3

ratio 3:1 · 6-8 bar · 25 l/min

Lubricant Lubricant
  • Pneumatic pumps specially suitable for the oil transfer with low-medium viscosity (SAE 15/50) and anti-freeze for short-medium distances (40-50 m).
  • The air pressure may vary between a minimum of 3.5 bar and a maximum of 10 bar.
  • They have built-in a fixation drum thread of R2" and M64x4 (also called bung adapter).
  • Using the suitable accessories these pumps can be hung up on the wall or assembled on drums, containers or mobile trolleys.

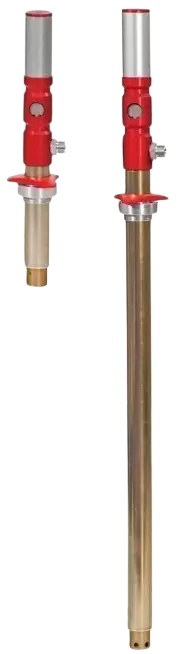

GM-3 · Pneumatic pump for wall assembly
12034
GM-3 · Pneumatic pump for 200-litre drum
12054
Oil delivery capacity25 l/min
Ratio3:1
Working pressure6-8 bar
Air consumption200 l/min
Air inlet connectionF1/4" G
Oil outlet connectionM1/2" G
Noise level80 dB
Shank diameter42 mm
Shank length

215 mm (wall)

940 mm (drum)

Weight

3.78 kg (wall)

5.35 kg (drum)

Box volume

0.007 m³ (wall)

0.016 m³ (drum)

Order
