Extractors and recovery
Family Selection / Extractors and recovery / LGN-65

LGN-65

Pneumatic

Diesel Diesel
Petrol Petrol

New

1. WATER SUCTION OF THE TANK BOTTOM

  • The pneumatic extractor-vacuum cleaner is especially suitable for suctioning the water, mud and impurities that are close to the suction tube in all type of tanks. The water suction is made without turbulences preventing the water from suspension.
  • It points out because of a quick suctioned liquid separation, by pressurisation and decanting, returning the clean liquid to the same tank and the polluted one to the authorised tanks.

2. FUEL VEHICLE EXTRACTION

  • Quick and effective solution to those vehicles that have supplied the wrong fuel (diesel instead of petrol or vice versa).
  • The suction is made through Ø12x9 mm or Ø8x6 mm probe that is placed into the vehicle tank.

3. CONTAINER CLEANING

  • It is suitable for the liquid and mud suction in the petrol station containers.
  • The kit easily suctions mud, hydrocarbon water an dirt there is in the container bottom.

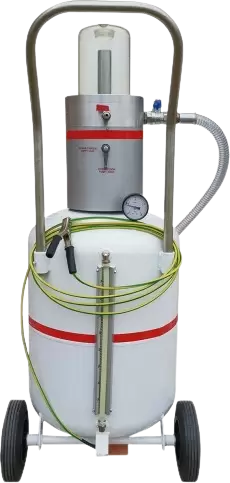

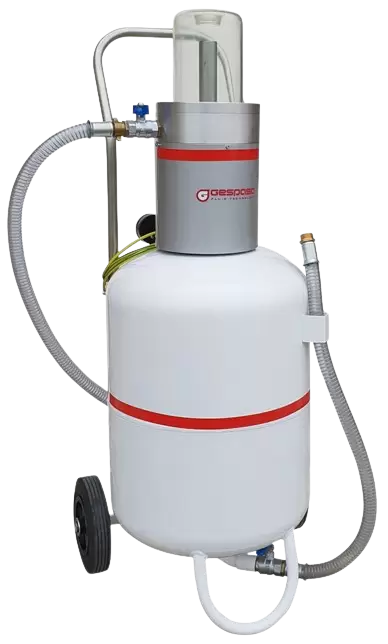

LGN-65 · Pneumatic extractor
48032-CF00000

Features and Technical Data:

  • Pneumatic · without electric connection
  • Required air flow of 200 l/min at 6 bar or suctioned flow of 400 l/min
  • Suction creating the tank vacuum (-0.8 bar)
  • Vacuum: It is possible to empty it by gravity, through a ball valve and a metre of hose installed in the tank bottom or creating a positive pressure in the tank (up to 0.9 bar). The 6 m hose is easy and quick to connect to the empty hose in order to delivery and empty the waste up to 7 m away.
  • It is composed of a transparent vessel with a perfect vision of the suctioned liquid and dirt.
  • It allows a vacuum retention of the tank to suction up to 50 litres without being connected to the air tube, with a suction capacity of 6-m height, allowing to work without air intake.
  • It is suitable for diesel and petrol.
  • Sealed security valve · tared at +1.5 bar
  • Sealed valve that regulates the air intake · tared at 0.9 bar
  • Air hose connection
  • Minimum pressure: 6 bar

Equipped with:

  • Vacuum gauge -1 +3 bar
  • Level indicator
  • Tank for the extracted fuel
  • Transparent vessel with metallic protection housing
  • Earth connection
  • 5.5 m transparent hose with 1 m metallic galvanised lance
  • 0.75 m M3/4” complete transparent drain hose
  • 1.5 m Ø12x9 mm tank extraction probe
  • 1.5 m Ø8x6 mm tank extraction probe
  • Chassis with handle and back wheels
Size and weight (approx.):
  • Dim.: 550x510x1,140 mm (length x width x height)
  • Weight: 36.45 kg

*Weight including accessories
