AM-20

Portable machine of double use · 230 VAC

Lubricant Lubricant

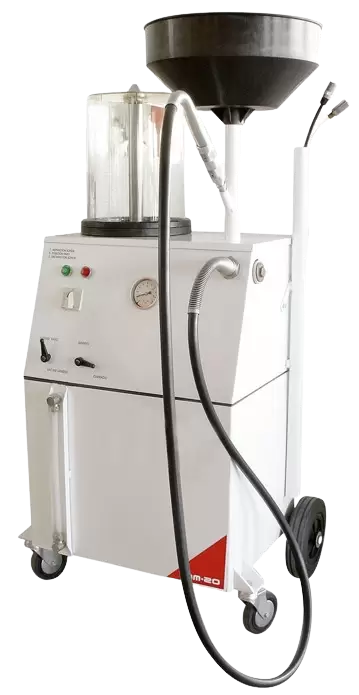

AM-20 · Mobile electric extractor
20100
  • Portable double-use kit with a transparent vessel of 10 litres for the waste oil extraction through the oil motor suction by the level bar hole of the vehicle case and with a funnel to recover the waste oil by gravity. Swivelling wheels to make easier its transport.
  • It has built in a suction probe-carrier, with a special adapter that is directly connected to vehicles like Mercedes-Benz and BMW, an exchanged probe set of 3, 5 and 6 mm to be coupled to the rest of vehicles.

Technical Data:

  • Extraction and transfer system
    • EA-89 electric pump · 92 W · 230 VAC · 50-60 Hz
    • Consumption: 1-2 A
    • 2,900 rpm
    • Evacuation pressure: + 3 bar
    • Depression: -0.9 / -0.8 bar
  • System of pouring by gravity

Equipped with:

  • Vacuum gauge
  • Transparent vessel of 10 litres
  • Inverter suction/pouring switch
  • 7 W fluorescent lighting
  • 60-litre tank
  • Suction probe-carrier with special adapter
  • Exchangeable probes of 3, 5 and 6mm
  • 2.5 m Ø9 x 18 mm synthetic suction hose
  • In-line filter for the impurities
  • 3 m 230 VAC electric connection cable

Size and weight (approx.):

  • Dim.: 610x500x1,290 mm (length x width x height)
  • Weight: 55 kg
