Electric Pumps
Family Selection / Electric Pumps / IRON-45 Ex 12 or 24 VDC

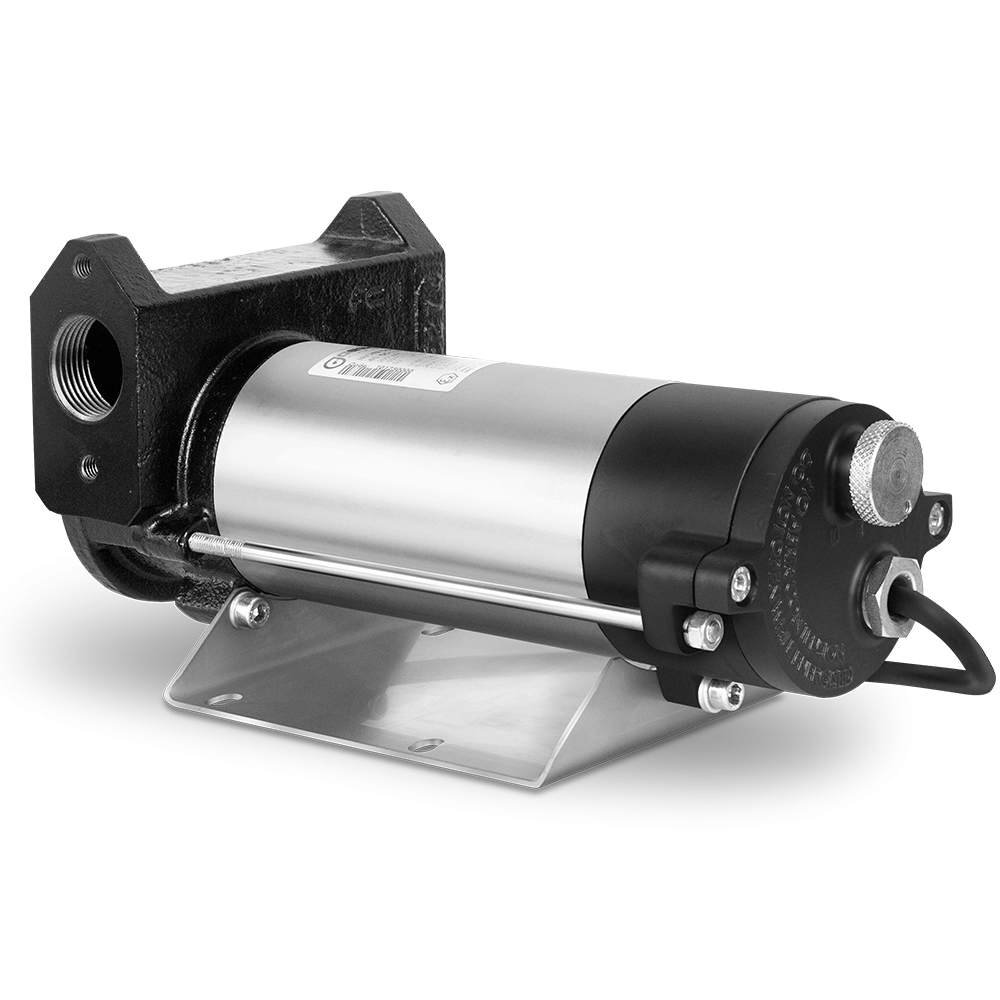

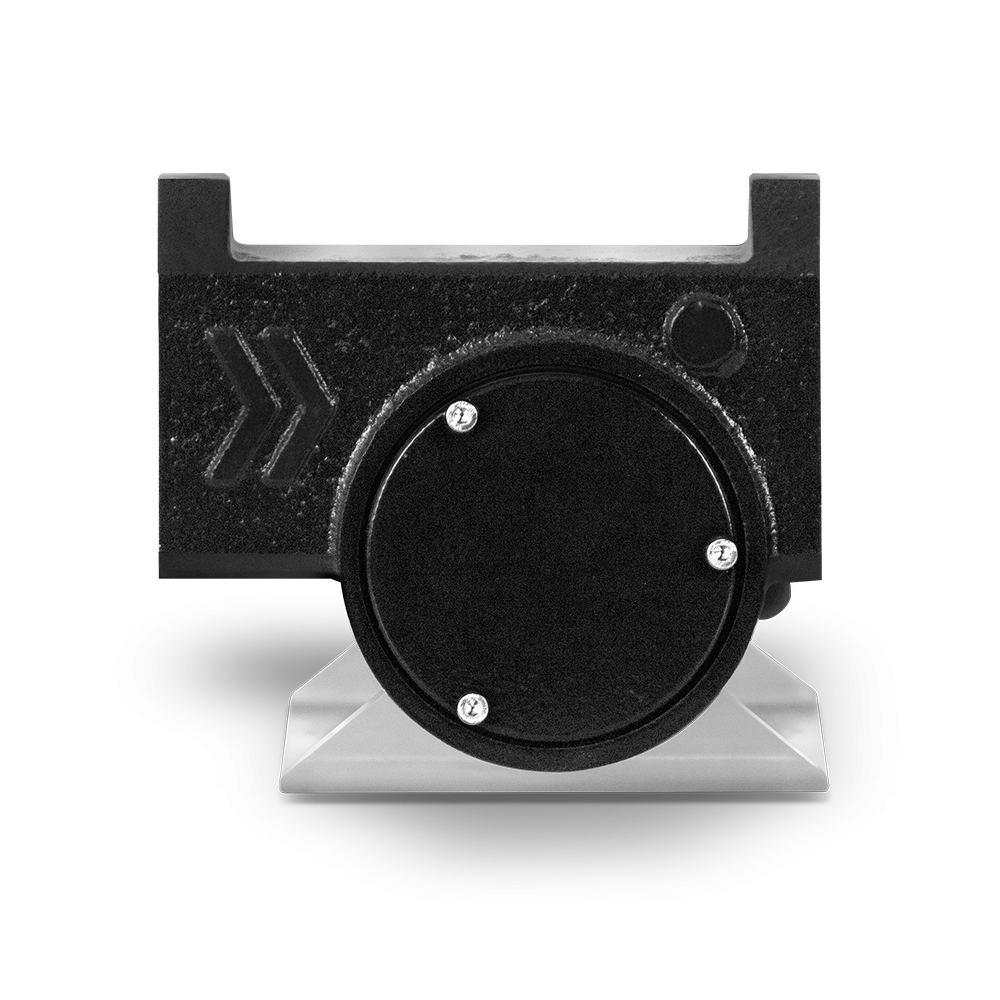

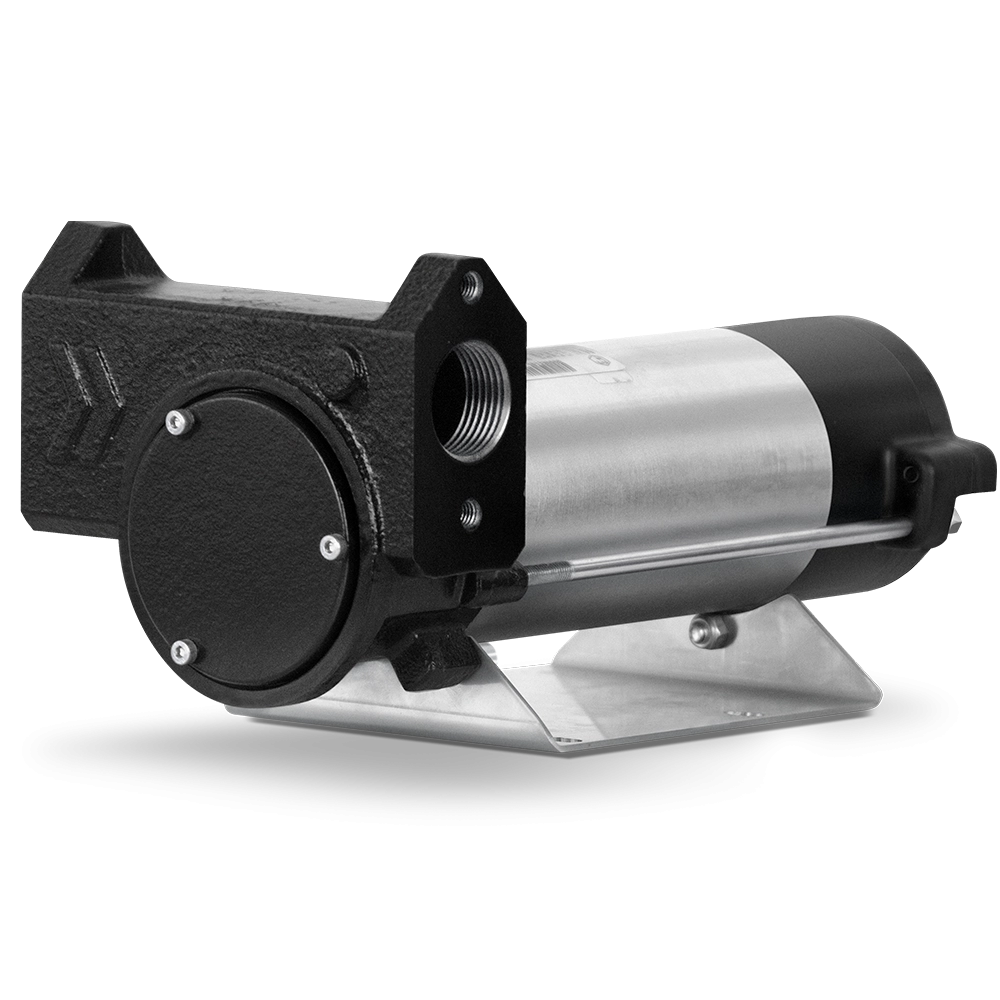

IRON-45 Ex 12 or 24 VDC

Electric explosionproof pum for petrol transfer | 49 l/min

Diesel Diesel
Petrol Petrol

New

IRON-45 Ex 12 VDC
10210-CF00000
IRON-45 Ex 24 VDC
10220-CF00000
  • Self-suction - self-priming, explosionproof, eccentric with self-adjusting blades
  • With recirculation bypass
  • Suction: 2.7 m
  • Priming pipe suction: 5 m
  • Free flow: 49 l/min (12 VDC) · 47 l/min (24 VDC)
  • Consumption: 15-25 A (12 VDC) · 7-12 A (24 VDC)
  • Motor: 0.12 kW 12 or 24 VDC EExd
  • With thermal protector
  • 2,800 rpm
  • S2 30' operation
  • IP-55 protection
  • Operation temperature: -10 ºC · +40 ºC
  • Category: ATEX II2G
  • Protection mode (own supply): Ex db IIA T4 Gb
  • Thread connection: F1" (BSP) and flange
  • ON/OFF switch
  • 3 m cable
  • Anti-rust treatment

Size and weight (approx.):

  • Dim.: 283x143x140 mm (LxWxH)
  • Weight: 7 kg
Order
