SUBMERSIBLE PUMP

230 VAC · 0.5 kW · 80 l/min

Adblue/Def Adblue/Def

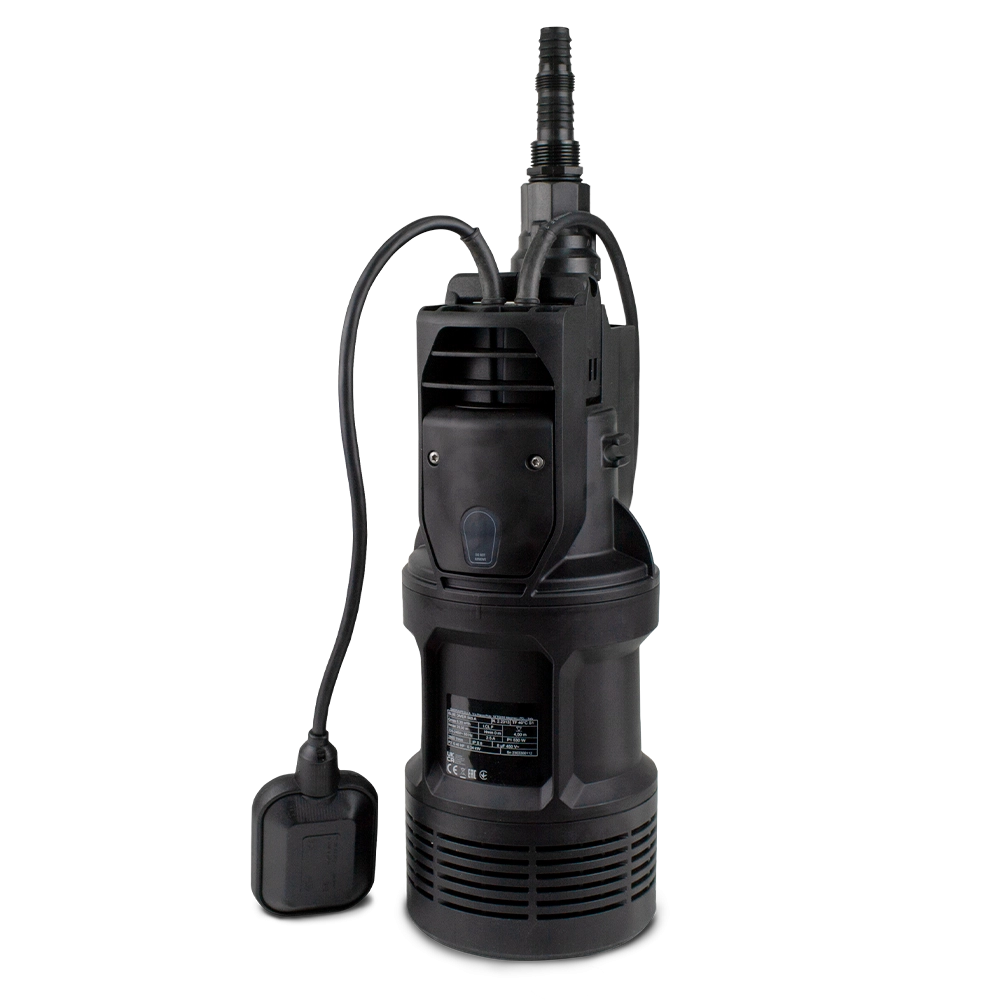

Submersible pump for AdBlue · 230 VAC · 80 l/min
021900400
  • Two-impeller submersible pump specifically developed for using in AdBlue and water
  • Anti-corrosive and rust-proof materials
  • Motor with thermal protection against overheating
  • Wear resistant shaft
  • Anti-debris stainless steel filter
  • Excellent cooling of the motor that enables the pump to operate even when it is partially submerged
  • Automatic version with start & stop float switch

TECHNICAL DATA:

  • Flow: 80 l/min
  • Voltage: 230 VCA single-phase
  • Power: 0.5 kW
  • Consumption: 4 A
  • 2,800 rpm
  • IP-68 protection
  • Pression: 2.5 bar
  • Connection: F1"
  • Minimum/maximum fluid temperature: 0 ºC - 35 ºC
  • Maximum ambient temperature: 40 ºC
  • Materials: Technopolymer and AISI 416 stainless steel
