USE

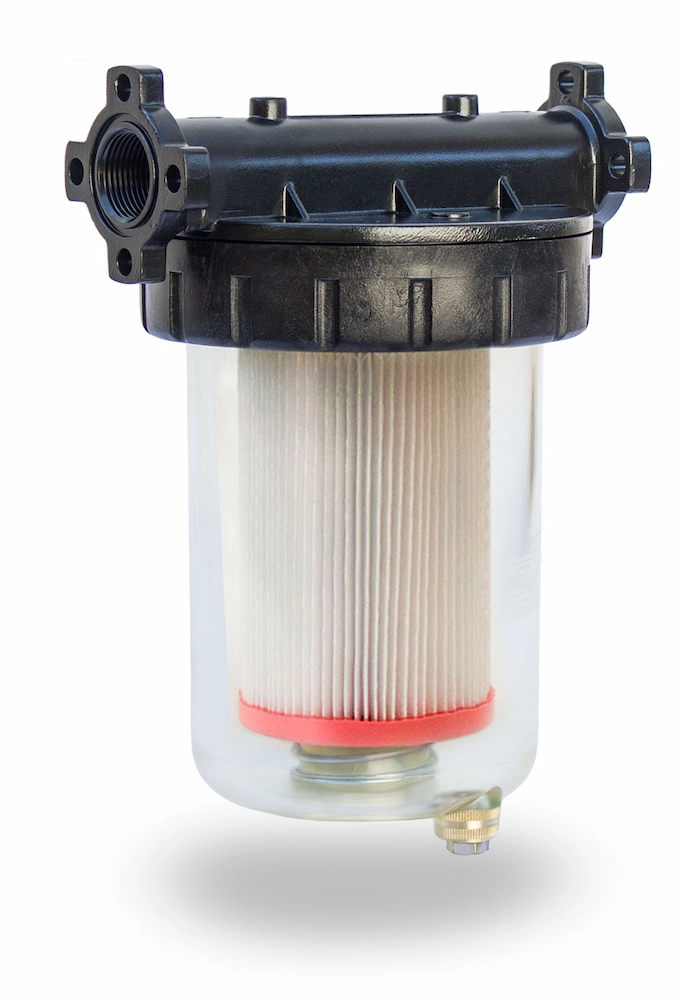

- FG-100Blue transparent microfilter for the filtration of AdBlue/DEF, anti-freeze, windscreen fluid, water and other fluids.
- Aluminium body with special AdBlue/DEF treatment
- NBR joints
- 2-litre transparent vessel which shows the impurities in its inner
- Filtering pleated cartridge of 25 μm (micron) with 0.5 m² of total surface
- The cartridge has an inner PVC protection.
TECHNICAL DATA
- AdBlue/DEF filtration: 25 μm (micron)
- Maximum transfer capacity: 105 l/min
- Top microfilter housing: Anodised aluminium
- Vessel: Transparent plastic
- Inlet/Outlet: F1" BSP flanges or threads
- Installation: in the suction or delivery of the pumping kit
- Max. working pressure: 5 bar
- Vessel breaking pressure: 8 bar
- Max. working depression: -0.5 bar
- Temperature: -5 ºC · + 35 ºC
IT IS SUPPLIED WITH
- Housing (vessel) + filtering cartridge + Key for a QUICK filtering cartridge replacing, unscrewing its ring
