TOTEM M · MECHANICAL SUPPLY KITS

Dizel Dizel
Benzin Benzin

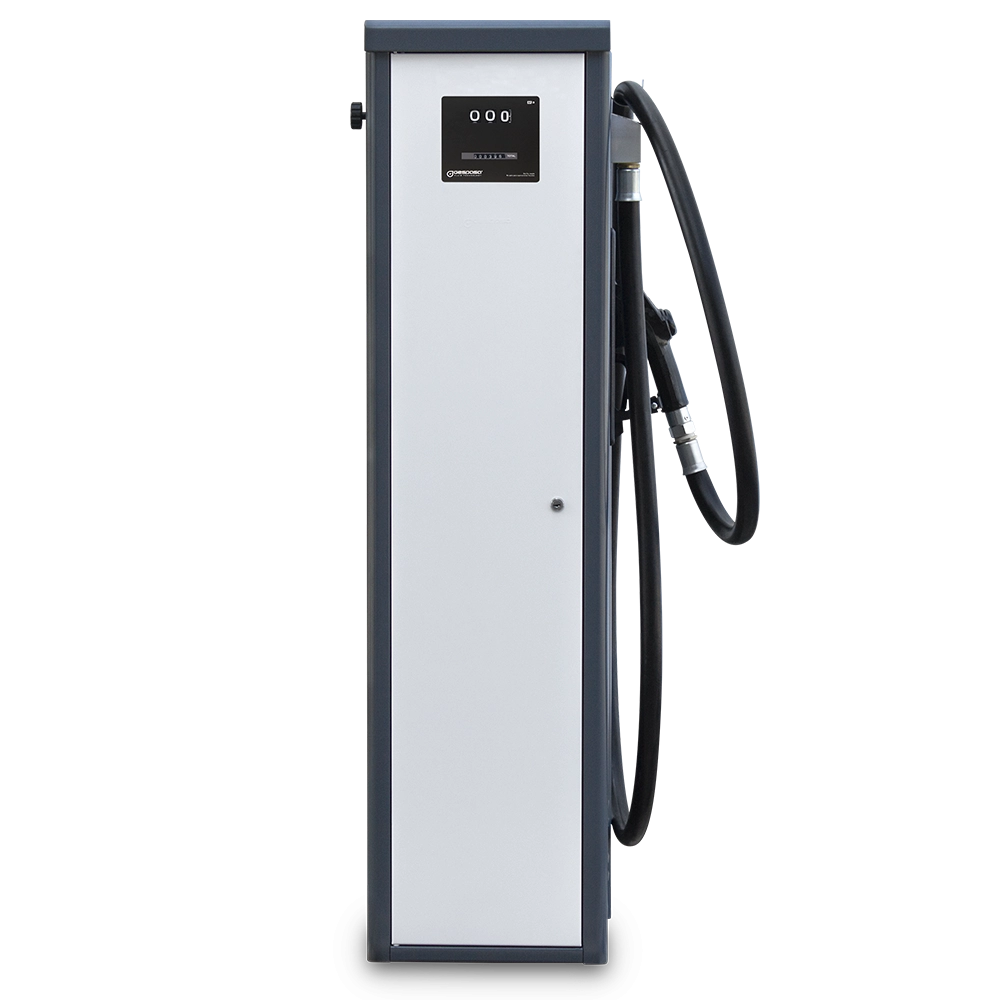

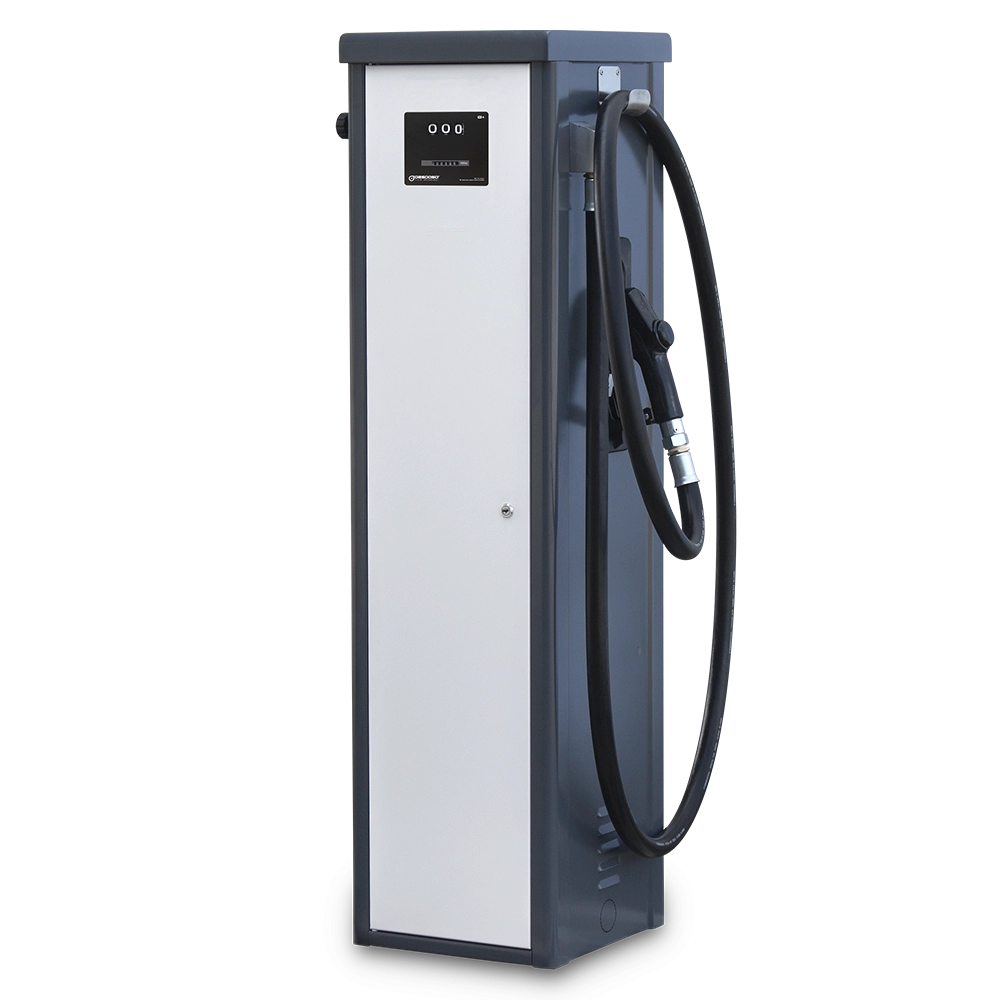

The TOTEM mechanical supply kit is suitable for the diesel and petrol supply and measurement for the own consumption vehicles.

It is composed of:

CHASSIS

  • Column for its direct fixation to the ground without bases or additional accessories
  • Made of steel
  • Special treatment to protect against corrosion and QUALICOAT CLASS 1 powder coating finishing
  • Weatherproof

PUMP

  • self-suction with self-adjusting blades

METER:

  • MG-80A · mechanical of aluminium · Accuracy: ±1 %

NOZZLE:

  • automatic

HOSE:

  • 4 m delivery diesel hose double layer, with adapters in both ends

DIESEL

TOTEM 50M-230 V · Mechanical supply kit
27150-CF00000
  • IRON-50 230 VAC  self-suction with self-adjusting blades
  • Flow rate: 40-50 l/min

Size and weight (approx.):

  • Dim.: 385x435x1,500 mm (length x width x height)
  • Weight: 50 kg
TOTEM 75M-230 V · Mechanical supply kit
27260-CF00000
  • IRON-75 230 VAC  self-suction with self-adjusting blades
  • Flow rate: 65-70 l/min

Size and weight (approx.):

  • Dim.: 385x435x1,500 mm (length x width x height)
  • Weight: 50 kg
TOTEM 100M-230 V · Mechanical supply kit
27270-CF00000
  • AG-100 230 VAC self-suction with self-adjusting blades
  • Flow rate: 75-90 l/min

Size and weight (approx.):

  • Dim.: 385x435x1,500 mm (length x width x height)
  • Weight: 57 kg

PETROL

TOTEM 50M-230 V Ex · Mechanical supply kit
27170-CF00000

Size and weight (approx.):

  • Dim.: 385x435x1,500 mm (length x width x height)
  • Weight: 50 kg
TOTEM 800M-230 · Mechanical supply kit
27180-CF00000

Size and weight (approx.):

  • Dim.: 385x435x1500 mm (LxWxH)
  • Weight: 59 kg
OPTIONAL:
- FG-100 microfilter kit (TOTEM 50/75/100 indoors)
27231
