Yanacaq / Static Tanks / FUELTANK FM4900C

FUELTANK FM4900C

6,000 litres

Dizel Dizel

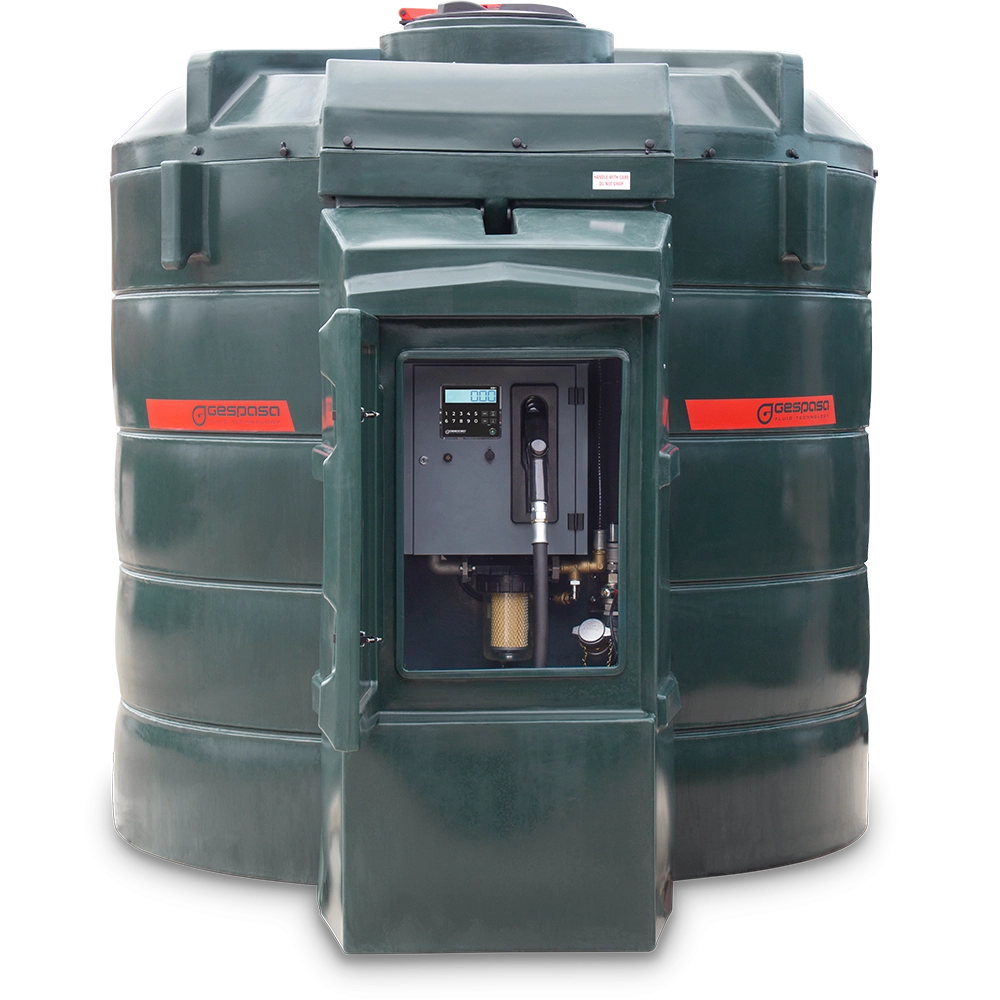

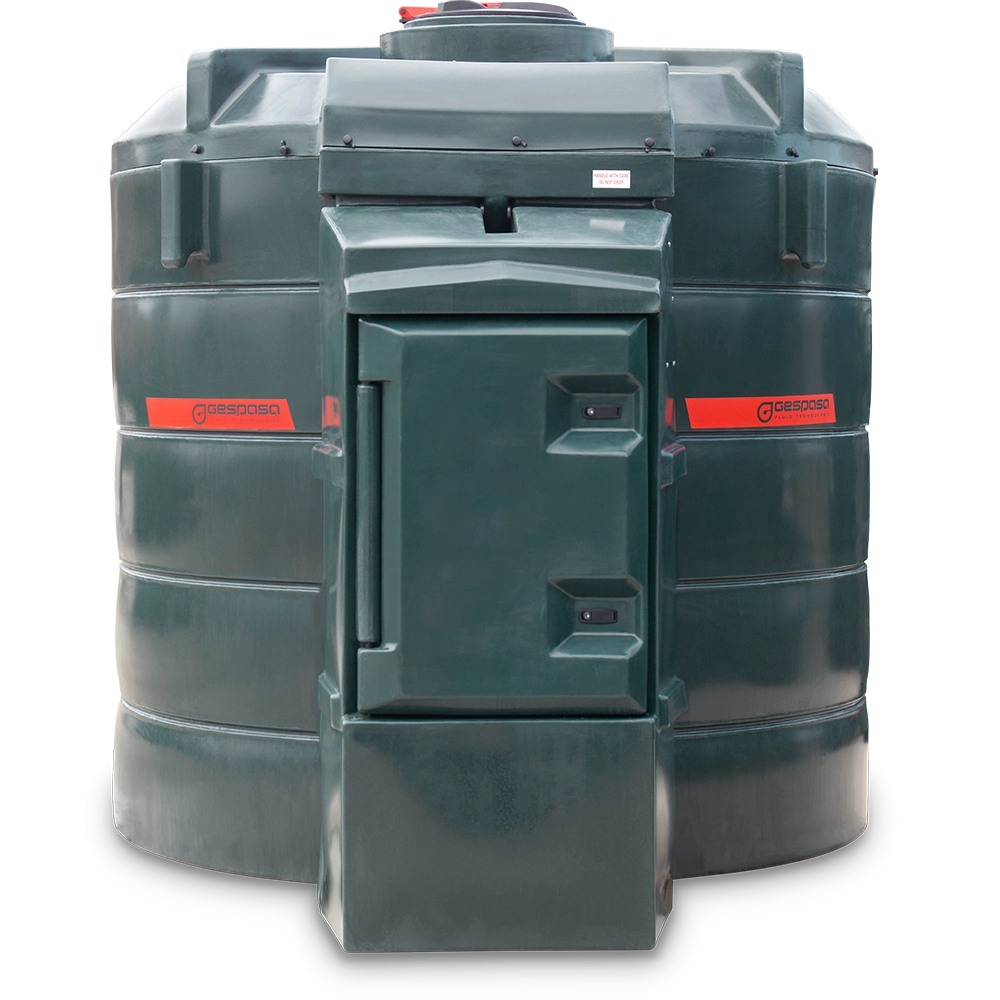

FM4900C · FuelTank autonomous supply unit of 6,000 litres
384100400
  • This kit is designed to store and supply fuel in a secure and effective way.
  • Material: Made of high quality polythene. UV and high temperature resistance
  • Maximum protection with possible leaks that could damage the environment. Unlike the sheet tanks, its appearance and properties are more lasting.
  • The GESPASA supply kit is well-protected in the booth with lock. This prevents the access to non-authorised personnel and also reduces all type of problems. The kits are protected against the inclemency of the weather.
  • Transport: It is designed for an easy handling with a forklift or a crane, when it is empty.
  • This kit is manufactured according to ISO 9001:2000.

Standard equipment:

  • Suction pipe resistant to diesel with mesh filter
  • Filling and inspection points of the fuel tank blocked with lock
  • Access to the supply kit also with lock
  • RC overfill gauge
  • Tank filling through 2” displaced charge with shut-off valve and check valve, retention basin to avoid a possible spillage in the ground.

TECHNICAL FEATURES

  • Nominal capacity: 4,900 litres
  • Full capacity: 6,342 litres
  • Inlet diameter: 382 mm

Size and weight (approx.):

  • Dim.: 3,300x2,400x2,400 mm (LxWxH)
  • Weight: 412 kg
Supply kits

The FuelTank containers can be supplied with a whole variety of GESPASA supply kits.

Please, consult them with us to select the best supply kit for your application.
