Mobile Tanks
Yanacaq / Mobile Tanks / MOBILTANK

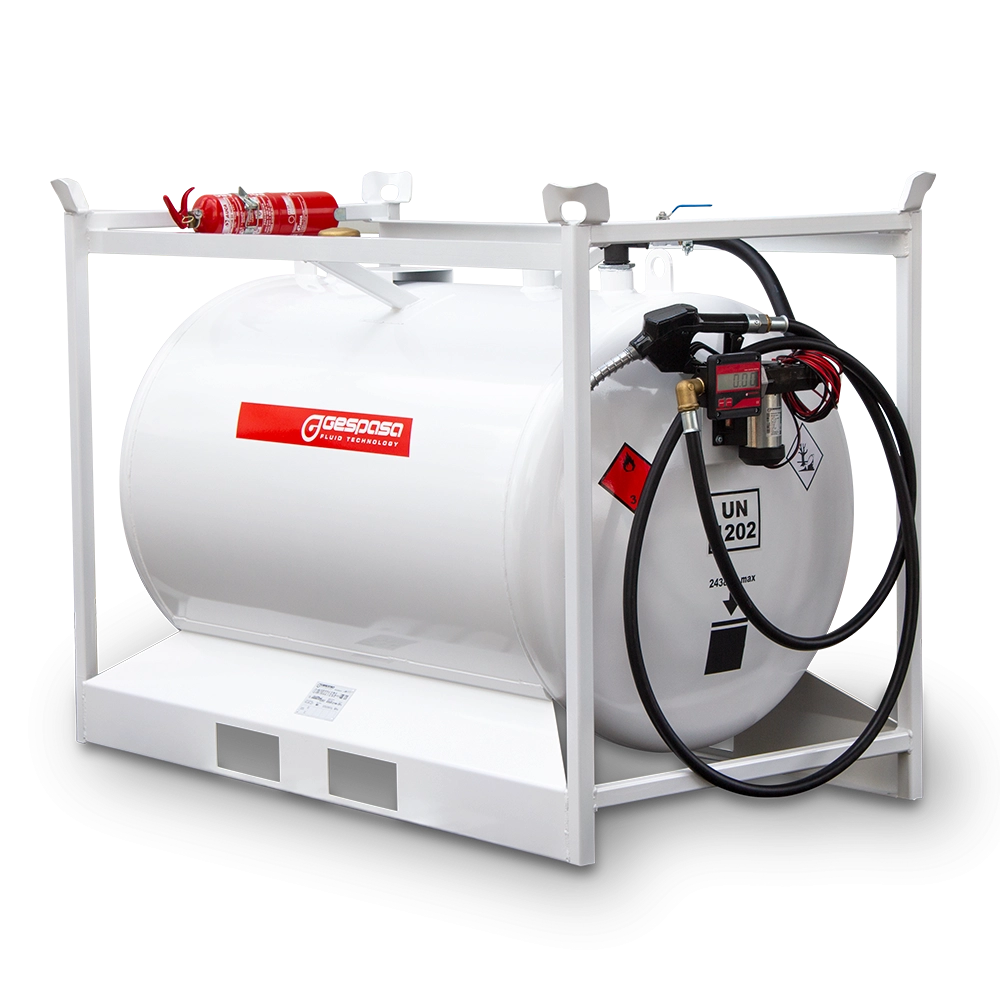

MOBILTANK

350 · 460 or 960 litres

Dizel Dizel
Benzin Benzin

APPLICATION

  • Metallic tanks for the road fluid transport
  • Built in carbon steel and two-component epoxi external paint with maximum protection against corrosion.
  • GRG (ADR) tanks are approved for the carriage of petrol, diesel, kerosene, fuel for aviation turbine motor, glues, inks, mineral oil, crude oil and resine in solution in non simultaneous way.

OFFICIAL APPROVAL

The MobilTanks are approved according to:

  • European Agreement concerning the International Carriage of Dangerous Goods by road (ADR 2013)
  • “Real Decreto 97/2014” of February 14th, which regulates the Spanish transport of the Dangerous Goods.

COMPOSED OF:

  • Shock proof and anti-roll protective steel frame
  • 2" safety and emergency vent valve, according to regulations
  • Ball valve installed on the suction point
  • Prefilter on the suction point to protect the supply kit.
  • Loading 2” tube
  • F2” free connection
  • 1/2" lower drain valve
  • 3-kg fire extinguisher
  • Lifting lugs for balanced lifting from the top, including when fully loaded.
  • It allows using a Forklift on 4 sides.
  • It can be provided with a GESPASA fuel transfer unit installed inside the protective steel frame (optional).
MOBILTANK 350 litres
353300200
Size and weight (approx.):
  • Dim.: 1,200x792x1,025 mm (LxWxH)
  • Weight: 121 kg
MOBILTANK 460 litres
353400100
Size and weight (approx.):
  • Dim.: 1,511x792x1,025 mm (LxWxH)
  • Weight: 148 kg
MOBILTANK 960 litres
353500200
Size and weight (approx.):
  • Dim.: 1,750x930x1,280 mm (LxWxH)
  • Weight: 225 kg

*Ask for optional supply kits
