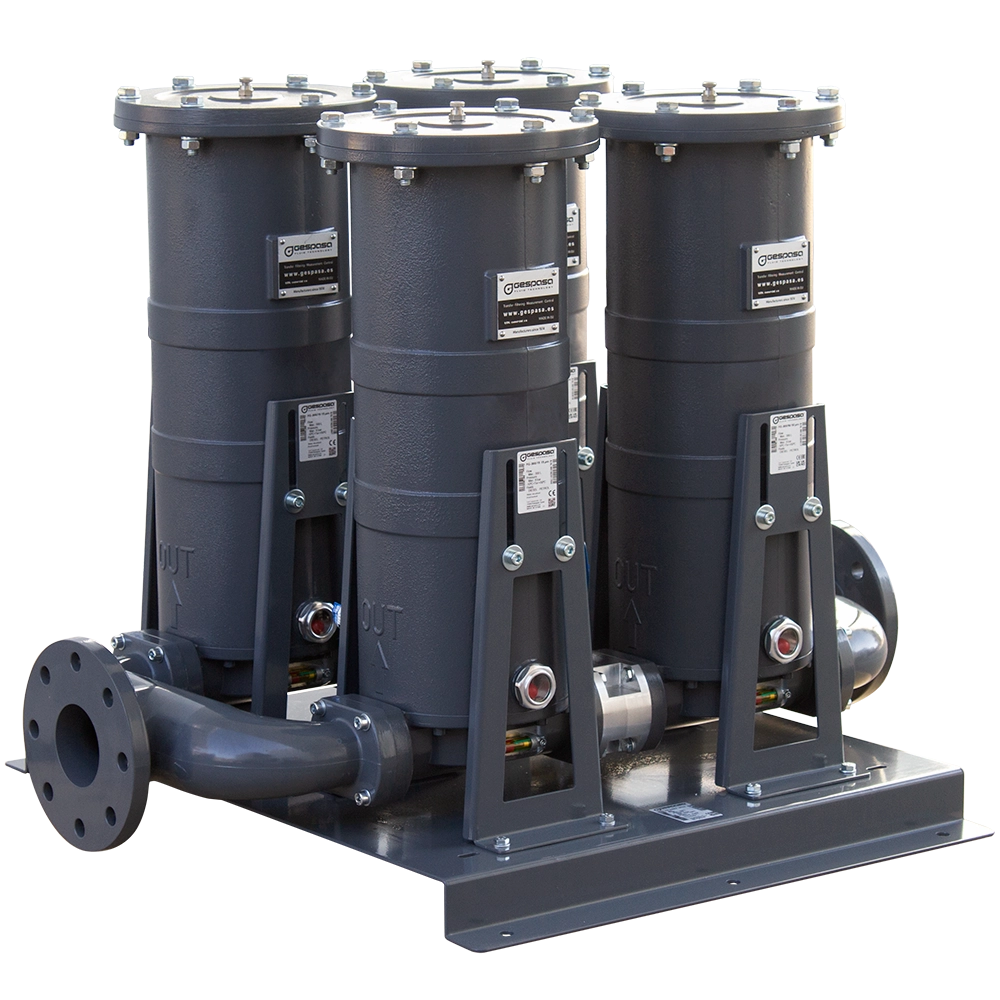

FG-700x2 FIXED FILTERING KIT

3"

Biodizel Biodizel
Dizel Dizel
Benzin Benzin
FG-700x2 Fixed Filtering Kit · 50/15 µm · 3"
66290-CF00000
FG-700x2 :: 700 l/min
  • Two-stage filtration kits designed for the fuel (diesel, petrol, kerosene and oil) filtering of all type of tanks, getting the microfiltered fluid free of impuritiesand water, both free and disolved.
  • Two-stage filtration:
    • 1st filtering element to eliminate solid particles higher than 50 µm (micron)
    • 2nd filter with monitor cartridge for water absorption (free and dissolved) and the elimination of solid particles higher than 15 µm (micron)

*ask for other micronages

The kit is composed of:

  • 1 fixed base made of steel
  • 4 FG-300 filters:
    • manual drain valves to eliminate the residual air
    • differential manometer which shows when the filter has to be replaced or cleaned
    • outlet for the filtered liquid sampling
    • inlet for the connection of compressed air to clean the filters without being disassembled

TECHNICAL FEATURES:

  • Maximum flow: 700 l/min
  • Max. working pressure: 6 bar
  • Max. housing pressure: 10 bar
  • Material:
    • Body: aluminium
    • Collecteur: steel
    • Base: steel
  • Inlet/outlet connection: Flange DIN.2576: 3"

Dimensions and weight (approx.):

  • Dim.: 945x830x770 mm (LxWxH)
  • Weight: 110 kg
