- It is suitable for particle microfiltration up to 15 µm (micron). The filtering paper is water absorbent.
- Optional: 50 µm (micron) for Biodiesel (non-absorbent)
- It is possible to drain through the manual drain valve placed in the microfilter bottom.

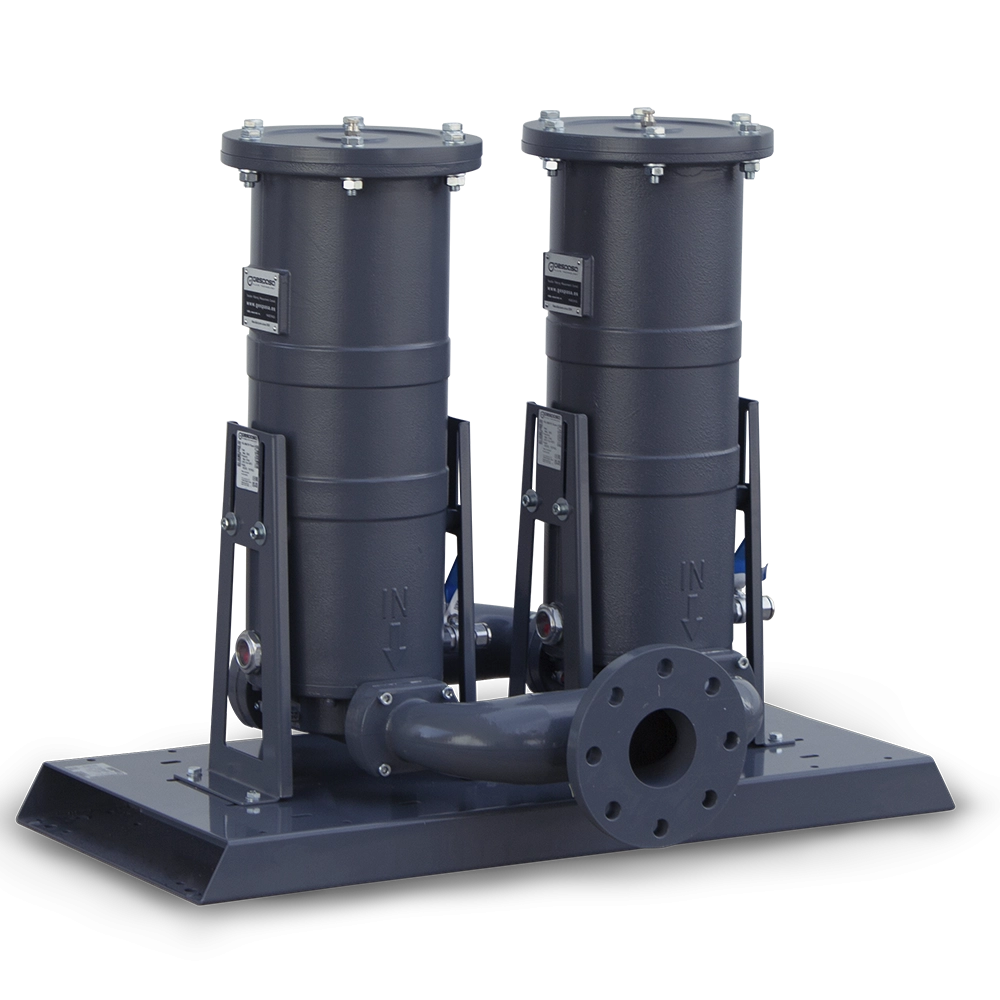

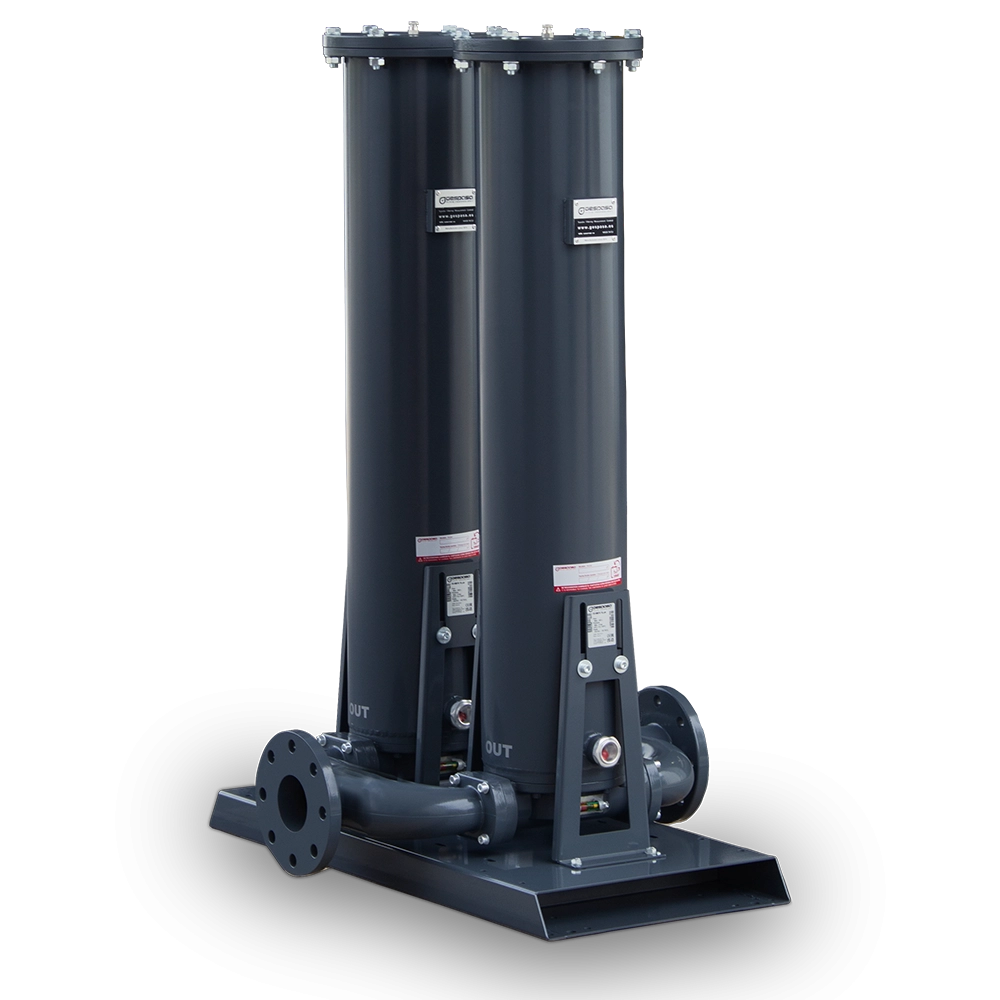

- Optional with 2 FG-300 or FG-450 elements in parallel to get more flow rate: 700 or 1,000 l/min

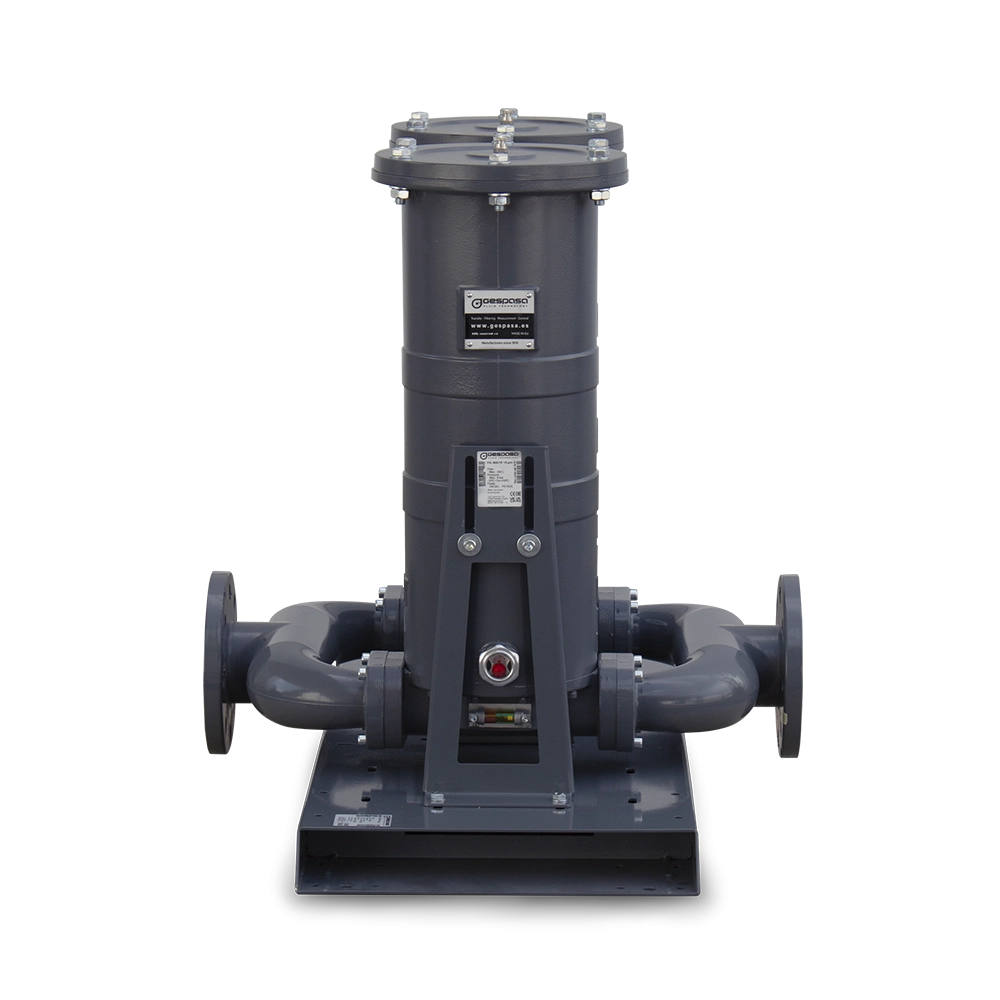

- This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.
- Differential manometer that shows when the level of the filter is exceeded.
- The microfilter is supplied with the filtering element installed.
Technical features: - Filtration: 15 µm (micron) *Ask for other models
- Capacity: 15 litres in the housing interior
- Flow: 700 or 1,000 l/min (according to the number of FG-300 or FG-450 elements)
- Microfilter cover and body: Aluminium
- Differential manometer
- Inlet / Outlet Connections: 3"
- Manual lower drain valve
- Installation: in the suction or delivery of the pumping kit
- Maximum operating pressure: 6 bar
- Maximum housing pressure: 10 bar
Dimensions (approx.):
- FG-700: 900x650x775 mm (LxWxH)
- FG-1000: 900x650x1,230 mm (LxWxH)
