Microfilters
Yanacaq / Microfilters / FG-450

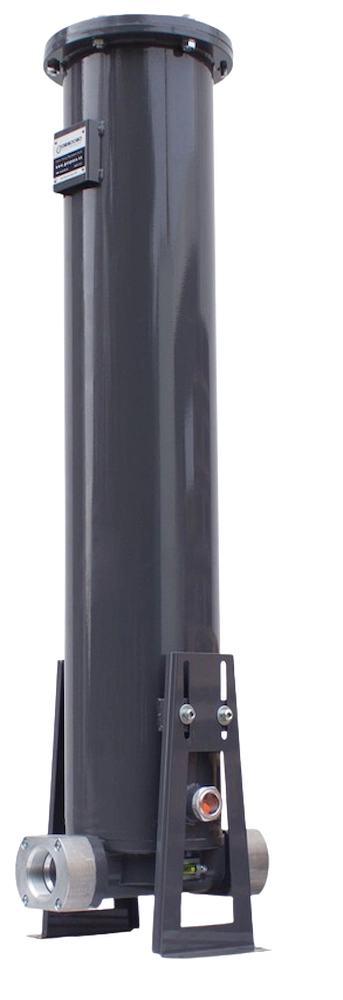

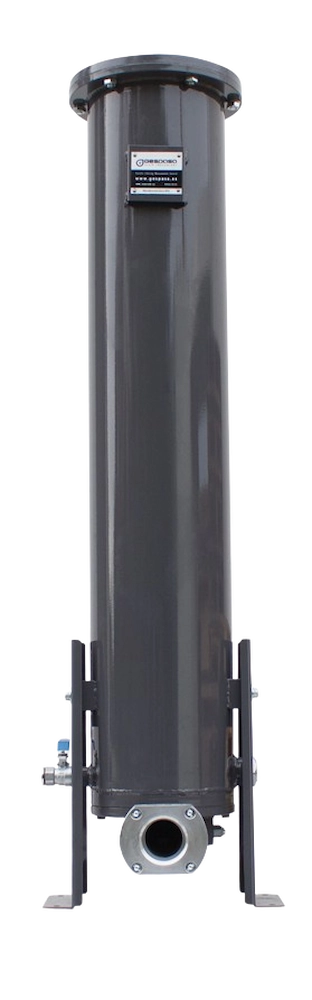

FG-450

3 · 5 · 15 or 50 µm 450 l/min · F2"

Biodizel Biodizel
Dizel Dizel
Benzin Benzin
FG-450/5 · F2” · Water absorbent microfilter · 5 µm
66370-CF00002
FG-450/15 · F2” · Water absorbent microfilter · 15 µm
663700000
FG-450/50 · F2” · Microfilter · 50 µm
663700100

More capacity, better filtration!

The FG-450 filter uses the same parts as the FG-300 microfilter model. Two cartridges in the same casing. This multiplies the durability of the cartridges when working at lower pressure, and improves the filtration capacity.

- Longer time before replacing cartridges.

- Higher durability of each cartridge. By having a higher capacity housing, the filters work at lower saturation per second. This results in the full utilization of the entire surface of the filter and/or absorbent paper.

- Better filtration. The larger the filter surface, the better filtration.

  • It is suitable for particle microfiltration from 3 to 15 µm (micron) (the filtering paper is water absorbent) or 50 µm (micron). It is possible to drain through the manual drain valve placed in the microfilter bottom.
  • This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.
  • Differential manometer that shows the filter saturation level
  • The microfilter is supplied with the filtering element installed.

TECHNICAL FEATURES

  • Filtration
    • 3 µm (micron) · water absorbent (mod. FG-450/3)
    • 5 µm (micron) · water absorbent (mod. FG-450/5)
    • 15 µm (micron) · water absorbent (mod. FG-450/15)
    • 50 µm (micron) (mod. FG-450/50)
  • Capacity: 30 litres in the housing interior
  • Flow: 450 l/min
  • Microfilter cover and heading: Aluminium
  • Body made of AISI-304 stainless steel
  • Differential manometer
  • Inlet/Outlet Connections: F2" BSP or flange
  • Manual lower drain valve
  • Superior drain valve to eliminate the inner air of the filter
  • Installation: in the suction or delivery of the dispenser
  • Maximum operating pressure: 6 bar
  • Maximum housing pressure: 10 bar

Size and weight (approx.):

  • Dim.: Ø254x312x1150 mm (Ø x base x height)
  • Weight: 27 kg
