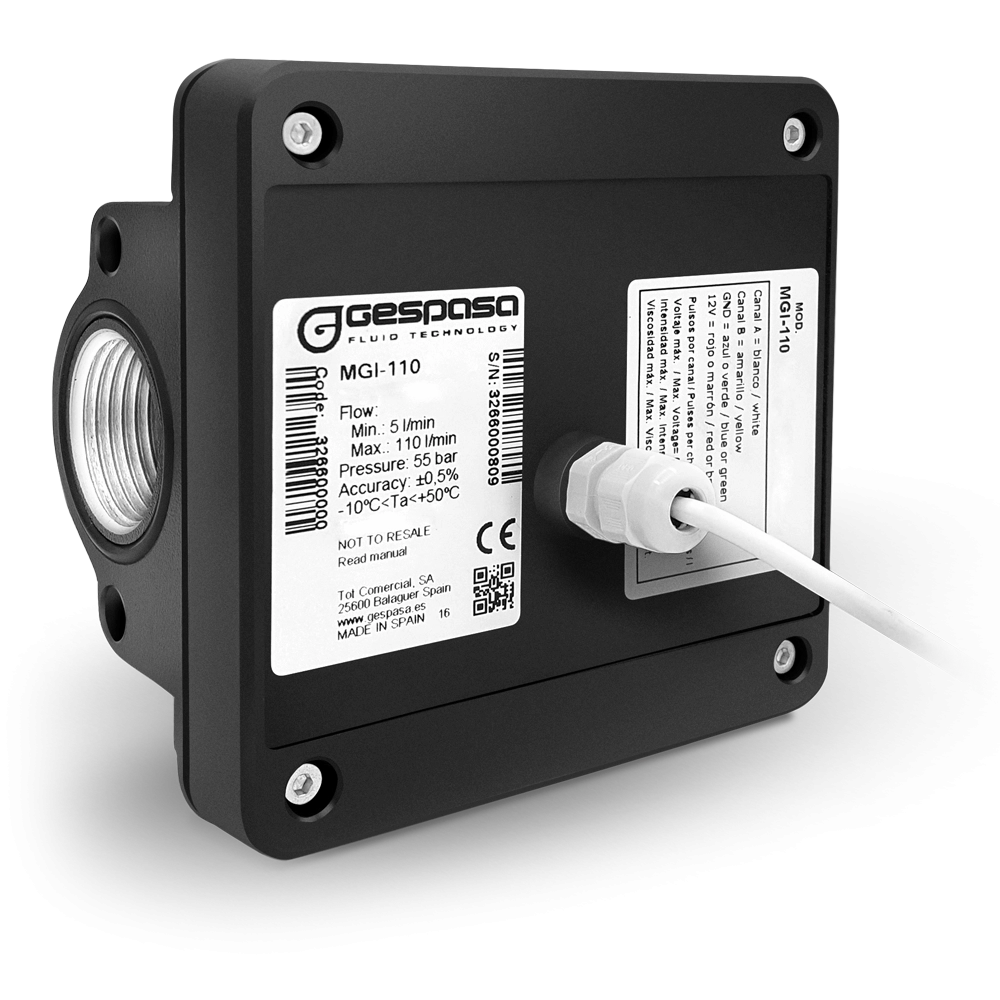

MGI-110 · PULSER

±0.5% · F1" BSP

Lubricant Lubricant
Dizel Dizel
  • Pulser for its in-line assembly, making easier the exact information of the fluid management and control systems.
  • For private use
  • It gives pulses to an external electronics.
  • Suitable for diesel and lubricant measurement

Technical data:

  • Flow (approx.):
    • 5-110 l/min (diesel)
    • 5-80 l/min (lubricant)
  • Viscosity: 2-2000 cSt
  • Accuracy: ±0.5 %
  • Max. pressure loss: 0,3 bar (diesel)
  • Max. pressure: 55 bar
  • Min./max. temperature with Reeds: -10 ºC / +90 ºC
  • Min./max. temperature with Hall Effect: -10 ºC / +50 ºC
  • Maximum Humidity: 95 H.R.
  • Noise level: LeqA < 70 dBA
  • Two channels: 41 pulses per litre and channel
  • Connection through thread or flange: F1" BSP. Direct connection to the GESPASA pumps. Optional: flanges with thread of 1"
MGI-110 · Pulser · 180º Reed (standard model)
32650

- Max. voltage: 28 VDC

- Max. power: 8 W

- Max. intensity: 100 mA

MGI-110 · Pulser · 90º Reed
32651

- Max. voltage: 28 VDC

- Max. power: 8 W

- Max. intensity: 100 mA

MGI-110 · Pulser · 90º Hall Effect
32660

- Max. voltage: 5-24 VDC

- Max. power: 0.15 - 0.72 W

- Max. intensity: 30 mA

Size and weight (approx.):
  • Dim.: 123x90x123 mm (length x width x height)
  • Weight: 1.1 kg
