MG-84A · MECHANICAL

15-90 l/min · ±1 %

Dizel Dizel
Benzin Benzin

Yeni

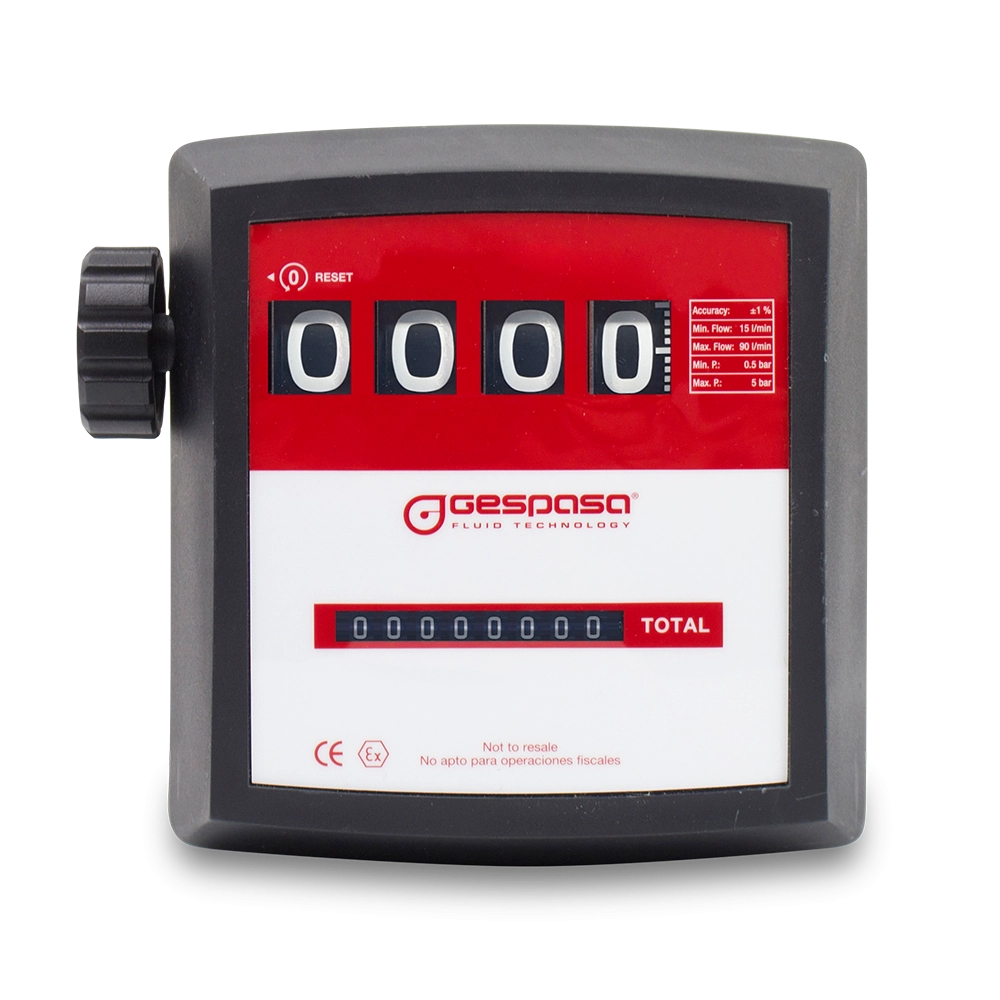

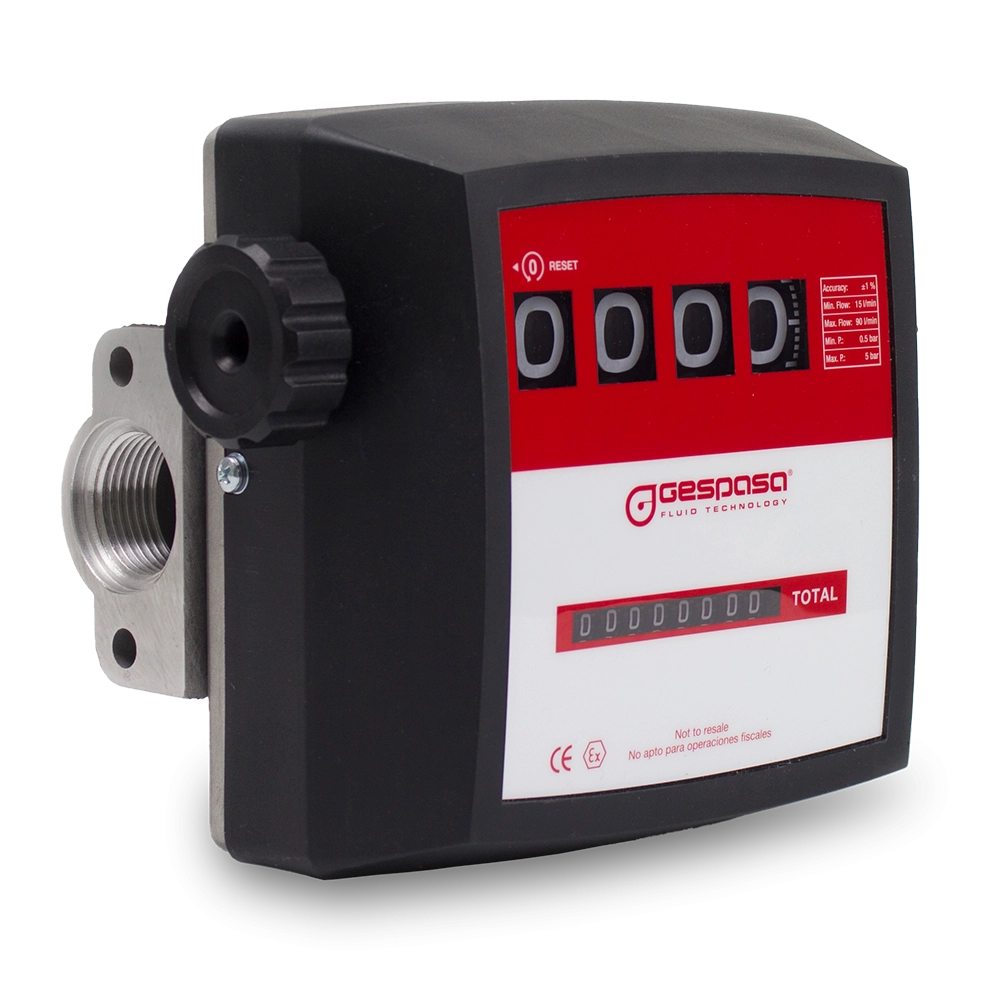

MG-84A · 4-digit mechanical aluminium meter
32360-CF00000
MG-84A · 4-digit mechanical aluminium meter with Viton joints
32370-CF00000

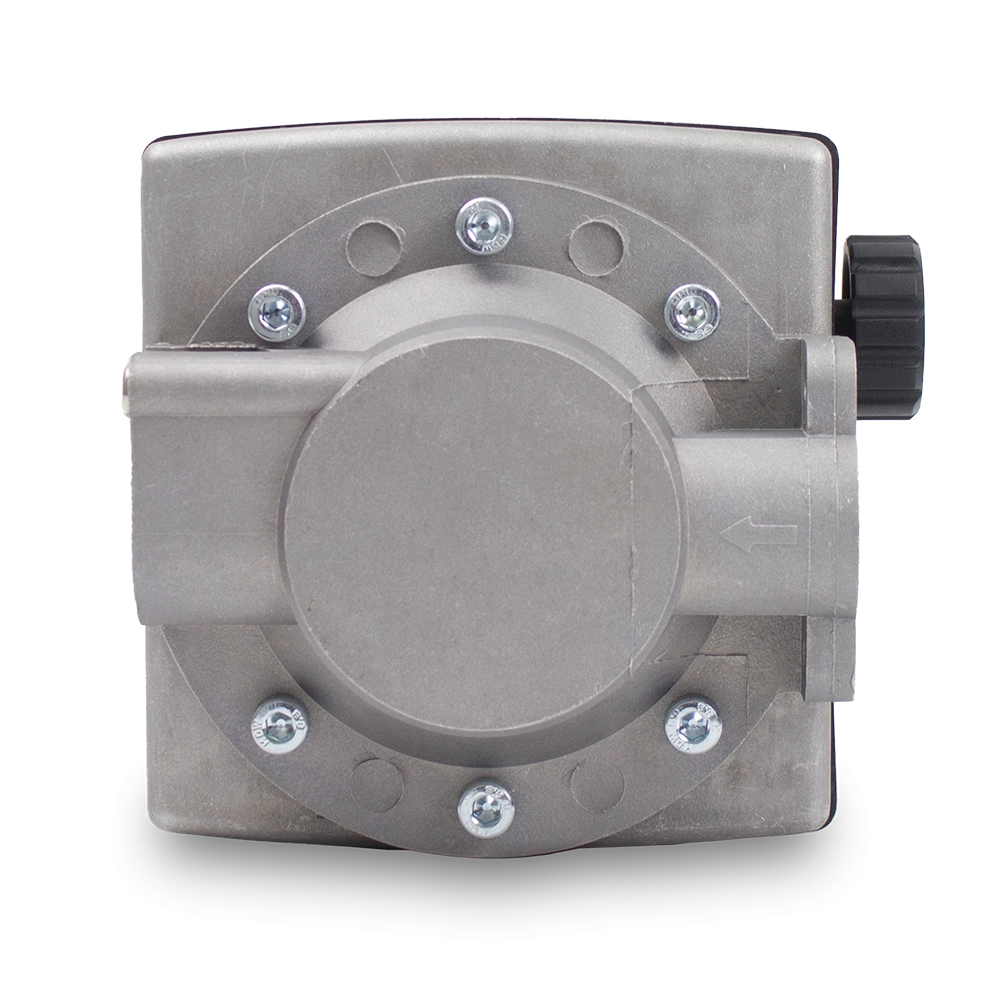

  • Aluminium body
  • Made of aluminium and high quality plastic materials. Its measuring chamber is fireproof of oscillant disc and it allows to transfer any type of hydrocarbon liquids (please, consult other liquids).
  • Flow: 15-90 l/min
  • Accuracy: ±1 %
  • Partial indicator of 4 digits and totalizer of 8 digits
  • Maximum operation pressure: 5 bar
  • Resistance pressure: 15 bar
  • Ambient temperature: -10 ºC / +60 ºC
  • ATEX IIG Category
  • Protection mode: own supply: Ex h IIB T5 Gb
  • Polyamide + Fibreglass housing
  • Inlet/outlet Connections: 1" GAS (BSP)
  • Inlet connection through threads or flanges
  • For private use, not suitable for fiscal operations

Size and weight (approx.):

  • Dim.: 180x132x165 mm (length x width x height)
  • Weight: 1.95 kg

Accessories

- Filter-sieve of 350 µm (micron) Ø33 mm
460000003
- MF1" PA + fibreglass adapter with BSP long thread
320004018
- NBR Ø24x3.5 mm joint
803100022
- MF1" PA+fibreglass adapter with BSP short thread with STAINLESS 350 µm (micron) sieve
320004117
- Filter FUP-1 FF1" GAS (BSP) of 350 µm (micron)
66030
- M1" long union flange kit in PA+Fibreglass
800003027

4 DIFFERENT POSITIONS
