Yanacaq / Meters / MG-80 · MECHANICAL

MG-80 · MECHANICAL

15-90 l/min · ±1 % · F1"

Adblue/Def Adblue/Def
Dizel Dizel
Benzin Benzin

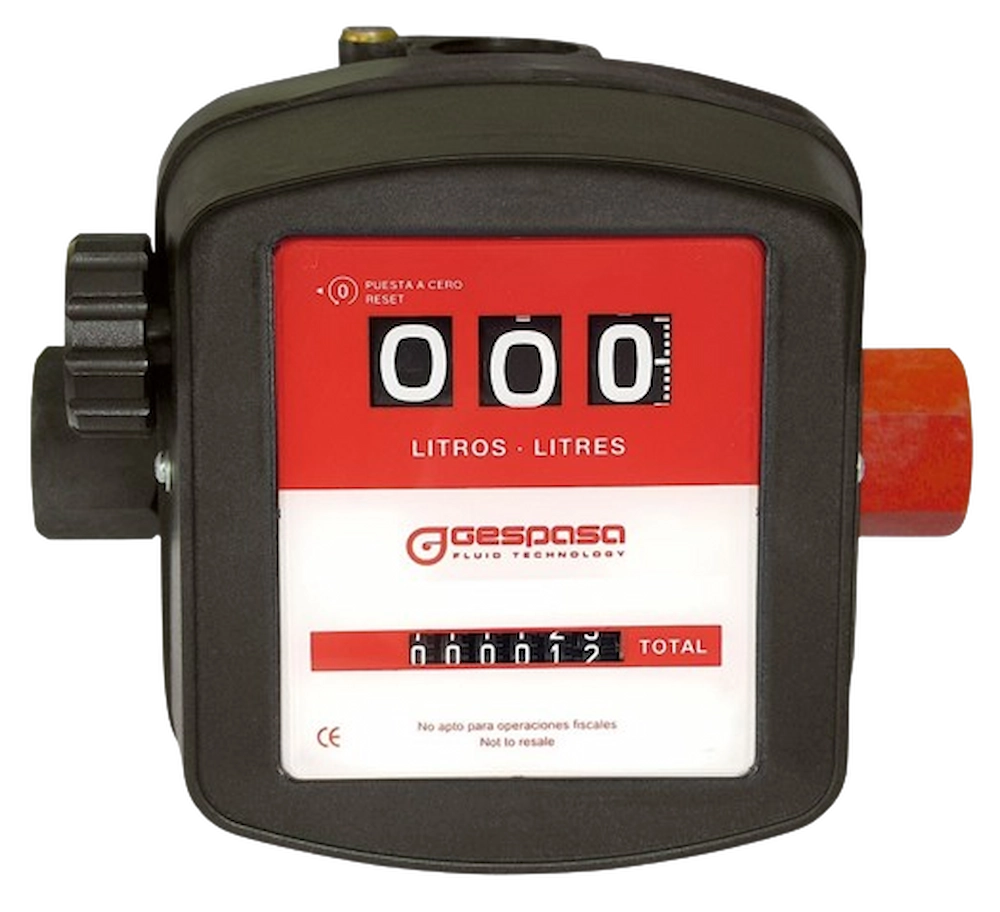

MG-80 · Mechanical meter
32000-CF00000
MG-80V · Mechanical meter with viton joints
32070-CF00000
  • Fireproof measuring chamber with oscillant disc
  • Flow: 15-90 l/min
  • Accuracy: ±1 %
  • Partial indicator of 3 digits and totalizer of 6 digits
  • Maximum operation pressure: 3,5 bar
  • Maximum temperature: 60 ºC
  • Minimum temperature: -10 ºC
  • Polyamide + Fibreglass housing
  • Connection 1" GAS (BSP) with 3 inlets and 2 outlets
  • It is supplied with 2 additional Male/Female 1" GAS (BSP) adapters (other threads under order). The 1" GAS (BSP) red adapter has built-in the filter-sieve of 350 µm (micron).
  • It is suitable for hydrocarbon liquid (please, consult other liquids).
  • For private use, not suitable for fiscal operations

Size and weight (approx.):

  • Dim.: 150x150x170 mm (length x width x height)
  • Weight: 1.6 kg

Accessories

- Filter-sieve of 350 µm (micron) Ø33 mm
460000003
- MF1" PA + fibreglass adapter with BSP long thread
320004018
- NBR Ø24x3.5 mm joint
803100022
- MF1" PA+fibreglass adapter with BSP short thread with STAINLESS 350 µm (micron) sieve
320004117
- Filter FUP-1 FF1" GAS (BSP) of 350 µm (micron)
66030
- M1" long union flange kit in PA+Fibreglass
800003027
