TLC · Tank Level Control

Level of your mobile tanks

Dizel Dizel
Benzin Benzin

Level probe for mobile vehicle tanks or static tanks

TLC-485
TLC-Bluetooth Ex

  • Control the fluid level of your tanks fuel from any device with internet connection.
  • Set up and receive automatic alarms in your email.

FUNCTION

  • Perform the periodic measurement of the fluid level in a tank.
  • Consult the levels through www.dieselplus.net or through the “DieselPlus Tanks” App, available on Android and IOs.
  • Configure automatic level alarms in your email: filling alarm, minimum level alarm, irregular emptying alarm, etc.

APPLICATION

  • TLC is intended for the exact measurement of fuel volume in vehicle tanks or fixed installations. The fuel level sensor allows to determine the current volume and the change of the volume (entrance or extraction) of fuel in the tank.
  • TLC is used as part of the monitoring systems connected to www.dieselplus.net
  • Being part of the monitoring system www.dieselplus.net, it allows to receive reliable data of the current amount of fuel in the vehicle tank and to detect cases of fuel theft from the tank.
  • CONNECTIVITY
    You can connect up to 16 TLCs to a single Tank Modem Plus.
  • The TANK MODEM PLUS communicates by GPRS. Consult the data from www.dieselplus.net or from the "DieselPlus Tanks" App installed on your smartphone.
  • DieselPlus allows:
    • Reading of tank levels
    • Multiaccess from different devices
    • Receive reports automatically of the status of the tanks in your email
    • Minimum level alarms
    • Filling alarms
    • Maximum level alarms
    • Alarms of abrupt drop in level
    • History of alarms
    • Export of data in *.csv or *.txt format
    • Group the tanks by zones, facilities,...
    • Make a record of tickets by supplier, cost, quantity,...
    • Have a supplier registry

CONTROL OF CHARGES AND DISCHARGES

  • Control of charges and discharges from the same software www.DieselPlus.net
  • With the GK-7Plus controller, installed on your supply pump and on the truck, you will register the user who supplies, where it is supplied, time, day, litres, ...
  • All the information in the same software

LEVEL READINGS

  • The TLC level system will connect to the "MODEM PLUS" with the RS485 cable.
  • A level reading is transmitted via GPRS to www.dieselplus.net every 20 minutes.

TECHNICAL FEATURES

  • Principle of Operation: Capacitive
  • Static vehicle accuracy: 0.2 % for fixed tanks or parked vehicles
  • Mobile vehicle accuracy: 1 % for moving vehicles
  • Sensitivity: 0.1 mm
  • Minimum length: up to 90 % of the initial length (70 mm)
  • Maximum length: up to 6,000 mm
  • Supply voltage: 10 - 50 V
  • Overload protection: up to 100 V
  • Temperature: from -40 ºC to + 85 ºC

VALID FLUIDS:
Fuels (non-conductive fluids)
(Not valid for conductive fluids such as water, AdBlue / DEF ...)

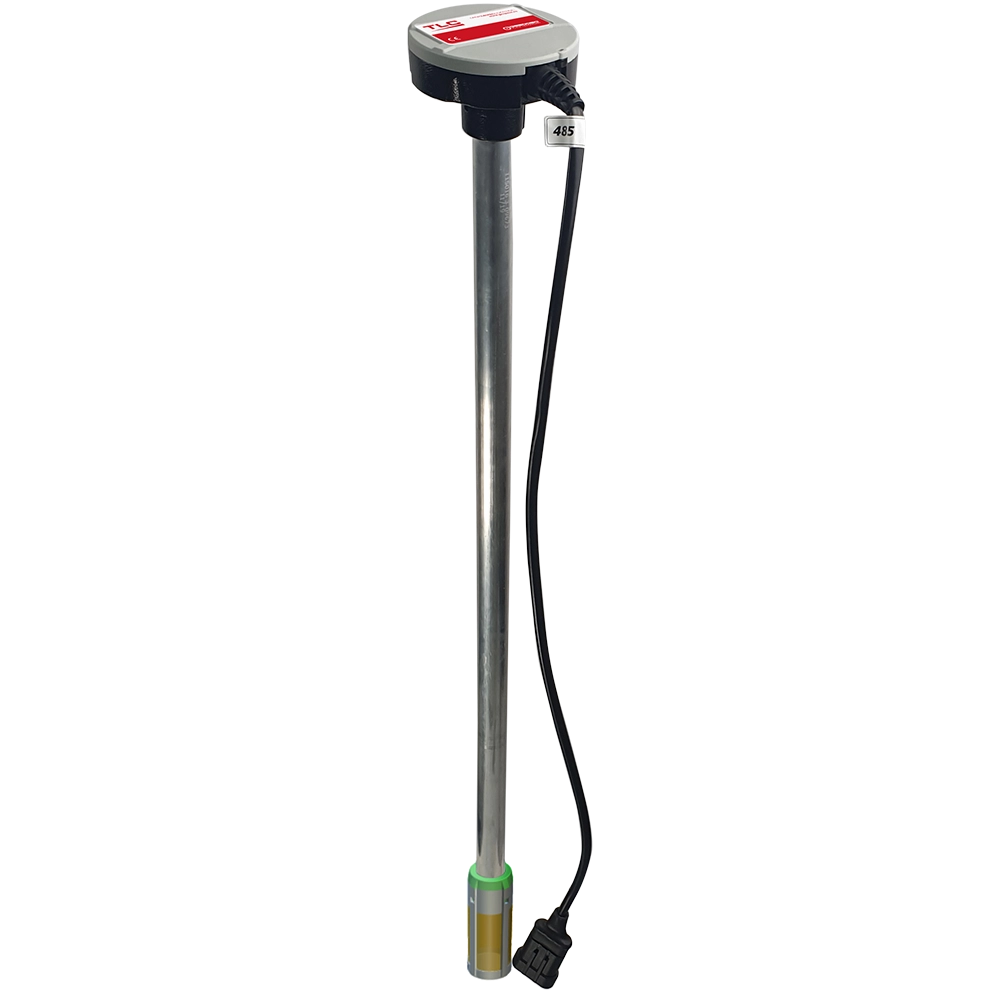

TLC-485
25830-CF00000

RS-485 cable connection between the TLC probes and the TANK MODEM PLUS. You can connect a maximum of 4 probes to the modem.

TLC-485

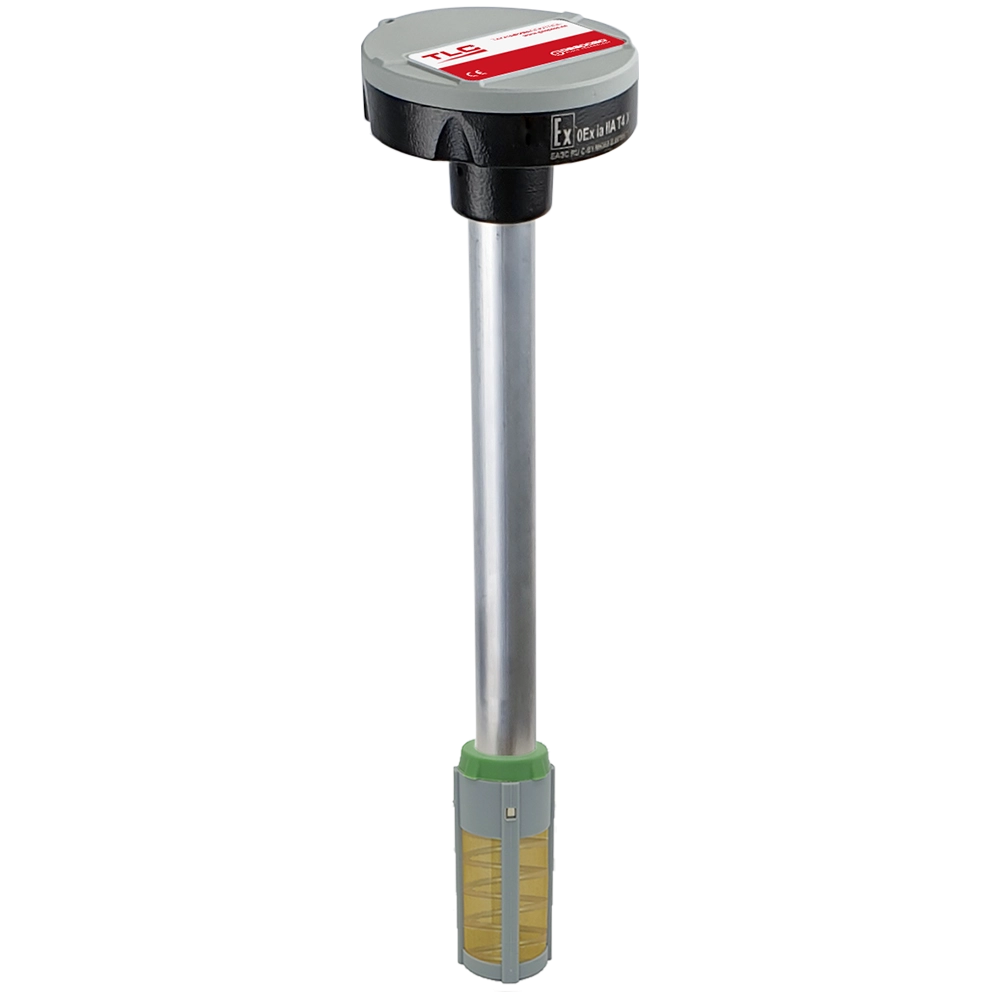

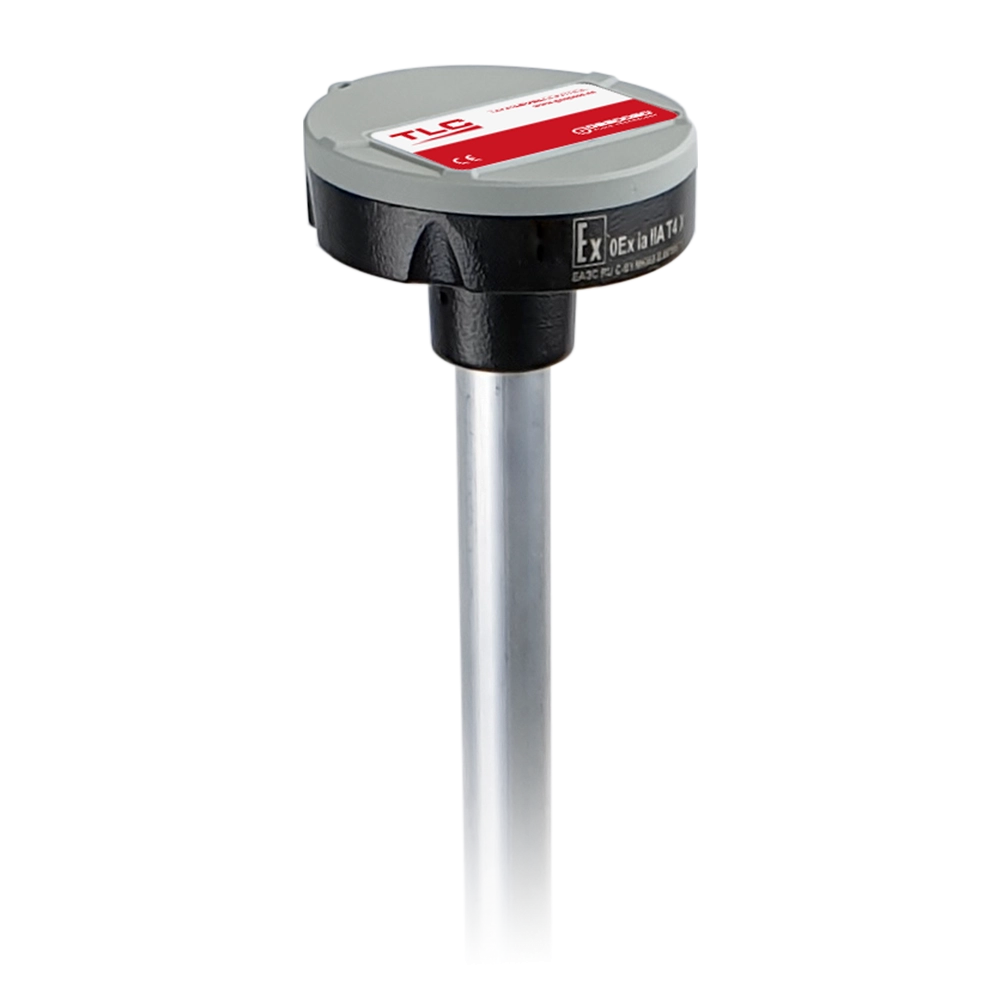

TLC Bluetooth Ex
25833-CF00000

The TLC Bluetooth probe has the same functional characteristics as the TLC-485, adding Ex certification and the connection capacity up to 16 units to the same Tank Modem Plus via Bluetooth.
For installations where a certified probe is required for explosive environments, and in installations where wiring between probe and modem is not possible, this is the option to select.

TLC Bluetooth Ex
