Industrial pump dispenser
Yanacaq / Industrial pump dispenser / STM · HIGH FLOW

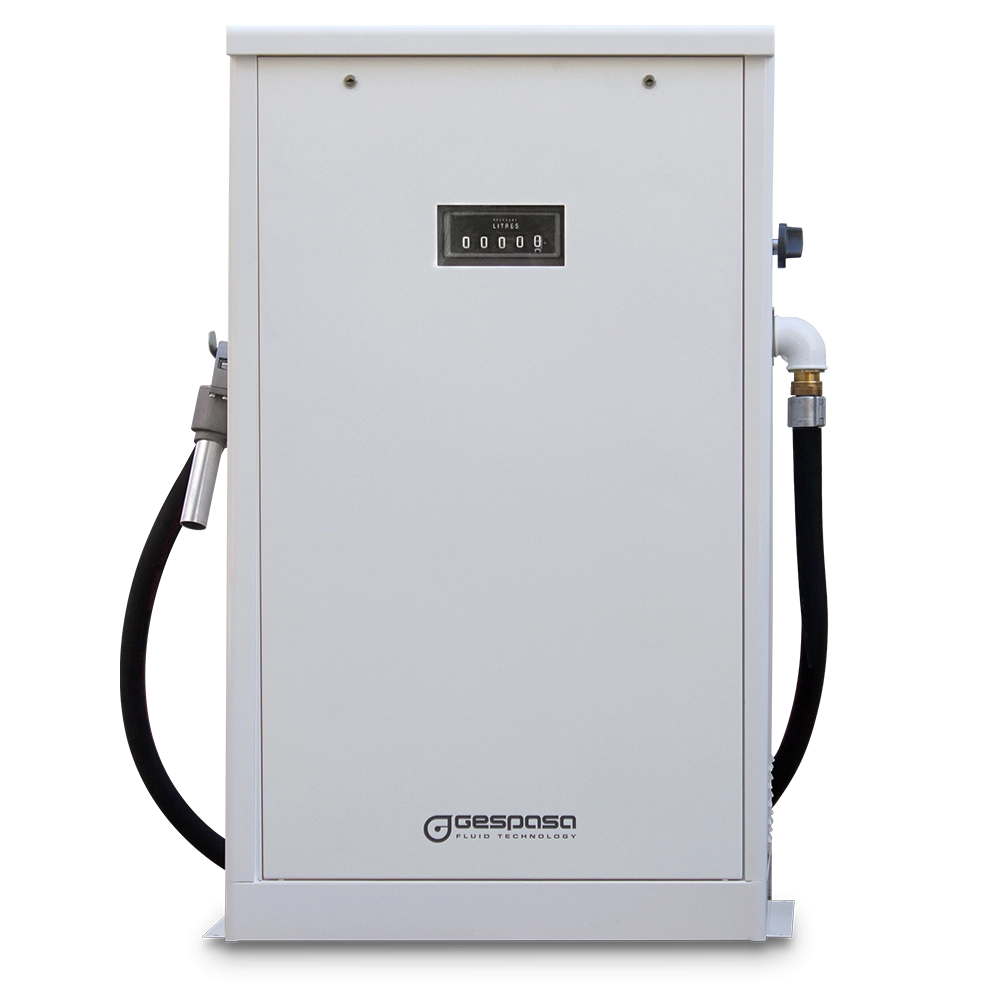

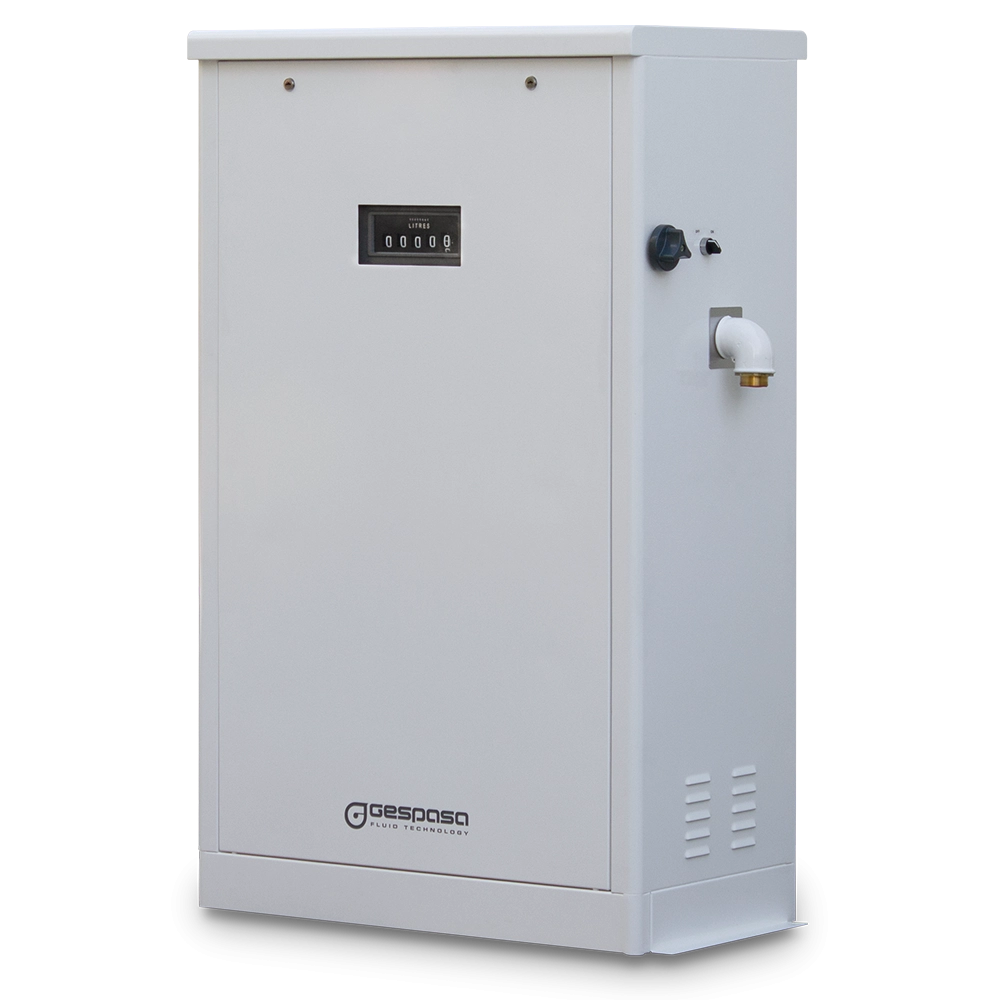

STM · HIGH FLOW

Mechanical 200 · 300 · 500 l/min · ±0.2 %

Dizel Dizel
Benzin Benzin

USE

  • Supply kit for the high flow fuel supply suitable for the diesel, petrol and kerosene installations
  • Designed for a “heavy duty use”

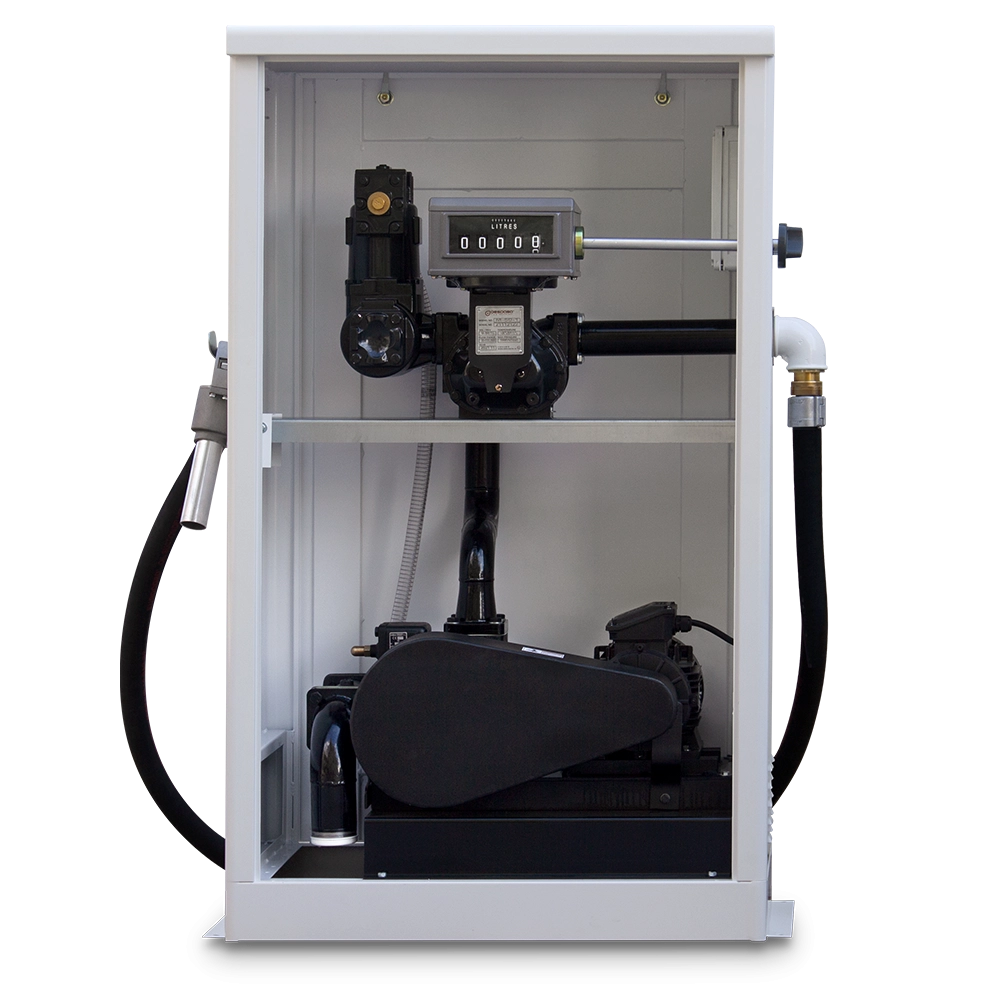

Composed of:

CHASSIS:

  • Made of steel. Brilliant epoxid paint finish · Weatherproof
  • It has built in an anchorage base.

PUMP:

  • BDP · self-suction vane pumps of high flow, self-suction, positive displacement, constant flow, noiseless and heavy-duty
    • Flow: 200 to 500 l/min

METER:

  • Volumetric mechanical meter with degasifier in order to avoid the gas measuring
  • Accuracy ±0.2 % · Repeatability: ≥0.05 %
  • Manual reset
  • Calibration system
  • High accuracy and repeatability on the wide range of flow and high accuracy with constant flow
  • Low maintenance, without metallic contact in the measuring chamber, long life service
  • Aluminium body, Viton joints, litre register. Available in gallons.
  • It includes a filter with a mesh of 80/170 μm (micron)

*It is also available the pulser version.

It is supplied with:

  • 4 m delivery diesel hose of double layer with couplings in both ends
  • PA-250 · Automatic nozzle or manual nozzle (depending on the model)

Size and weight (approx.):

  • Dim.: 900x500x1500 mm (LxWxH)
  • Weight: 233 kg
STM-200 · HIGH FLOW MECHANICAL DISPENSER · 200 l/min
26823-CF00002

Composed of:

STM-300 · HIGH FLOW MECHANICAL DISPENSER · 300 l/min
26827-CF00000

Composed of:

STM-500 · HIGH FLOW MECHANICAL DISPENSER · 500 l/min
26828-CF00000

Composed of:
