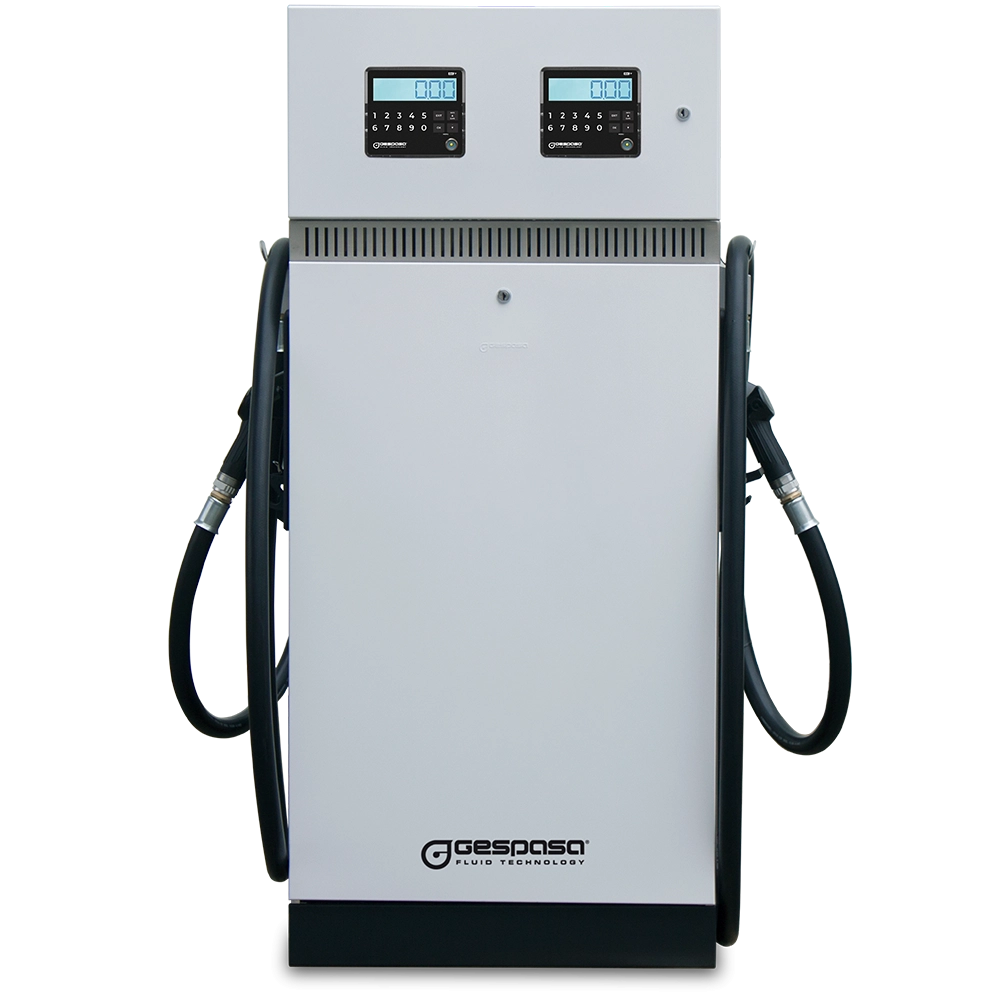

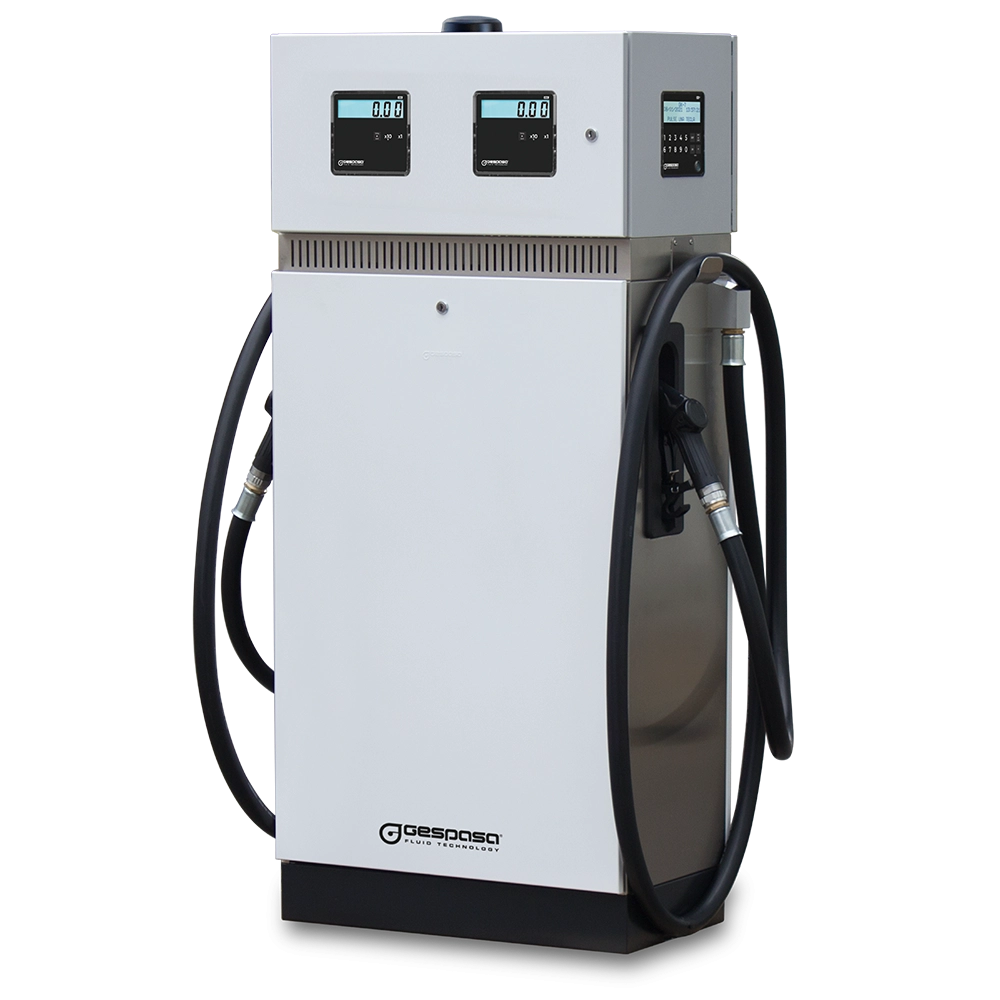

Industrial pump dispenser with GK-7 controller
Yanacaq / Industrial pump dispenser with GK-7 controller / SHK-D / SH-PlusD · TWO HOSES

SHK-D / SH-PlusD · TWO HOSES

GK-7 Control | 80 · 110 l/min

Dizel Dizel
Benzin Benzin
    • Supply kits with ATEX components, special for installations of diesel, petrol, kerosene supply.
    • This kit is composed of two high accuracy hydraulic groups and the GK-7 or GK-7Plus own consumption controller.

    Composed of:

    CHASSIS:

    • Sides in stainless steel
    • Doors made of aluminium and the remainder frame made of steel
    • Special treatment to protect against corrosion and QUALICOAT CLASS 1 powder coating finishing
    • Weatherproof

    2 HYDRAULIC GROUPS composed of:

    • Pump: Self-suction, eccentric with self-adjusting blades with gas separator. Flow: 80 or 110 l/min · Recirculation bypass valve · filter
    • Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: ±0.2 % · Pulser of 2 channels of 100 pulses per litre · Mechanical totalisator
    • EExd Motor with ATEX certificate · IP-55 protection:
      • Triphase 80 l/min · 1 kW 230/400 VAC
      • Single-phase 80 l/min: 1 kW 230 VAC
      • Triphase 110 l/min: 1.5 kW 230/400 VAC

    ELECTRONICS (x2): Electronic display

    CONTROLLER:

    • GK-7Plus: Communicate automatically and wirelessly, through 2G, to the cloud software www.dieselplus.net
    • GK-7: You will need to purchase a communication kit, which includes the necessary software and hardware to connect your dispenser to a PC

    It is supplied with:

    • 4 m delivery diesel double layer hose with 1" adapters in both ends
    • Automatic nozzle

    Size and weight (approx.):

    • Dim.: 800x400x1500 mm (LxWxH)
    • Weight: 146 kg
    Flow rate: 80 l/min
    SH-80PlusD-130 users · 500 services · triphase
    42110-CF00000
    SH-80PlusD-1000 users · 1000 services · triphase
    42110-CF00001
    SH-80PlusD-130 users · 500 services · single-phase
    42050-CF00000
    SH-80PlusD-1000 users · 1000 services · single-phase
    42050-CF00001
    Flow rate: 110 l/min
    SH-110PlusD-130 users · 500 services · triphase
    42150-CF00000
    SH-110PlusD-1000 users · 1000 services · triphase
    42150-CF00001
    Flow rate: 80+110 l/min
    SH-80/110PlusD-130 users · 500 services · triphase
    42180-CF00000
    SH-80/110PlusD-1000 users · 1000 services · triphase
    42180-CF00001
    Flow rate: 80 l/min
    SHK-80D-130 users · 500 services · triphase
    42100-CF00000
    SHK-80D-1000 users · 1000 services · triphase
    42100-CF00001
    SHK-80D-130 users · 500 services · single-phase
    42040-CF00000
    SHK-80D-1000 users · 1000 services · single-phase
    42040-CF00001
    Flow rate: 110 l/min
    SHK-110D-130 users · 500 services - triphase
    42120-CF00000
    SHK-110D-1000 users · 1000 services · triphase
    42120-CF00001
    Flow rate: 80+110 l/min
    SHK-80/110D-130 users · 500 services - triphase
    42170-CF00000
    SHK-80/110D-1000 users · 1000 services · triphase
    42170-CF00001
    (+) TICKET THERMAL PRINTER (internal)
    FE006002
    (+) PROTECTION SUNSHIELD
    FE016001
    OPTIONAL IDENTIFICATION SYSTEMS
    (+) Proximity card reader
    FE017002
    (+) Magnetic card reader
    FE017003
