High flow pumps
Yanacaq / High flow pumps / HIGH FLOW PUMPS · ATEX

HIGH FLOW PUMPS · ATEX

200-1,000 l/min

Dizel Dizel
Benzin Benzin

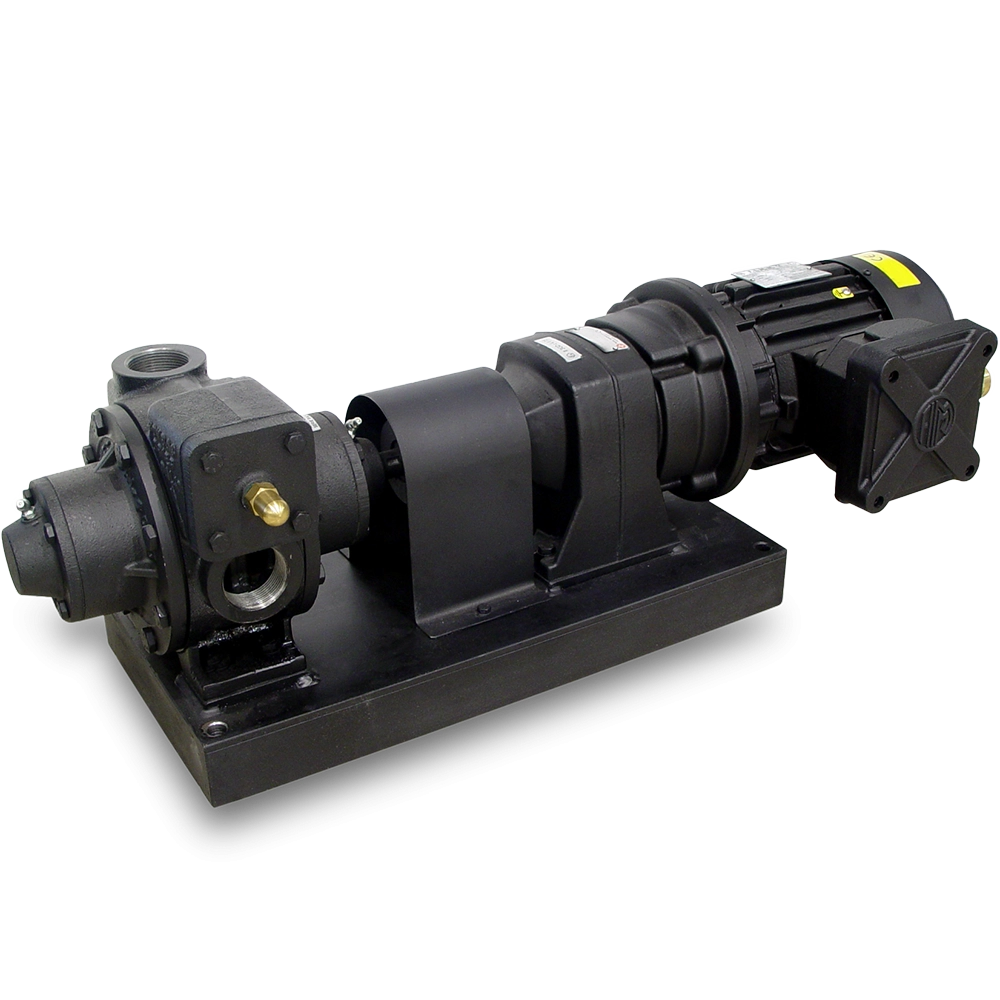

  • Bedplate vane pumps of high flow, self-suction, positive displacement, constant flow, inaudible and heavy-duty
  • The transfer is quick, uniform and inaudible.
  • The pump has built-in bypass valve.
  • It is specially intended for the transfer of high volumes, S-1 service, continuous for fuel tank charging and discharging, storage of fuel, hydrocarbon, petrol, diesel, kerosene and another non-corrosive liquid and without solid particles in suspension.
BDP-200 · F1 1/2" · Explosionproof EExd
101000000

TECHNICAL DATA

PUMP

  • Flow: 200 l/min
  • Operation pressure: 3.5 bar
  • 740 rpm
  • Connection through thread of 1 1/2"
  • Recommended diameters:
    • suction-delivery connection: Ø2"
  • Moto-pump group performance: horizontal
  • Bypass built-in

MOTOR

  • Voltage: 230/400 VAC triphasic
  • Frequency: 50 Hz
  • Powe: 2.2 kW
  • IP-55 protection
  • Condensable protection: PTC probes
  • ATEX EExd IICT5 Certificate
  • Turn speed: 1,500 rpm
  • Insulation: F Class
  • Reducer/motor coupling: flange
  • Noise level: 80 dB(A)
Size and weight (approx.):
  • Size: 880x325x285 mm (length x width x height)
  • Weight: 85.5 kg
BDP-300 · F2 1/2" · Explosionproof EExd
101200000

TECHNICAL DATA

PUMP

  • Flow: 300 l/min
  • Operation pressure: 3.5 bar
  • 400 rpm
  • Connection through weldable flange of 2 1/2"
  • Recommended diameters:
    • suction-delivery connection: Ø3"
  • Moto-pump group performance: horizontal
  • Bypass built-in

MOTOR:

  • Voltage: 230/400 VAC triphasic
  • Frequency: 50 Hz
  • Powe: 2.2 kW
  • IP-55 protection
  • Condensable protection: encapsulated
  • ATEX EExd IICT5 Certificate
  • Turn speed: 1,500 rpm
  • Insulation: F Class
  • Reducer/motor coupling: flange
  • Noise level: 80 dB(A)
Size and weight (approx.):
  • Size: 1,000x355x345 mm (length x width x height)
  • Weight: 125 kg
BDP-500 · F2 1/2" · Explosionproof EExd
101100000

TECHNICAL DATA

PUMP

  • Flow: 500 l/min
  • Operation pressure: 3.5 bar
  • 640 rpm
  • Connection through weldable flange of 2 1/2"
  • Recommended diameters:
    • suction-delivery connection: Ø3"
  • Moto-pump group performance: horizontal
  • Bypass built-in

MOTOR

  • Voltage: 230/400 VAC triphasic
  • Frequency: 50 Hz
  • Powe: 4 kW
  • IP-55 protection
  • Condensable protection: encapsulated
  • ATEX EExd IICT5 Certificate
  • Turn speed: 1,500 rpm
  • Insulation: F Class
  • Reducer/motor coupling: flange
  • Noise level: 80 dB(A)
Size and weight (approx.):
  • Size: 1,050x365x345 mm (length x width x height)
  • Weight: 148.5 kg
BDP-1000 · F3" · Explosionproof EExd
101300000

TECHNICAL DATA

PUMP

  • Flow: 1,000 l/min
  • Operation pressure: 3.5 bar
  • 640 rpm
  • Connection through weldable flange of 3"
  • Recommended diameters:
    • suction-delivery connection: Ø4"
  • Moto-pump group performance: horizontal
  • Bypass built-in

MOTOR

  • Voltage: 400/690 VAC triphasic
  • Frequency: 50 Hz
  • Powe: 7.5 kW
  • IP-55 protection
  • Condensable protection: encapsulated
  • ATEX EExd IICT5 Certificate
  • Turn speed: 1,500 rpm
  • Insulation: F Class
  • Reducer/motor coupling: flange
  • Noise level: 80 dB(A)
Size and weight (approx.):
  • Size: 1,264x420x405 mm (length x width x height)
  • Weight: 227 kg
