High flow dispensers
Yanacaq / High flow dispensers / HIGH FLOW MECHANICAL SUPPLY KITS

HIGH FLOW MECHANICAL SUPPLY KITS

200 to 1,200 l/min

Dizel Dizel
Benzin Benzin
  • High flow supply kit with mechanical meter and hose-reel.
  • Flow: from 200 to 1,200 l/min
  • Assembly:
    • with or without hose-reel
    • with or without litre preset

FEATURES

METER

  • Positive displacement meter
  • Designed for liquid measurement both in transfer and process control
  • The absence of wear, from no metal-to-metal contact inside the chamber, eliminates any deterioration in accuracy and provides a long service life
  • It has built in an air eliminator
  • High accuracy and repeatabity over the widest range of flow, superior accuracy at constant flow
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service
  • Aluminium body · Viton seal
  • Register in gallons and litres
  • It includes a strainer with a mesh of 80/170 μm (micron).
  • *The pulser version is also available.

PUMP

  • Bedplate vane pumps of high flow, self-suction, positive displacement, constant flow, inaudible and heavy-duty
  • The transfer is quick, uniform and inaudible
  • The pump has built-in bypass valve
  • Available with IP-55 or ATEX motor
WITH MESH FILTER AND DEGASSER

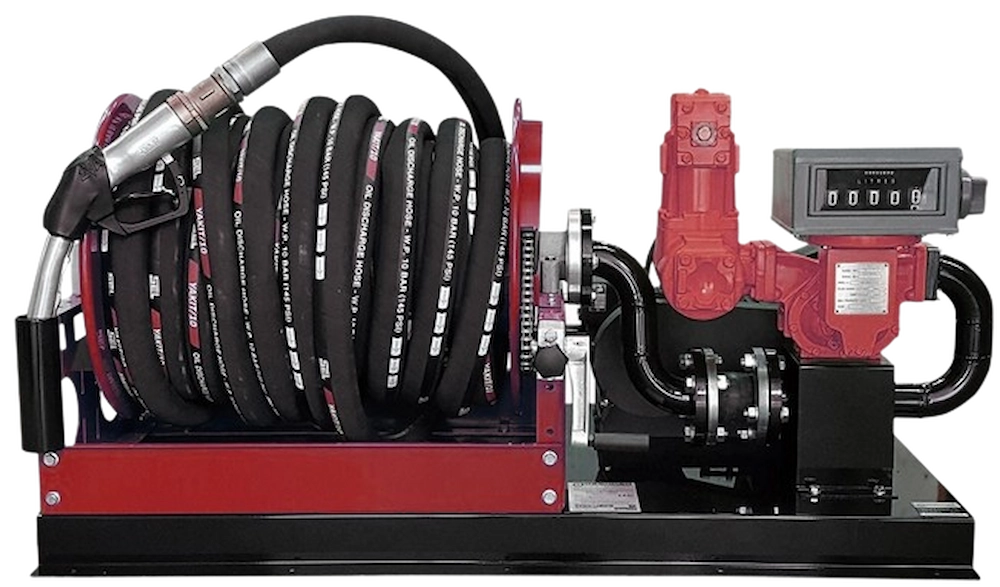

SM-200E · HIGH FLOW MECHANICAL BEDPLATE SUPPLY KIT WITH HOSE-REEL · 200 l/min
26870-CF00001

Composed of:

  • BDP-200 2.2 kW · IP-55 · high flow blade pump
  • M-40 Volumetric high flow meter · Accuracy: ±0.2 %
  • PA-250 · Automatic nozzle
  • Open hose-reel with 20 m Ø1 1/2" delivery diesel hose of double layer with adapters in both ends
SM-200 · HIGH FLOW MECHANICAL BEDPLATE SUPPLY KIT · 200 l/min

Composed of:

  • BDP-200 2.2 kW · IP-55 · high flow blade pump
  • M-40 Volumetric high flow meter · Accuracy: ±0.2 %
  • PA-250 · Automatic nozzle
  • 4 m Ø2" delivery diesel hose of double layer with adapters in both ends
SM-500 · HIGH FLOW MECHANICAL BEDPLATE SUPPLY KIT · 500 l/min
26881-CF00000

Composed of:

SM-1000 · HIGH FLOW MECHANICAL BEDPLATE SUPPLY KIT · 1,000 l/min
26882-CF00000

Composed of:

SM-1200 · HIGH FLOW MECHANICAL BEDPLATE SUPPLY KIT · 1,200 l/min
26883-CF00000

Composed of:

  • BDP-1200 · IP-55 · high flow blade pump
  • M-100 Volumetric high flow meter · Accuracy: ±0.2 %
  • MK-100 4" coupling
Sifariş edin
