Extractors-decontaminators
Yanacaq / Extractors-decontaminators / LG-84

LG-84

Electric

Dizel Dizel
  • The extractors-decontaminators are suitable for the suction and total cleaning of the bottoms, both liquid and solid impurities, in all types of over and buried tanks.
  • They point up because of the quick separation of the suctioned liquid by pressurization and decanting, returning to the same tank the clean liquid and the polluted liquid on the authorized tanks.
  • It is also designed for emptying the own consumption tanks that could have water, mud or diesel, so as the vehicle tanks that during the refuelling you would have put the wrong fuel or have filled more litres than you want.

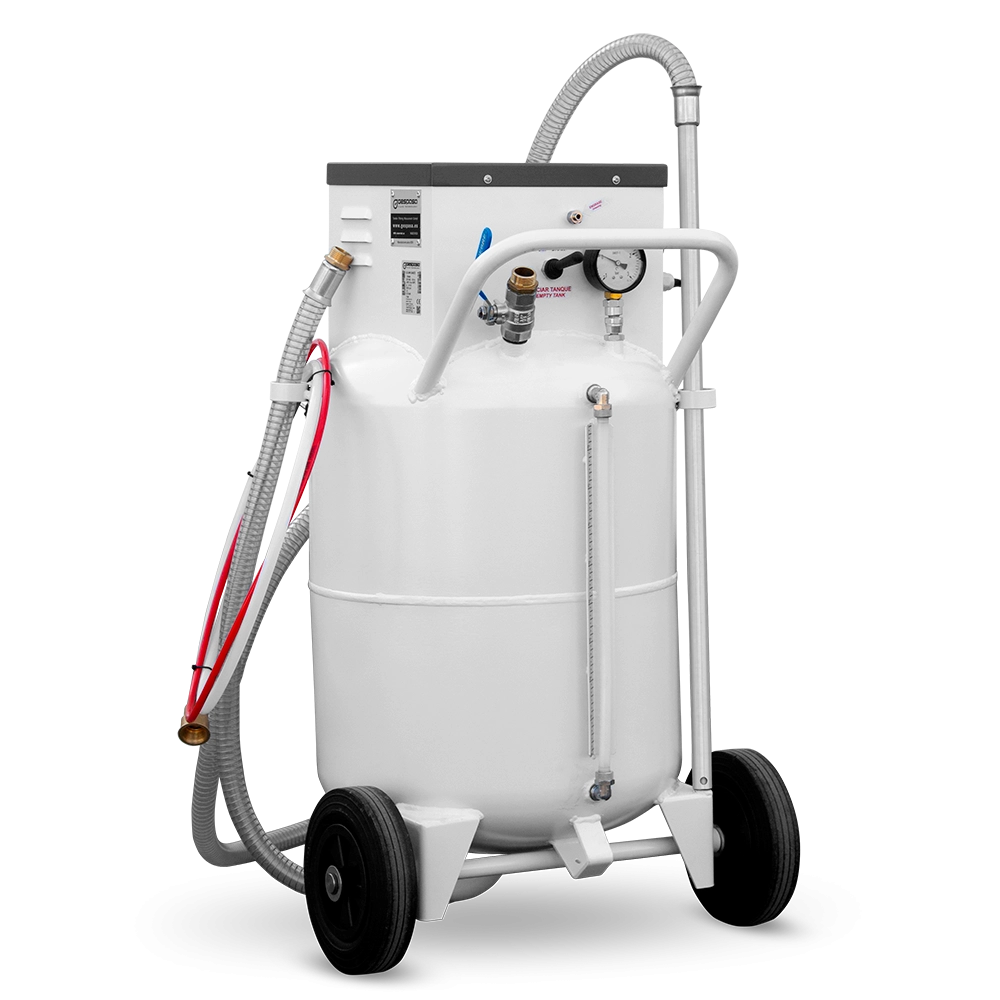

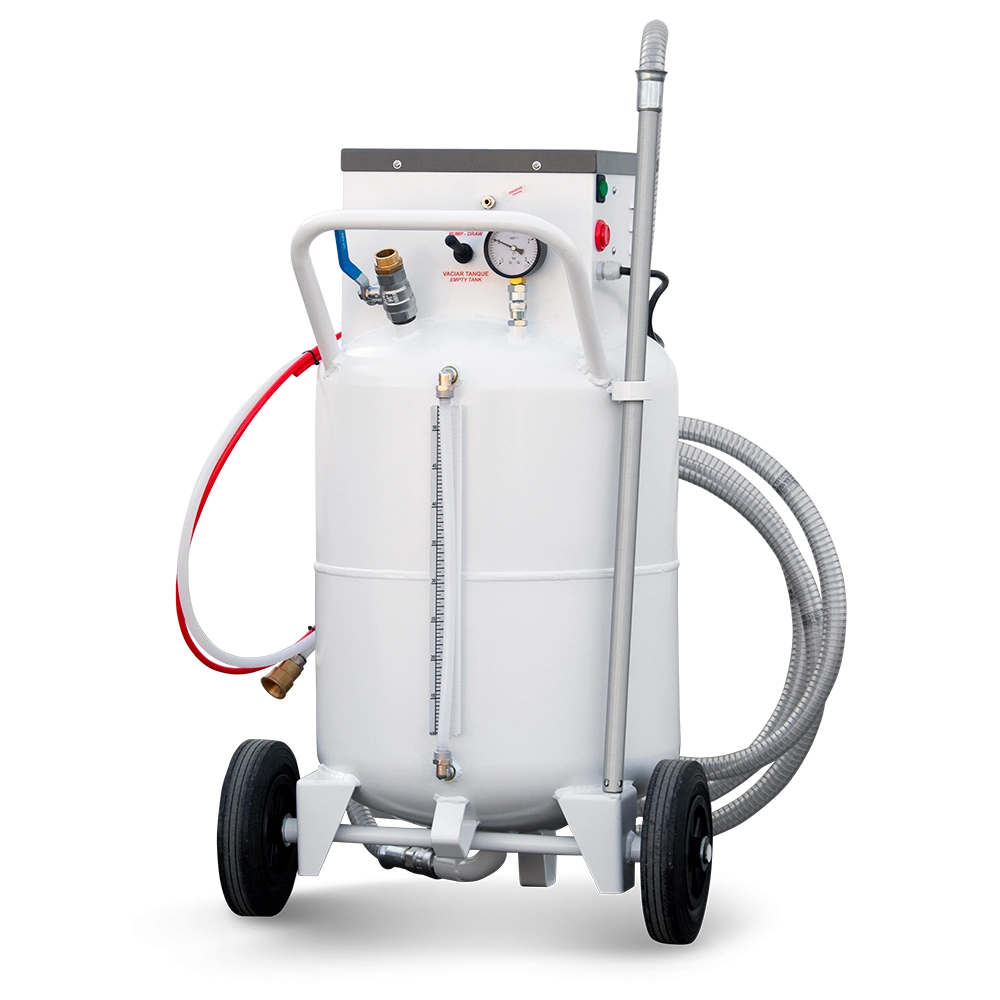

LG-84 · Electric extractor-decontaminator
48000

Technical data:

  • Motor: 0,25kW with IP-55 protection
  • Voltage: 230VCA
  • Consumption: 1,2-2A
  • Pressure / Depression: +0,9/-0,7bar
  • Flow: 35 l/min
  • R.P.M.: 3000rpm
  • Maximum vessel capacity: 60 litres
  • Maximum admissible capacity: 50 litres
  • Suitable for diesel


Equipped with:

  • Vacuum gauge: -1 +3bar
  • FF HH3/4" ball valve
  • Level float (overfilling security)
  • STAINLESS window grid; Breakaway
  • 5,5m transparent suction/evacuation tube Ø20mm
  • 0,75m transparent evacuation tube Ø20mm
  • 0,75m galvanized metallic tube 1/2" Ø20mm
  • 1,5m tank extraction probe Ø12 x 9mm
  • 1,5m tank extraction probe Ø8 x 6mm
  • Back wheels


*IT IS NOT SUITABLE FOR PETROL OR EXPLOSIVE LIQUIDS IN ENVIRONMENTS BECAUSE OF ITS FEATURES YOU NEED AN EXPLOSIONPROOF KIT.
