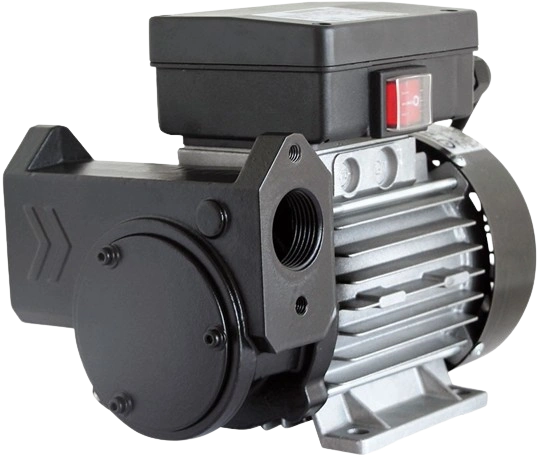

IRON-75 230 VAC
Self-suction with blades · 0.5 kW · 75 l/min
IRON-75 230 VAC 75 l/min
00350
IRON-75 230 VAC · VITON · B100
003500200
- Self-suction - self-priming. Eccentric of self-adjusting blades
- With recirculation bypass
- Suction: 2.7 m · Delivery: 30 m
- Priming pipe suction: 5 m
- Free flow: 75 l/min
- Consumption: 1.9-4.5 A
- Motor: 0.5 kW 230 VAC self-ventilated 50/60 Hz single-phase with thermal protector
- S1 Continuous duty
- IP-55 Protection
- 3,000 rpm
- Connection through F1" (BSP) threads and flanges
- It has built in a cleaning steel filter of 350 µm (micron).
- ON/OFF luminous switch with IP-55 protection
- 3 m electric cable with homologated plug
- Anti-rust treatment
Size and weight (approx.):
- Dim.: 146x225x185 mm (length x width x height)
- Weight: 8.5 kg
