Diesel Pumps
Yanacaq / Diesel Pumps / IRON-50 12 or 24 VDC

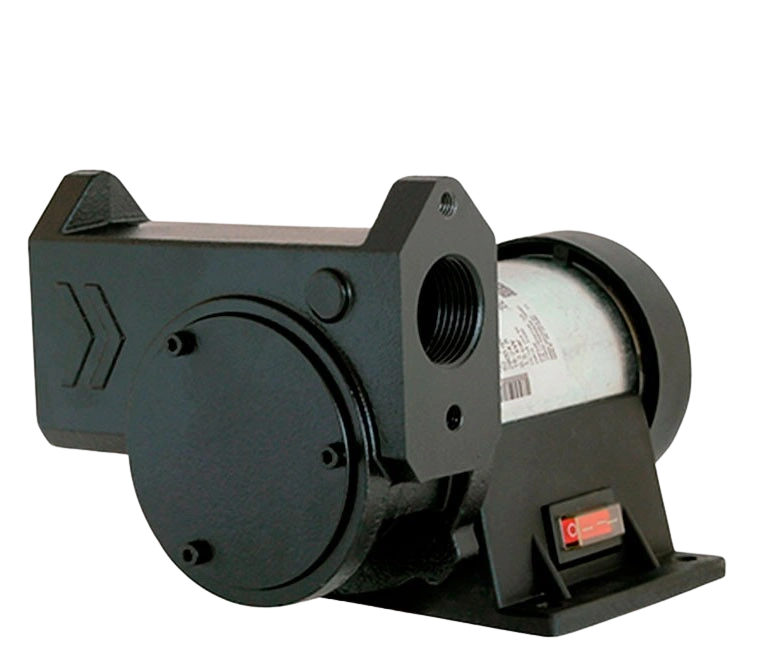

IRON-50 12 or 24 VDC

Blade self-suction · 50 l/min

Biodizel Biodizel
Dizel Dizel
IRON-50 12 VDC · 50 l/min
00001
IRON-50 24 VDC · 50 l/min
00011
IRON-50 12 VDC · VITON · B100
000000200
IRON-50 24 VDC · VITON · B100
000100200
  • Self-suction - self-priming. Eccentric of self-adjusting blades
  • With recirculation bypass
  • Suction: 2.7 m · Delivery: 20 m
  • Priming pipe suction: 5 m
  • Free flow: 50 l/min
  • Consumption:  18-24 A (12 VDC) and 9-17 A (24 VDC)
  • Motor: 0.30 kW (12 and 24 VDC) self-ventilated · dust protected
  • S2 30´ duty
  • 3,000 rpm
  • Bypass pressure: 1.2 bar
  • Connection through F1" (BSP) threads and flanges
  • It has built in a cleaning steel filter of 350 µm (micron).
  • ON/OFF luminous switch with IP-55 protection
  • 2 m cable with clamps
  • Anti-rust treatment
Size and weight (approx.):
  • Dim.: 160x200x137 mm (lenght x width x height)
  • Weight: 4.5 kg
Sifariş edin
