Diesel Pumps
Yanacaq / Diesel Pumps / BAG-800

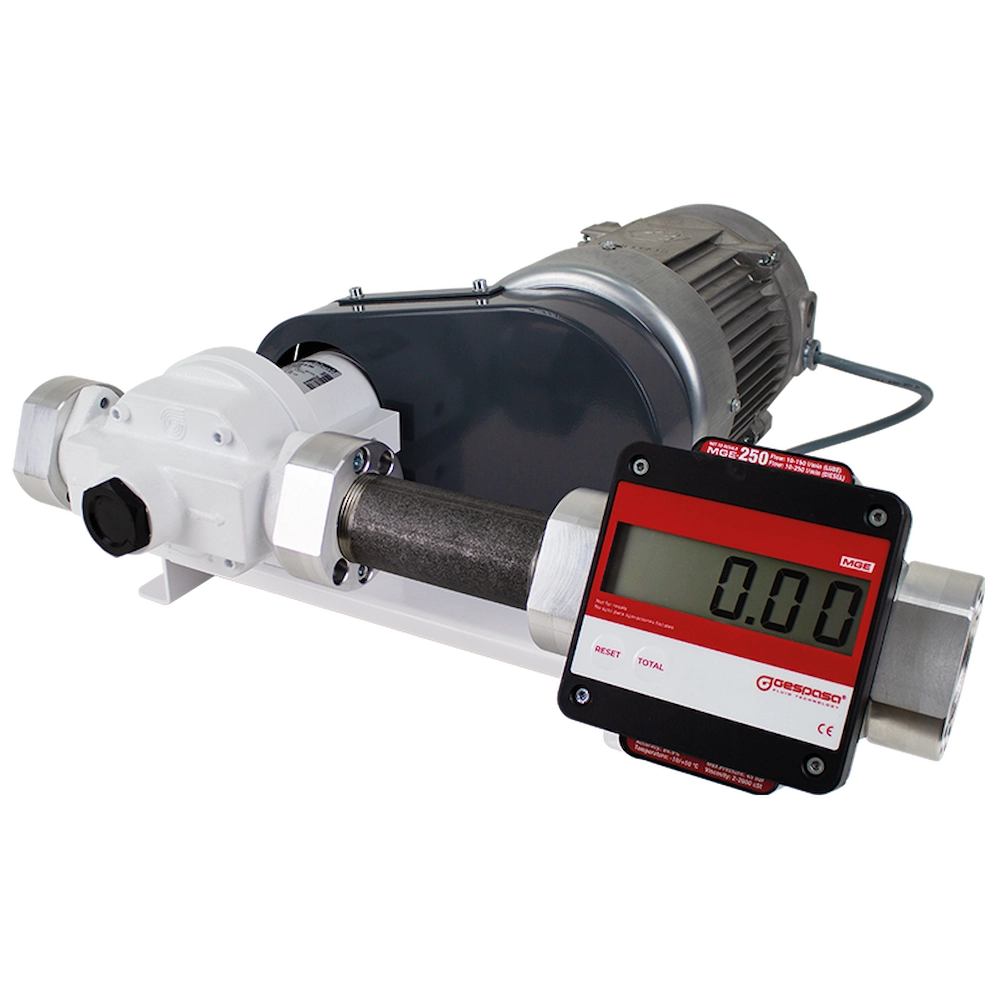

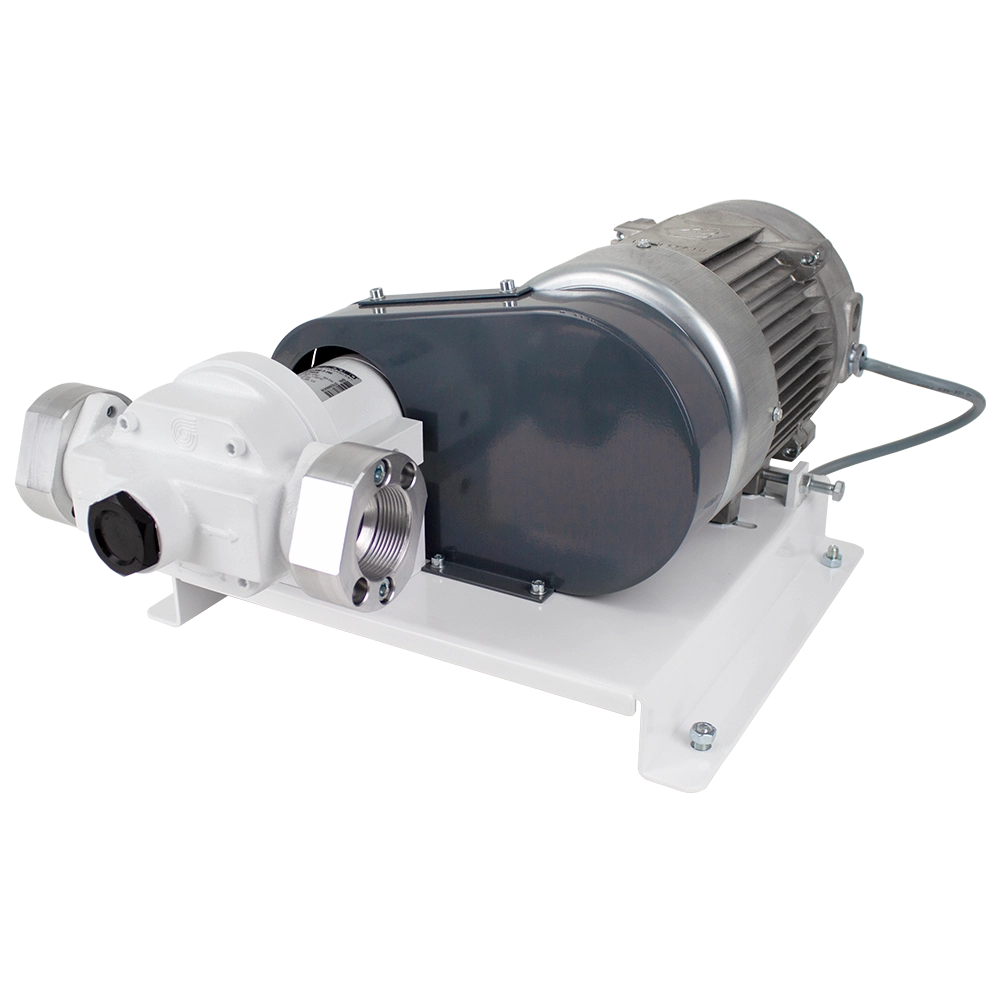

BAG-800

EExd · 1 kW · 150 l/min

Dizel Dizel
Benzin Benzin
BAG-800 230/400 VAC · TRIPHASE · 100-150 l/min
27520
BAG-800 230 VCA · SINGLE-PHASE · 100-150 l/min
27580
  • Self-suction - self-priming. Eccentric of self-adjusting blades
  • With recirculation bypass
  • Free flow: 100-150 l/min
  • Consumption: 3.3-5.8 A (230/400 VAC) · 5.7-6.3 A (230 VAC)
  • Motor:
    • 1 kW 230/400 VAC 50 Hz 3ph
    • 1 kW 230 VAC 50 Hz single-phase
  • Explosionproof (ATEX)
  • 1,410 rpm
  • With thermal protector
  • S1 continuous duty
  • Motor zone classification: II 2G EExd IIB T3
  • Motor Certificate: TÜV IT 11 ATEX 012X
  • Operation temperature: 0 ºC - +50 ºC
  • Inlet/outlet connection: 1 1/2" BSP
  • Bypass pressure: 3 bar
Size and weight (approx.):
  • Size: 400x330x220 mm (length x width x height)
  • Weight: 33,5 kg
