COMPACT · PUMP DISPENSER
Yanacaq / COMPACT · PUMP DISPENSER / COMPACT Plus · ELECTRONIC SUPPLY KITS · DIESELPLUS

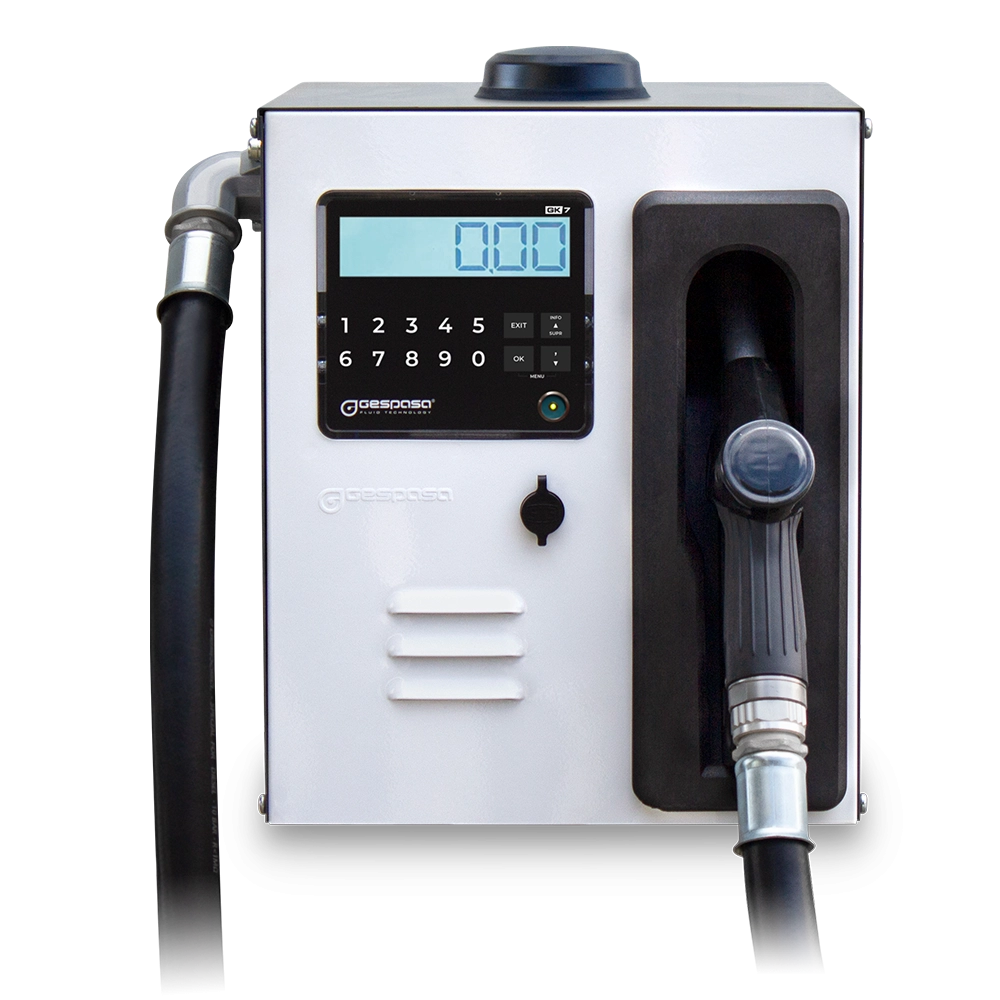

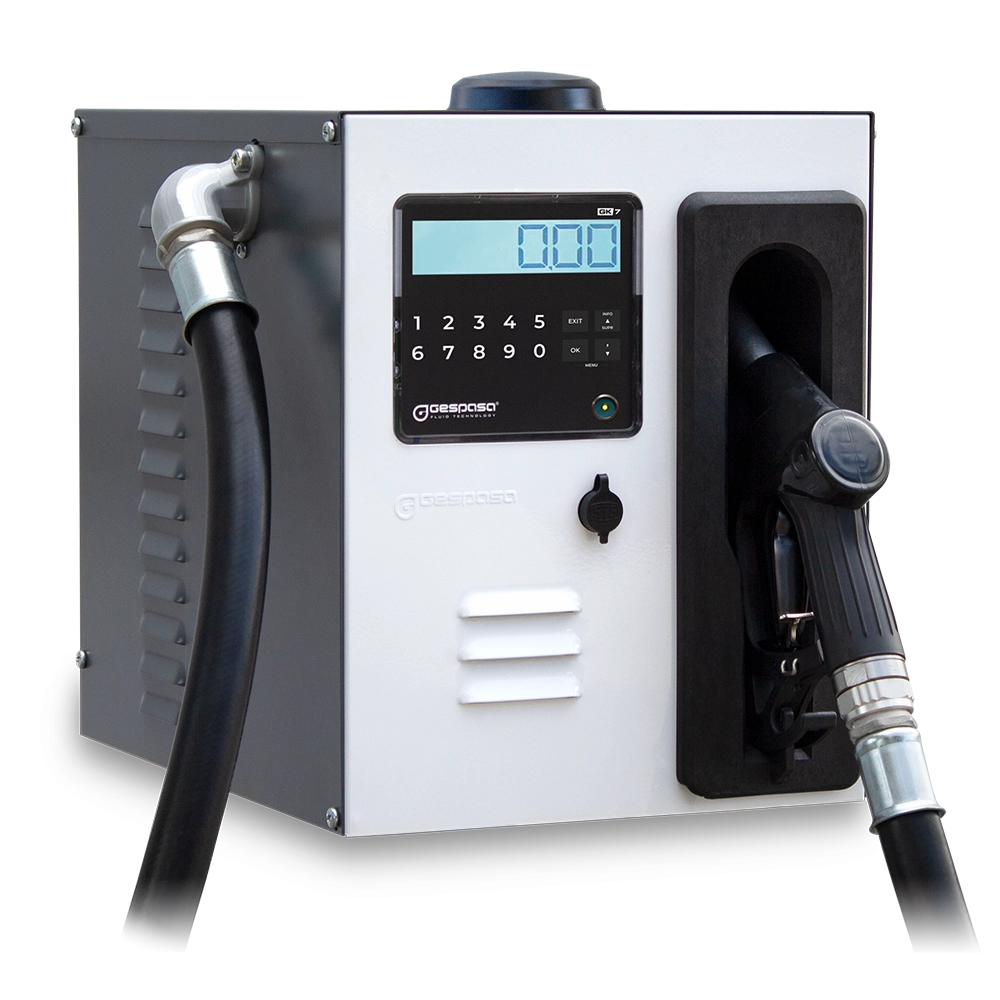

COMPACT Plus · ELECTRONIC SUPPLY KITS · DIESELPLUS

Dizel Dizel
  • The COMPACT PLUS electronic supply kits with GK-7Plus own consumption controller are suitable for the diesel supply, measurement and control for own consumption vehicles.
  • The GK-7Plus controller allows the supply only to authorised personnel and memorises all the services that the users and/or the vehicles do. The supply kit has the Internet connection. The user can manage the dispenser data like users, vehicles and done supplies from any PC, which is connected to the Internet, entering into the control web site www.dieselplus.net/ with a user name and a password.
  • Suitable for transport companies, private vehicle fleet, agricultural companies, public works, ...

It is composed of:

CHASSIS

  • Made of steel
  • Special treatment to protect against corrosion and QUALICOAT CLASS 1 powder coating finishing
  • Weatherproof

PUMP

  • self-suction with self-adjusting blades

PULSER

  • MGI-110 · 90º Hall Effet · Accuracy ±0,5 %

SOFTWARE

NOZZLE

  • automatic

HOSE

  • 4 m antistatic delivery diesel hose double layer, with adapters in both ends
COMPACT 50Plus-60-230 V · 60 users · 1,000 services
28541-CF00000
COMPACT 50Plus-130-230 V · 130 users · 1,000 services
28541-CF00001
  • IRON-50 230 VAC  self-suction of self-adjusting blades ·*Please, ask for option of 24 V.
  • Flow rate: 40-50 l/min
Size and weight (approx.):
  • Size: 405x460x405 mm (length x width x height)
  • Weight: 22.5 kg
COMPACT 50Plus-60-12 V · 60 users · 1,000 services
28583-CF00000
COMPACT 50Plus-130-12 V · 130 users · 1,000 services
28583-CF00001
  • IRON-50 12 VDC  self-suction of self-adjusting blades · *Please, ask for option of 24 V.
  • Flow rate: 40-50 l/min
Size and weight (approx.):
  • Size: 405x460x405 mm (length x width x height)
  • Weight: 18.5 kg
COMPACT 75Plus-60-230 V · 60 users · 1,000 services
28641-CF00000
COMPACT 75Plus-130-230 V · 130 users · 1,000 services
28641-CF00001
  • IRON-75 230 VAC  self-suction with self-adjusting blades
  • Flow rate: 65-70 l/min
Size and weight (approx.):
  • Size: 405x460x405 mm (length x width x height)
  • Weight: 32.5 kg
COMPACT 90Plus-60-12 V · 60 users · 1,000 services
28592-CF00000
COMPACT 90Plus-130-12 V · 130 users · 1,000 services
28592-CF00001
  • AG-90 12 VDC  self-suction with self-adjusting blades · *Ask for 24 V model
  • Flow rate: 70-80 l/min
Size and weight (approx.):
  • Dim.: 405x460x405 mm (length x width x height)
  • Weight: 39.5 kg
COMPACT 100Plus-60-230 V · 60 users · 1,000 services
28651-CF00000
COMPACT 100Plus-130-230 V · 130 users · 1,000 services
28651-CF00001
  • AG-100 230 VAC self-suction with self-adjusting blades
  • Flow rate: 75-85 l/min
Size and weight (approx.):
  • Size: 405x460x405 mm (length x width x height)
  • Weight: 32.5 kg
