COMPACT · PUMP DISPENSER
Yanacaq / COMPACT · PUMP DISPENSER / COMPACT K · ELECTRONIC SUPPLY KITS · GK-7

COMPACT K · ELECTRONIC SUPPLY KITS · GK-7

Dizel Dizel

Yeni

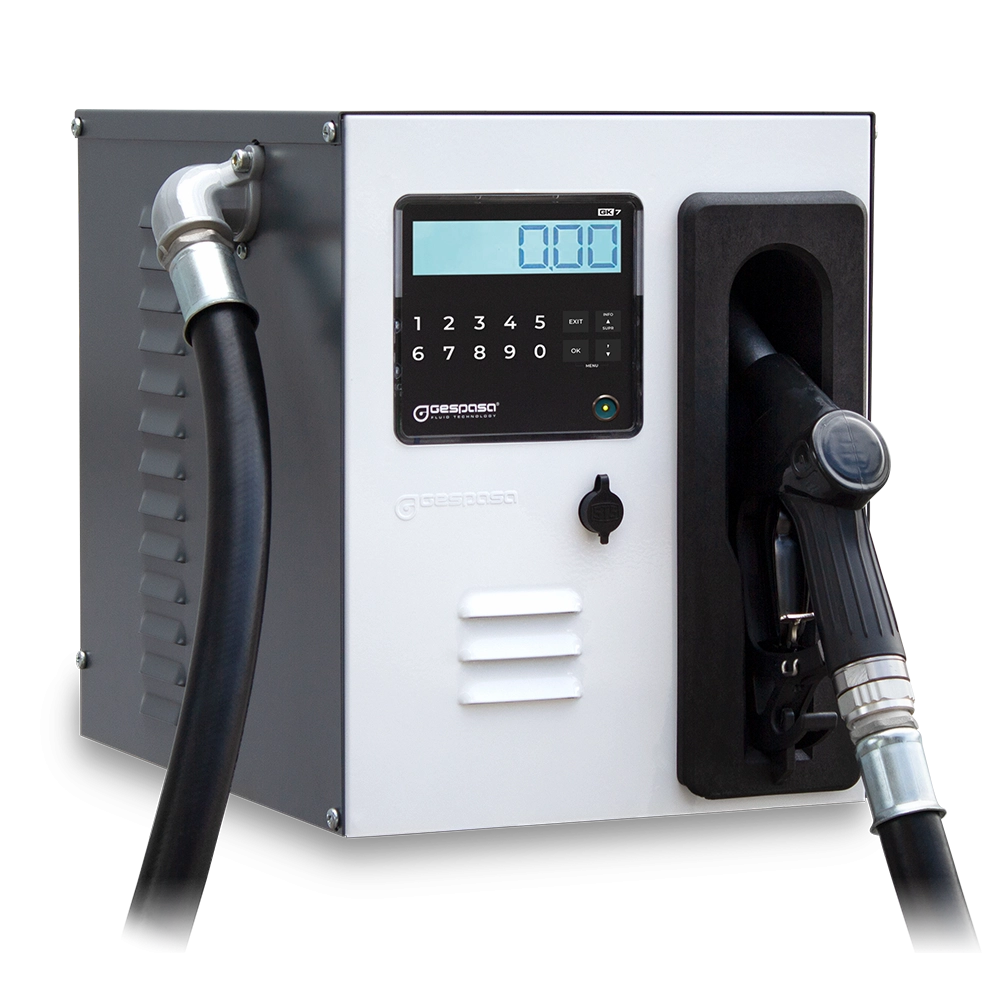

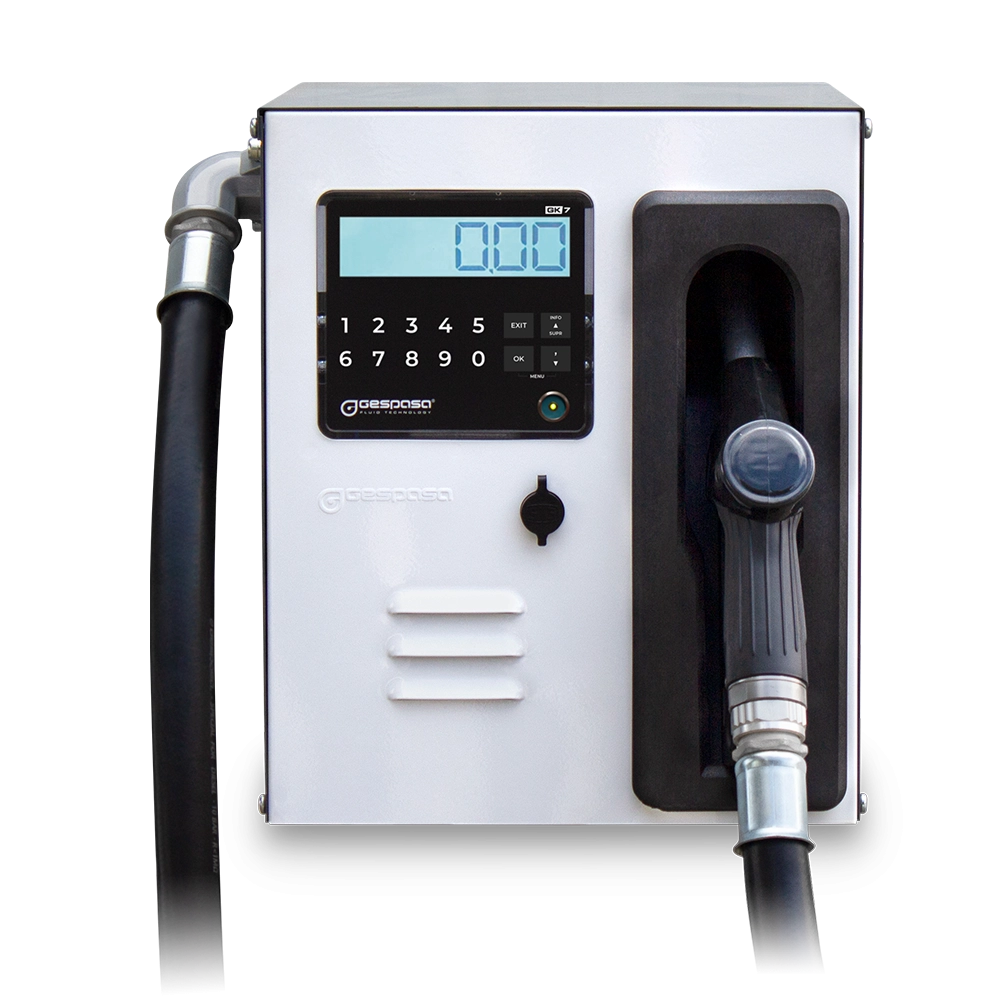

The compact supply kits with controller are suitable for the diesel own consumption supply, measuring and control for fleet vehicles.

Its installation is suitable and advisable for transport companies, private vehicle fleets, agricultural companies...

It is composed of:

CHASSIS:

  • Made of steel
  • Special treatment to protect against corrosion and QUALICOAT CLASS 1 powder coating finishing
  • Weatherproof

PUMP:

  • self-suction, eccentric with self-adjusting blades

PULSER:

  • MGI-110 90º Hall Effect · Accuracy ±0.5 %

CONTROLLER:

  • GK-7 own consumption

NOZZLE

  • automatic

HOSE

  • 4 m delivery diesel hose double layer, with adapters in both ends
COMPACT 50K-60-230 V · 60 users · 200 services
28540-CF00000
COMPACT 50K-130-230 V · 130 users · 500 services
28540-CF00001
  • IRON-50 230 VAC  self-suction with self-adjusting blades
  • Flow rate: 40-50 l/min
Size and weight (approx.):
  • Size: 405x460x405 mm (length x width x height)
  • Weight: 22.5 kg
COMPACT 50K-60-12 V · 60 users · 200 services
28580-CF00000
COMPACT 50K-130-12 V · 130 users · 500 services
28580-CF00001
  • IRON-50 12 VDC  self-suction of self-adjusting blades · *Please, ask for option of 24 V.
  • Flow rate: 40-50 l/min
Size and weight (approx.):
  • Size: 405x460x405 mm (length x width x height)
  • Weight: 18.5 kg
COMPACT 75K-60-230 V · 60 users · 200 services
28640-CF00000
COMPACT 75K-130-230 V · 130 users · 500 services
28640-CF00001
  • IRON-75 230 VAC  self-suction with self-adjusting blades
  • Flow rate: 65-70 l/min
Size and weight (approx.):
  • Size: 405x460x405 mm (length x width x height)
  • Weight: 32.5 kg
COMPACT 90K-60-12 V · 60 users · 200 services
28590-CF00000
COMPACT 90K-130-12 V · 130 users · 500 services
28590-CF00001
  • AG-90 12 VDC  self-suction with self-adjusting blades · *Ask for 24 V model
  • Flow rate: 70-80 l/min
Size and weight (approx.):
  • Dim.: 405x460x405 mm (length x width x height)
  • Weight: 39.5 kg
COMPACT 100K-60-230 V · 60 users · 200 services
28650-CF00000
COMPACT 100K-130-230 V · 130 users · 500 services
28650-CF00001
  • AG-100 230 VAC  self-suction withself-adjusting blades ·*Ask for 24 V model
  • Flow rate: 75-85 l/min
Size and weight (approx.):
  • Size: 405x460x405 mm (length x width x height)
  • Weight: 32.5 kg
Sifariş edin
