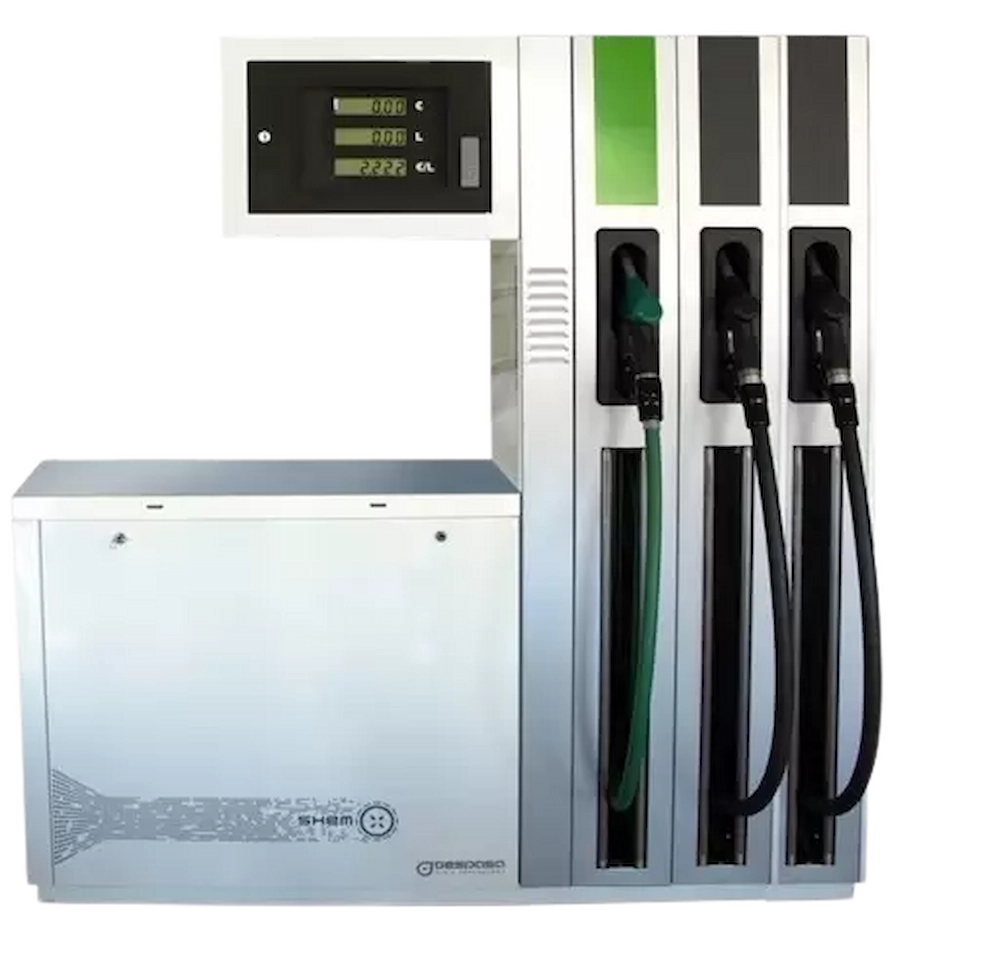

SHEM BLUE

Commercial dispensers

Biodizel Biodizel
Dizel Dizel
Benzin Benzin

USE

  • The SHEM commercial dispensers with GESPASA electronic calculator and ATEX custody are suitable for the diesel or petrol supply and sale.
  • It is suitable for service stations, cooperatives, transport companies and so on.



FEATURES

  • These models are available from 1 to 8 hoses, with a maximum of 4 pumps.
  • The electronics is composed of 3 displays that show:
    • Price per litre
    • Total amount
    • Supplied litres
  • The electronics allows to preset the product quantity to be supplied.
  • The pumping unit has a degasifier with float chamber that elimiantes the air and vapour of the fuel.
  • It is easy its access to all its components.
  • Environment temperature: -25 ºC to +55 ºC
  • Liquid temperature: -10 ºC to +50 ºC



Composed of:

CHASSIS:

  • Made of steel with a special interior and exterior treatment against the corrosion
  • Finish with brilliant epoxid paint. Weather-resistant.

HYDRAULIC GROUP:

Composed of:

Pump

  • Flow: 50 l/min · 80 l/min (according to the model)
  • Aluminium pump body
  • Self-suction, eccentric of self-adjusting blades with gas separator
  • Recirculation bypass valve
  • Check valve
  • Interior filter
  • Self-tightened belt system

Meter

  • of aluminium of 4 pistons with positive movement
  • Accuracy: 0,2 % (flow from 4 to 80 l/min)
  • Pulser of 2 channels of 100 pulses per litre and mechanical totalizer

Motor

  • 1 kW  230/400 VAC · triphasic EExd explosionproof (ATEX)

Optional:

  • 1 kW 230 VCA 50 Hz · single-phase EExd explosionproof (ATEX)

ELECTRONIC CALCULATOR

  • Electronic LCD with 6-digit display for volume and amount and 4-digit display for price

It is supplied with:

  • 4 m delivery hose Ø16 or 19 mm double layer special for fuel with both ends (UNE 1360)
  • PA-80 · Automatic nozzle with MF1" swivel and «breakaway valve»
SIMPLE SHEM
SHEM BLUE - 1 FACE - 50 l/min
SHEM 501 Blue · 1 hose · 1 pump
294700000
SHEM 502 Blue · 2 hoses · 2 pumps
294900000
SHEM 503 Blue · 3 hoses · 3 pumps
295200000
SHEM 504 Blue · 4 hoses · 4 pumps
295400000
SHEM BLUE - 1 FACE - 80 l/min
SHEM 801 Blue · 1 hose · 1 pump
294800000
SHEM 802 Blue · 2 hoses · 2 pumps
29500
SHEM 803 Blue · 3 hoses · 3 pumps
295300000
SHEM 804 Blue · 4 hoses · 4 pumps
295500000
SHEM BLUE - 1 FACE - 50/80 l/min
SHEM 501-801 Blue · 2 hoses · 2 pumps
295100000
SHEM BLUE - 1 FACE FOR SUBMERGED PUMP - 80 l/min
SHEM BS01 Blue · 1 hose · 1 pump
298000000
SHEM BS02 Blue · 2 hoses · 2 pumps
298100000
SHEM BS03 Blue · 3 hoses · 3 pumps
298200000
SHEM BS04 Blue · 4 hoses · 4 pumps
298300000
DOUBLE SHEM
SHEM BLUE DOUBLE - 2 FACES - 50 l/min
SHEM 502D Blue · 2 hoses in 1+1 · 1 pump
296700000
SHEM 502D2B Blue · 2 hoses in 1+1 · 2 pumps
296800000
SHEM 504D Blue · 4 hoses in 2+2 · 2 pumps
296100000
SHEM 506D Blue · 6 hoses in 3+3 · 3 pumps
296400000
SHEM 508D Blue · 8 hoses in 4+4 · 4 pumps
296600000
SHEM BLUE DOUBLE - 2 FACES - 80 l/min
SHEM 802D Blue · 2 hoses in 1+1 · 1 pump
296700100
SHEM 802D2B Blue · 2 hoses in 1+1 · 2 pumps
296800100
SHEM 804D Blue · 4 hoses in 2+2 · 2 pumps
296200000
SHEM 806D Blue · 6 hoses in 3+3 · 3 pumps
296500000
SHEM 808D Blue · 8 hoses in 4+4 · 4 pumps
296000000
SHEM BLUE DOUBLE - 2 FACES - 50/80 l/min
SHEM 502-802D Blue · 4 hoses in 2+2 · 2 pumps
296300000
SHEM BLUE DOUBLE - 2 FACES FOR SUBMERGED PUMP - 80 l/min
SHEM BS02D Blue · 2 hoses in 1+1 · 1 pump
298400000
SHEM BS04D Blue · 4 hoses in 2+2 · 2 pumps
298500000
SHEM BS06D Blue · 6 hoses in 3+3 · 3 pumps
298600000
SHEM BS08D Blue · 8 hoses in 4+4 · 4 pumps
298700000
