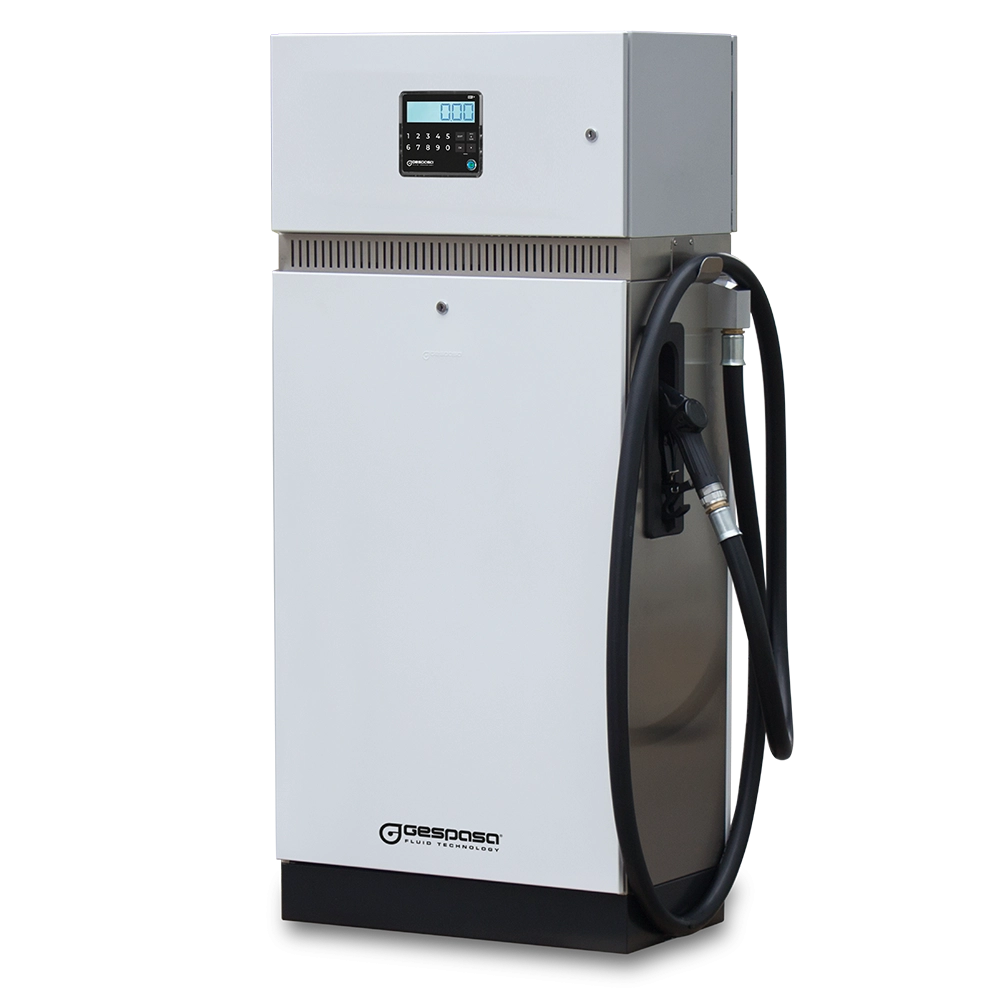

- Supply kit composed of two hydraulic pumps with piston meters.
- It is designed for mixing diesel with oil to get mixed biodiesel.
- It has an inlet of two independent liquids and supply of the mixed fluid.
- Interior switch to supply 100% diesel or 100% oil.
- The mixing selection to be supplied is made through a pulser and a display that there is in its interior.
- You could supply any percentage among 5 and 95%.
Mixing selection:
- The mixing selection is automatically made when the vehicle is identified.
- When the vehicle is typed, you will assign a percentage of mixing to be made.
- Each vehicle can have assigned a different mixing percentage.
- When the user identifies the vehicle in the kit, this will automatically supply the assigned mixing percentage.
- Optional: thermal printer
Composed of:
CHASSIS
- Sides in stainless steel
- Doors made of aluminium and the remainder frame made of steel
- Special treatment to protect against corrosion and QUALICOAT CLASS 1 powder coating finishing
- Weatherproof
HYDRAULIC GROUP composed of:
- Pump: Self-suction, eccentric with self-adjusting blades with gas separator. Flow: 70-90 l/min · Recirculation bypass valve · filter
- Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: ±0.2 % · Pulser of 2 channels of 100 pulses per litre · Mechanical totalisator
- Motor: 2 motors of 1 kW 230/400 VAC · EExd with ATEX certificate, 3 ph, with IP-55 protection
* Optionally it could be supplied with single-phase motors of 1 kW 230 VAC · EExd with ATEX certificate, with IP-55 protection
- Mixing system
CONTROLLER

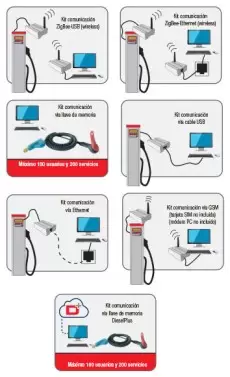

- GK-7: You will need to purchase a communication kit, which includes the necessary software and hardware to connect your dispenser to a PC
It is supplied with:
- 4 m delivery diesel hose Ø25 mm double layer with adapters on both ends
- Automatic nozzle with rotary swivel
