ATEX Pumps
Yanacaq / ATEX Pumps / IRON-50 Ex 230 VAC

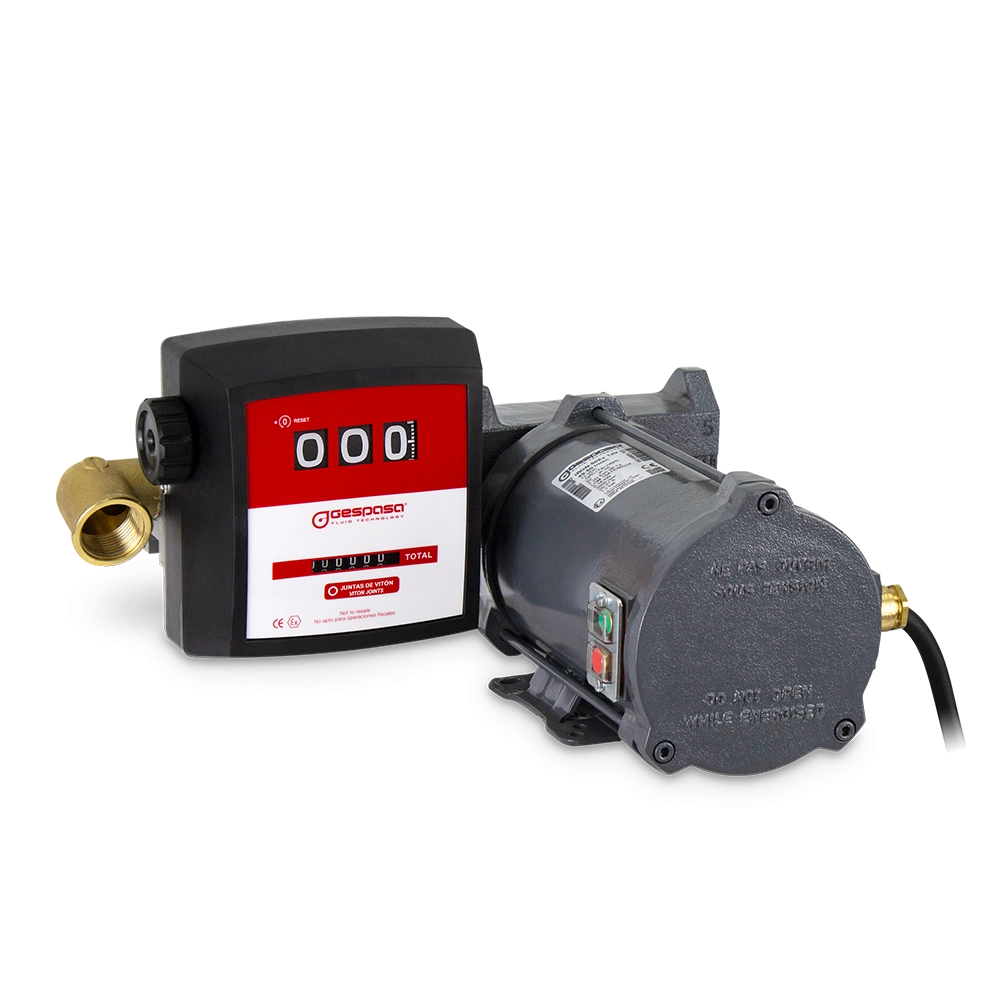

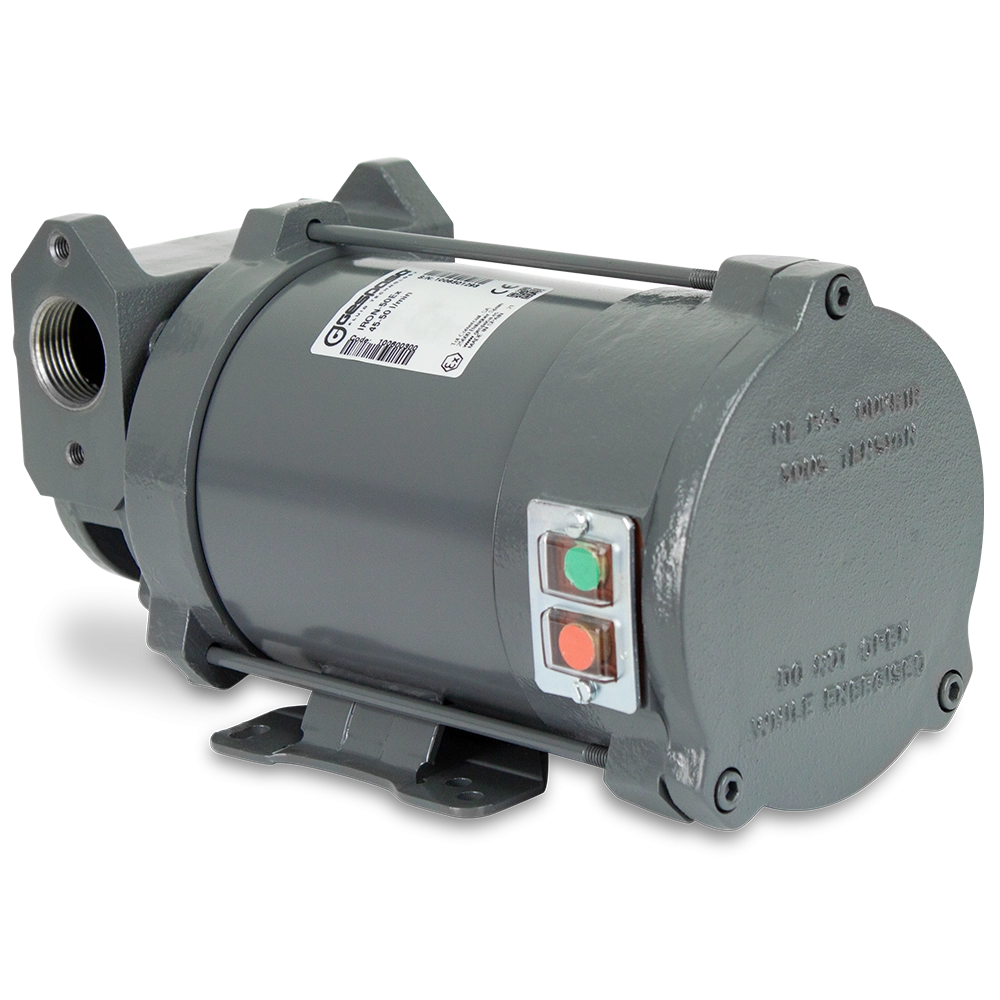

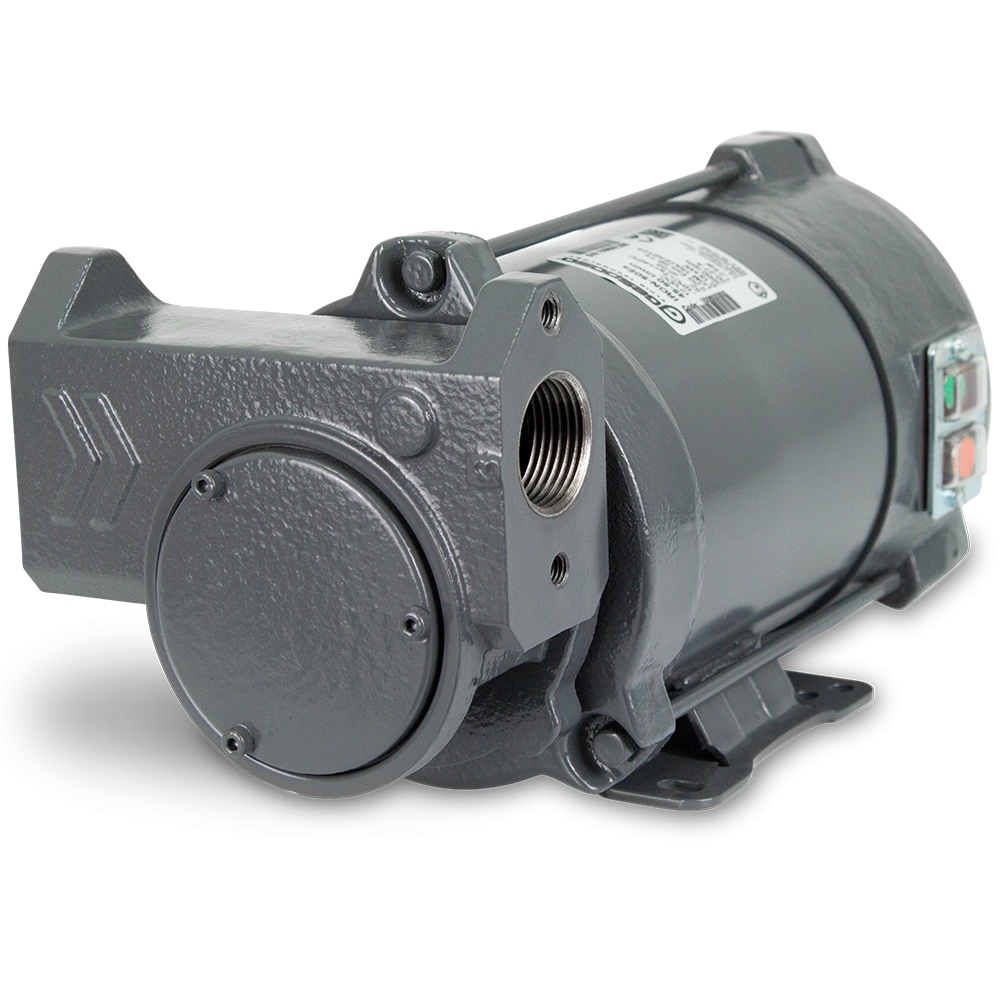

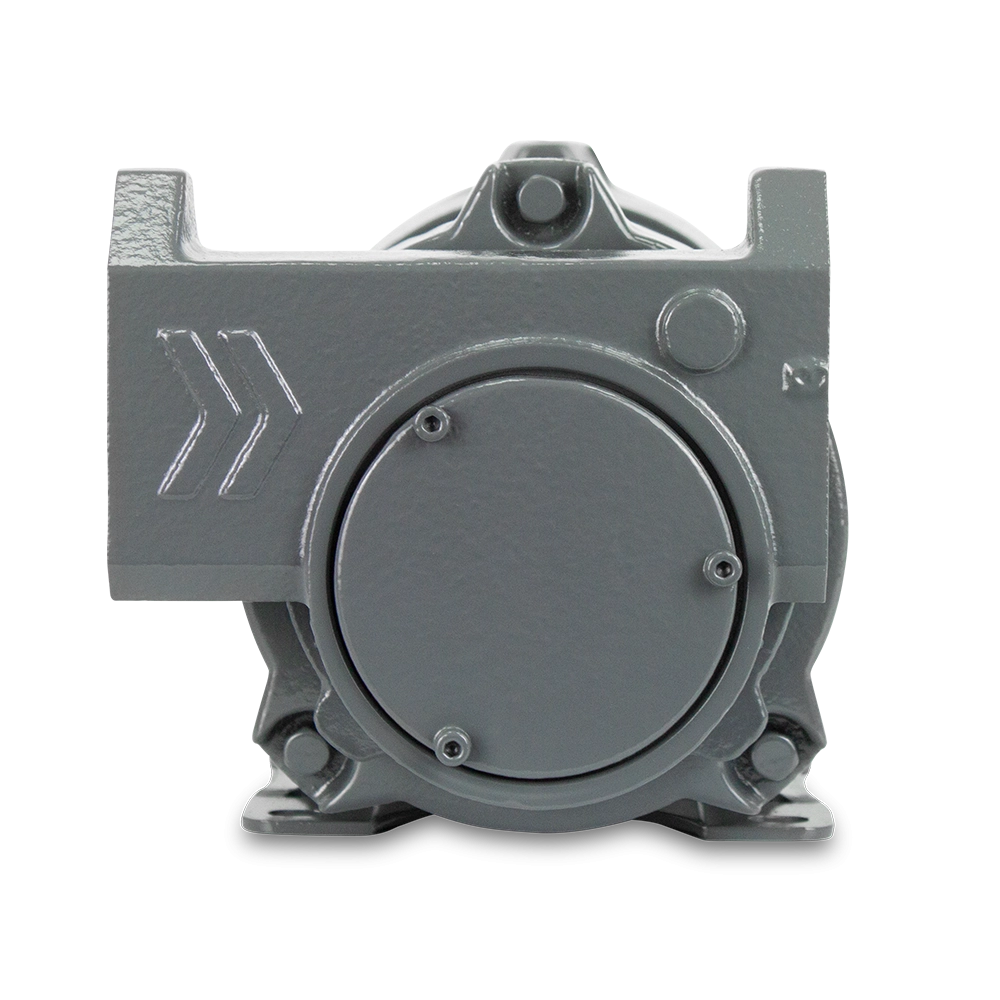

IRON-50 Ex 230 VAC

0.18 kW · 50 l/min

Dizel Dizel
Benzin Benzin
IRON-50 Ex 230 VAC · 50 l/min
10035
  • Self-suction - self-priming, explosionproof, eccentric with self-adjusting blades
  • With recirculation bypass
  • Suction: 2.7 m
  • Priming pipe suction: 5 m
  • Free flow: 50 l/min
  • Consumption: 1-1.8 A
  • Motor: 0.18 kW 230 VAC 50 Hz single-phase EExd
  • With thermal protector
  • 2,850 rpm
  • S2 30' operation
  • IP-55 protection
  • Operation temperature: -10 ºC · +40 ºC
  • Category: ATEX II2G
  • Protection mode (own supply): Ex h IIB T4 Gb
  • Thread connection: F1" (BSP) and flange
  • ON/OFF switch
  • 3 m cable
  • Anti-rust treatment

Size and weight (approx.):

  • Dim.: 250x165x150 mm (LxWxH)
  • Weight: 11.8 kg
