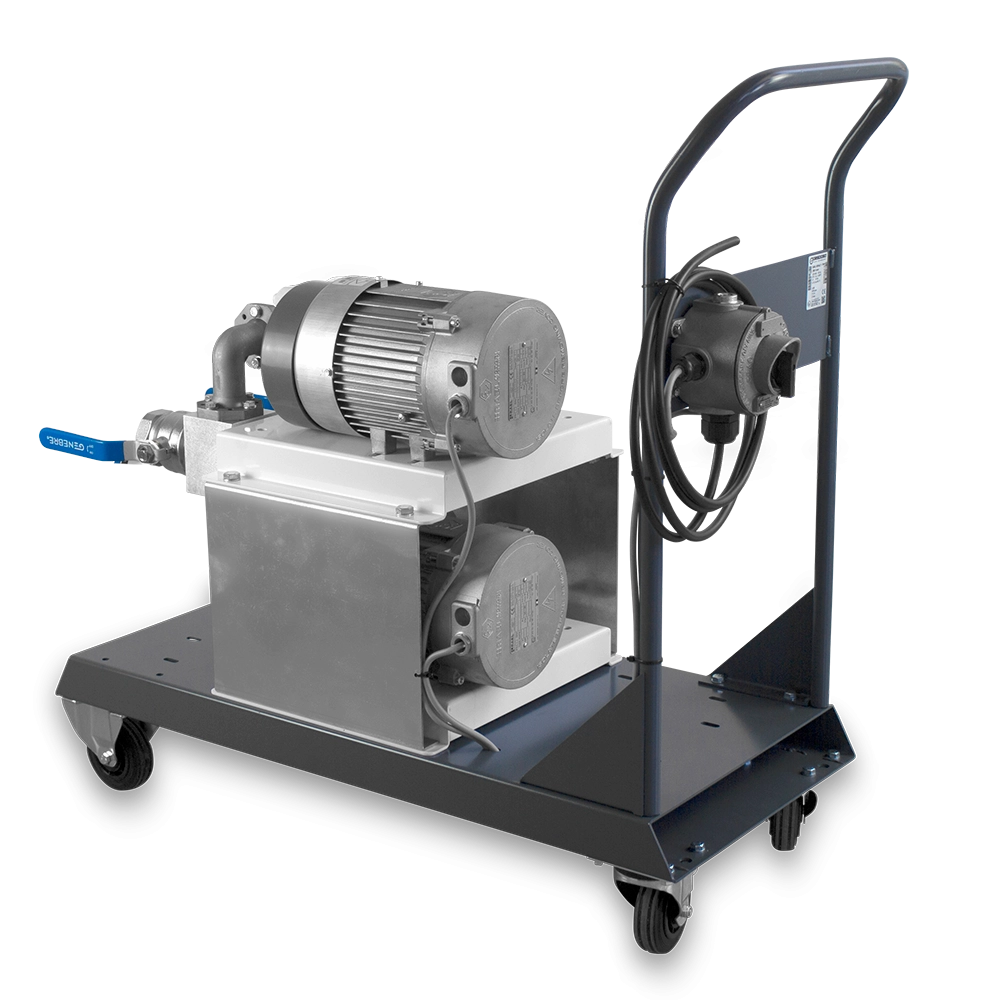

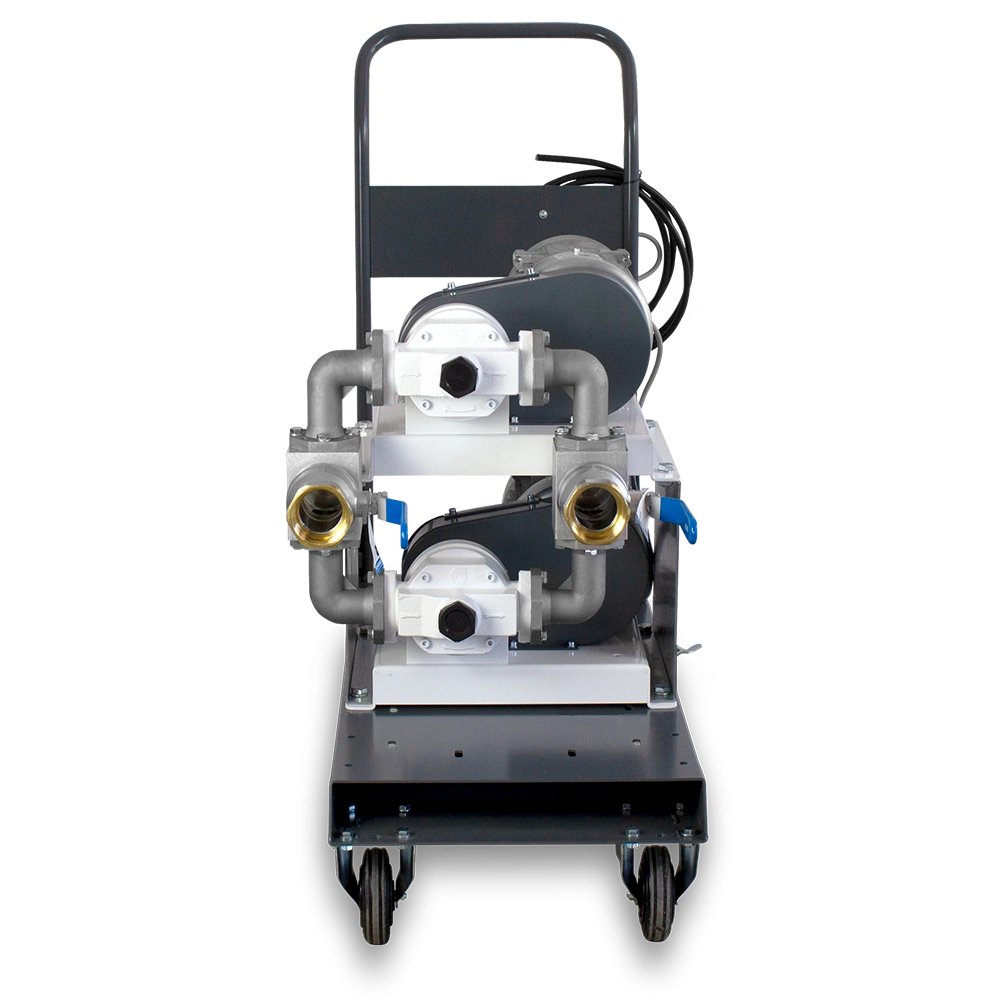

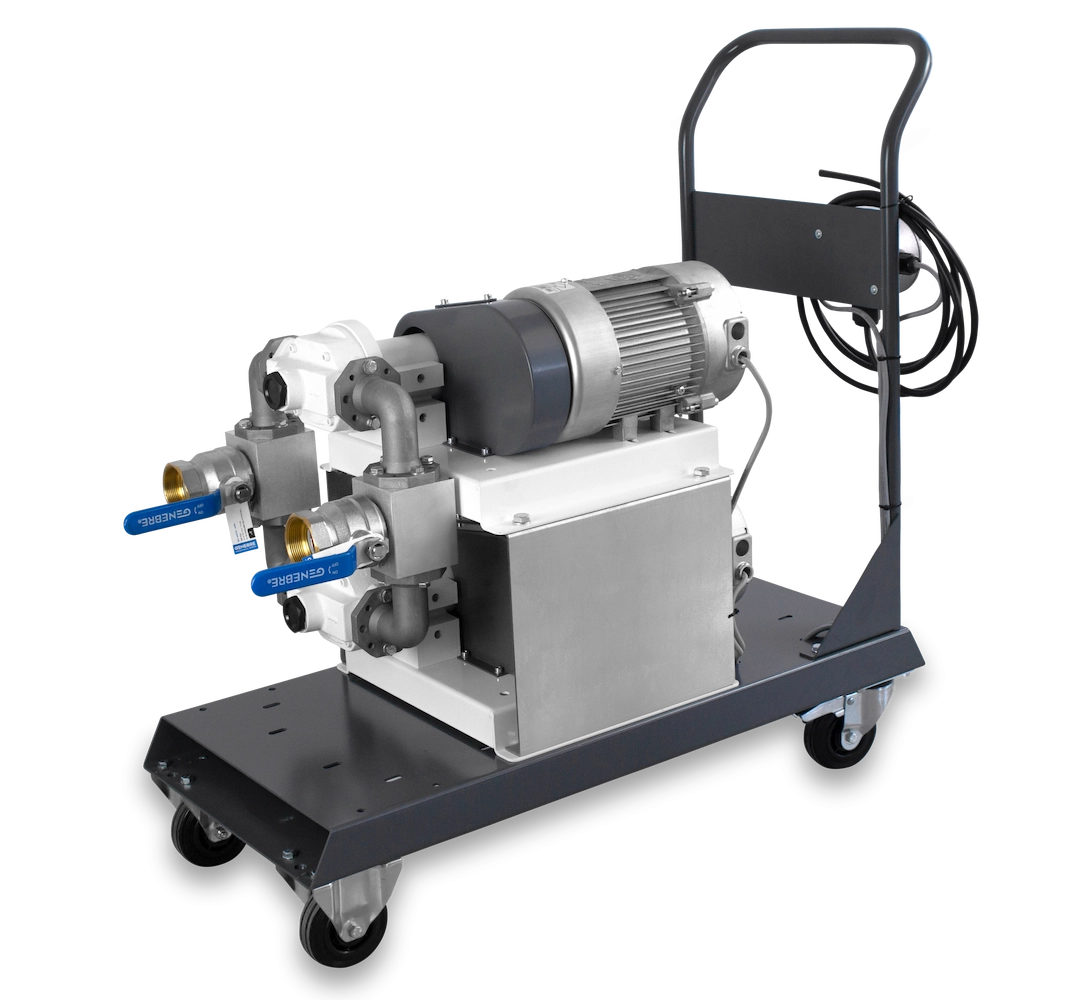

EExd high flow pump kit assembled in a mobile bedplate with wheels
It is composed of:
- 2 units BAG-800 Self-suction-self-priming pumps · Eccentric with self-adjusting blades
- Bypass recirculation system
- Free flow: 260 l/min
- Consumption: 12 A
- 2 motor units:
- 1 kW 230 VAC 50 Hz single-phase
- Explosionproof (ATEX)
- 1,410 rpm
- With thermal protector
- S1 continuous duty
- Motor zone classification: II 2G EExd IIB T3
- Motor Certificate: TÜV IT 11 ATEX 012X
- Inlet/outlet connection: 2" (BSP) with ball valve
- Max. pressure: 2.5 bar
