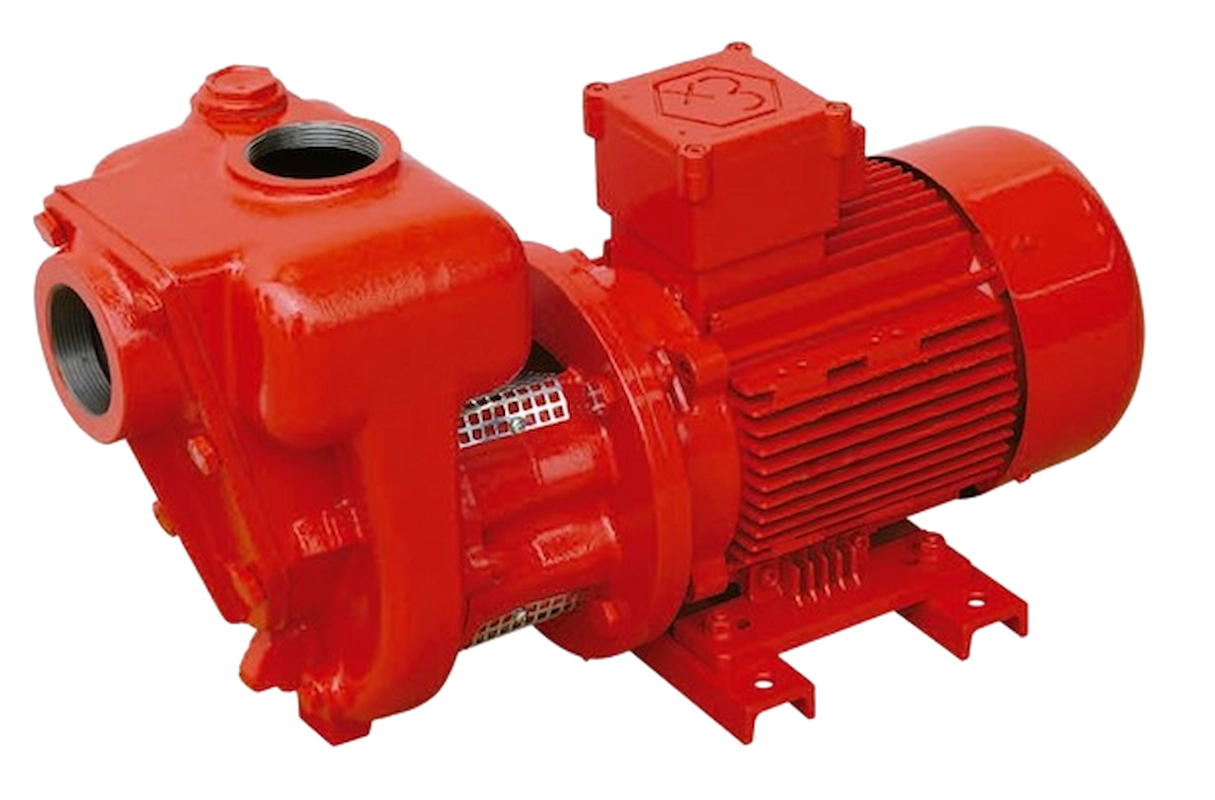

CG-900HD ATEX

2.2 kW · 230 or 230/400 V

Dizel Dizel
Benzin Benzin

Yeni

  • Self-priming electric pump monobloc execution with multi-blades open impeller, suitable for pumping diesel, petrol and other compatible products, manufactured in accordance with standards ATEX 94/9/ CE (II 2G Ex d IIC T4).
  • A suitable non-return valve is placed inside the pump body to avoid the empty after stopping.

FEATURES

  • Max. suction depth: 6 m
  • Max. liquid temperature: +50 °C
  • Max. solid diameter: 27 mm
  • Max. delivery: 54 m³/h · 900 l/min
  • Max. manometric head: 1.6 bar
  • Øinlet/outlet: F3"

Material:

  • Pump body: Cast iron
  • Valve body: Cast iron
  • Support: Cast iron
  • Impeller: Cast iron
  • Motor shaft: Stainless Steel AISI 316
  • Seal: Viton/Carbon/Alumina

Size and weight (approx.):

  • Dim.: 260x600x345 mm (length x width x height)
  • Weight: 37.2 kg
CG-900HD ATEX 230 V · 900 l/min
10200-CF00000
  • Motor: 2.2 kW 230 VAC 50 Hz
  • Consumption: 13.1 A
  • 2,800 rpm
  • IP-55 protection
CG-900HD ATEX 230/400 V · 900 l/min
10201-CF00000
  • Motor: 2.2 kW 230/400 VAC 50 Hz
  • Consumption: 8.3-4.8 A
  • 2,800 rpm
  • IP-55 protection
