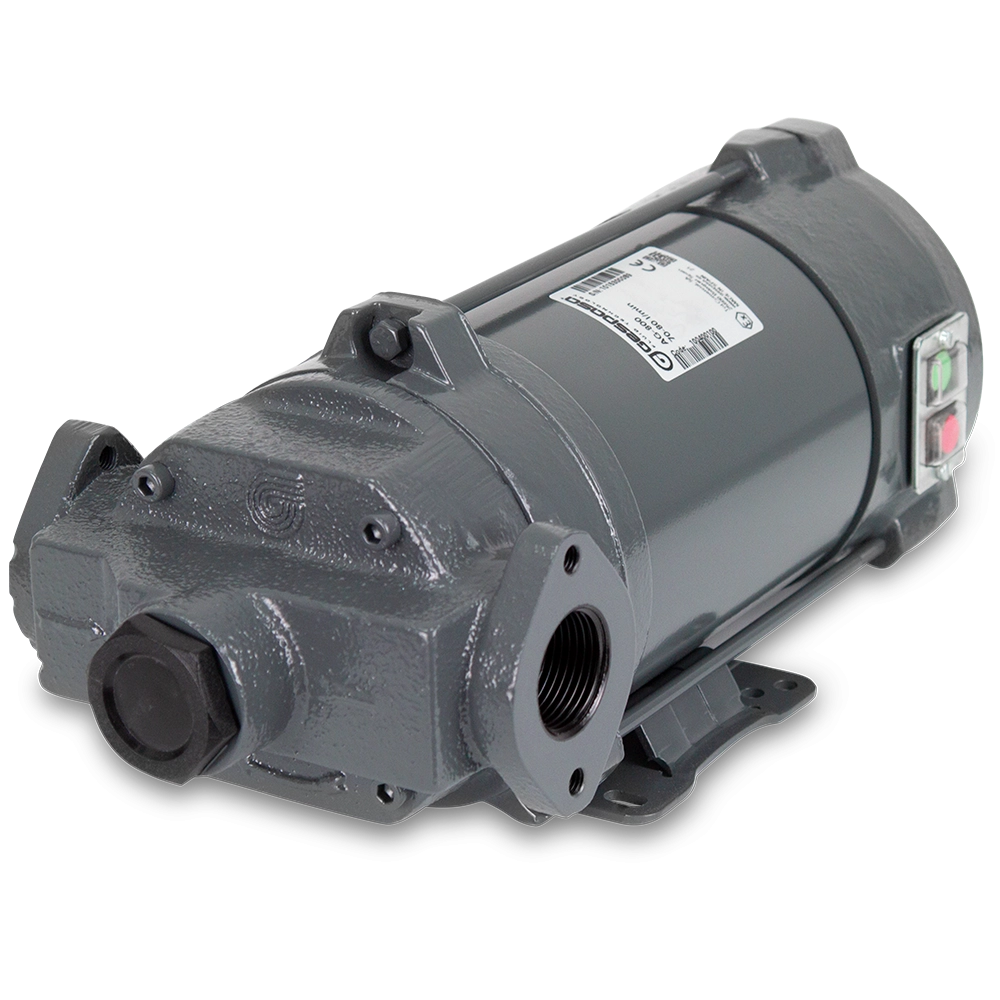

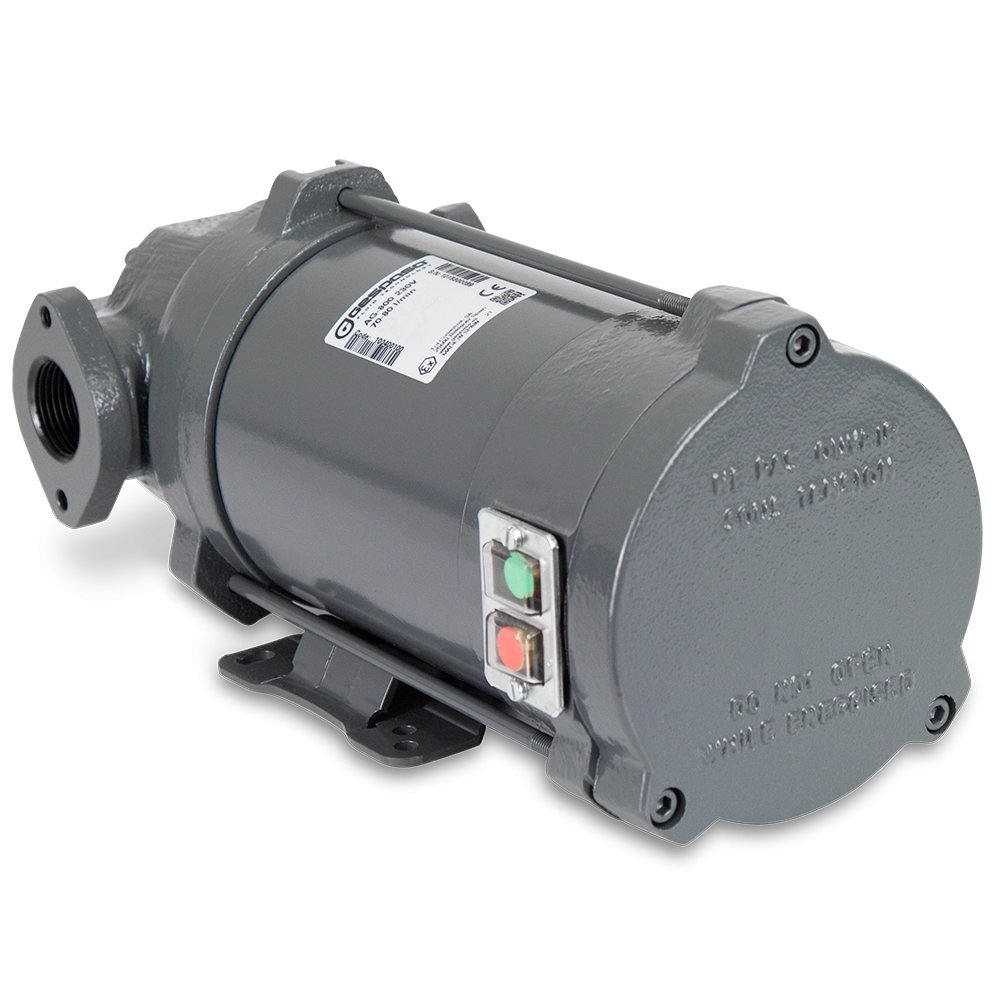

AG-800 230 VAC

EExd · 0.37 kW · 80 l/min

Dizel Dizel
Benzin Benzin
AG-800 230 VAC 70-80 l/min
10040
  • Self-suction - self-priming, explosionproof, eccentric with self-adjusting blades
  • With recirculation bypass
  • Suction: 2.7 m
  • Priming pipe suction: 5 m
  • Free flow: 70-80 l/min
  • Consumption: 2.3-3.5 A
  • Motor: 0.37 kW 230 VAC 50 Hz single-phase EExd
  • 1,430 rpm
  • S2 30´ operation
  • IP-55 protection
  • Operation temperature: -10 ºC · +40 ºC
  • ATEX Class: II2G
  • Protection mode (own supply): Ex h IIB T4 Gb
  • With thermal protector
  • Connection: through F1" (BSP) threads and flanges
  • ON/OFF switch
  • 3 m cable
  • Anti-rust treatment
Size and weight (approx.):
  • Size: 350x165x155 mm (length x width x height)
  • Weight: 17,4 kg
Optional:
