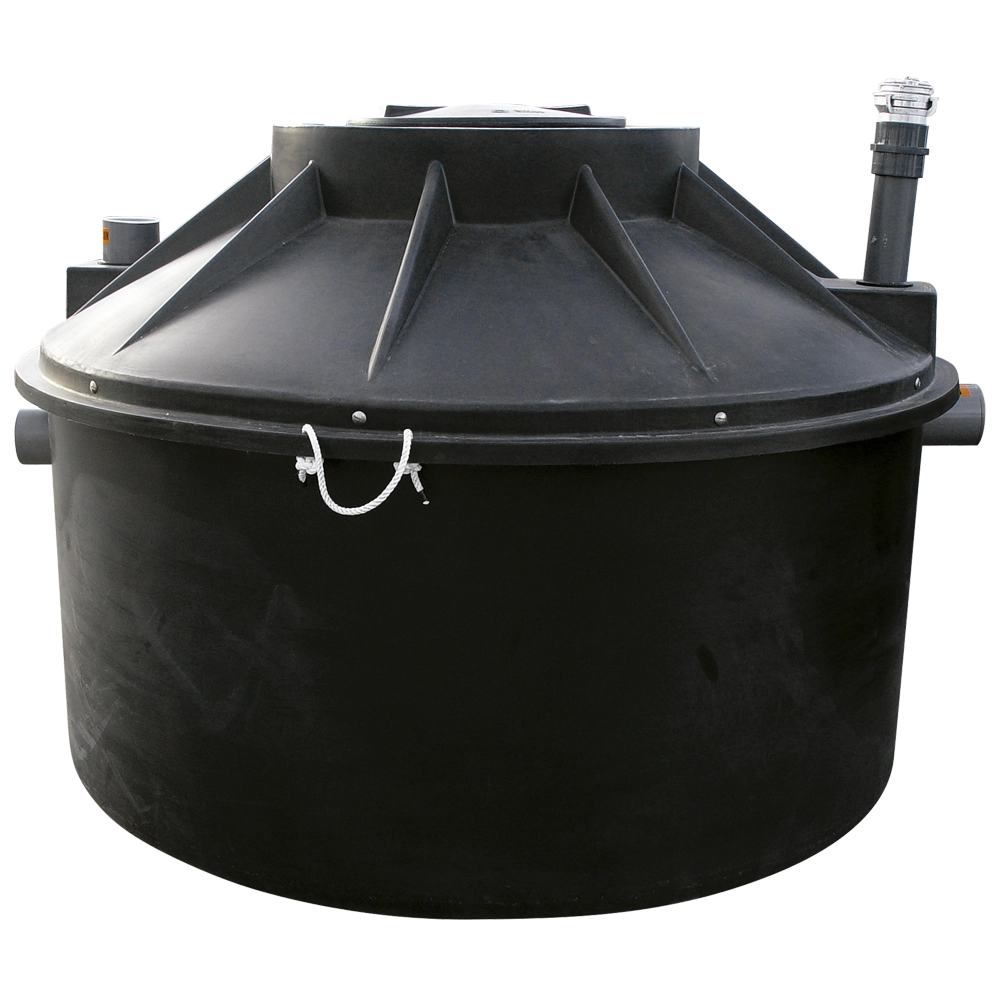

Hydrocarbon Separators

  • It is an equipment made for retaining the hydrocarbon in suspension that could be in dirt waters. It is obligatory headed by a decanter that will retain the heavy material.
  • The Spanish Water Law of 1985 and the corresponding local regulations forbid the spill of lubricant, oil and hydrocarbon, new or waste, in the surface, ground waters or in sewers.
  • The hydrocarbon separators with coallescing cell are particularly advisable to treat waters before their spill in sensible zones (rivers, lakes, seas, etc.) or when the local regulation ask for some results higher than it is usual. These separators comply with the prEN858 European Regulation, separators of Class I (spill < 5mg/l).

Features:

  • Retention capacity: 10 litres per l/s of nominal flow
  • Treatment capacity: 1 to 15 l/s
  • Decanter volume: 200 litres per l/s of nominal flow
  • Output: 99,88% (lower than 5 mg/l) for a density of 0,85
SHDOC2-1-03 hydrocarbon separator · Flow: 3 l/s
801905003
SHDOC2-1-06 hydrocarbon separator · Flow: 6 l/s
801905004
SHDOC2-1-08 hydrocarbon separator · Flow: 8 l/s
801905005
SHDOC2-1-10 hydrocarbon separator · Flow: 10 l/s
801905006
SHDOC2-1-15 hydrocarbon separator · Flow: 15 l/s
801905007
 Weight (kg)Height (mm)Diameter (mm) Decanter Volume (litres)Separator Volume (litres)
SHD0C2-1-031301,1701,600656380
SHD0C2-1-062251,5001,9301,275500
SHD0C2-1-082451,7801,9301,730700
SHD0C2-1-103051,5802,4002,0101,030
SHD0C2-1-153401,9302,4003,0201,530
SH2/6645/01 hydrocarbon separator · Flow: 1.5 l/s
801905018
Kohlenwasserstoffabscheider SH2/6645/03 · Durchfluss: 3 l/s
801905019
