Static Tanks
Tanklar / Static Tanks / COMPLETE STORAGE KITS

COMPLETE STORAGE KITS

DOUBLE WALL 3,000-15,000 litres

Dizel Dizel
  • Compact petrol installation for the diesel storage and (own consumption) supply to vehicles, heatings, forwarders, agricultural cooperatives...
  • Constructed and assembled following the general criteria of the Petrol Installation Regulations and the MI-IP03 / IP04 Complementary Technical Instruction (Rule)
Double wall KIT-3000 without pumping kit
  • Dim. (approx.): 2,510x2,040xØ1,500 mm (LxWxH)
  • Weight (approx.): 477 kg
Double wall KIT-5000 without pumping kit
  • Dim. (approx.): 2,510x2,040xØ1,900 mm (LxWxH)
  • Weightt (approx.): 852 kg
Double wall KIT-10000 without pumping kit
  • Dim. (approx.): 4,050x2,500xØ2,150 mm (LxWxH)
  • Weight (approx.): 1,410 kg
Double wall KIT-15000 without pumping kit
  • Dim. (approx.): 5,500x2,500xØ2,150 mm (LxWxH)
  • Weight (approx.): 1,940 kg

INSTALLATION ELEMENTS

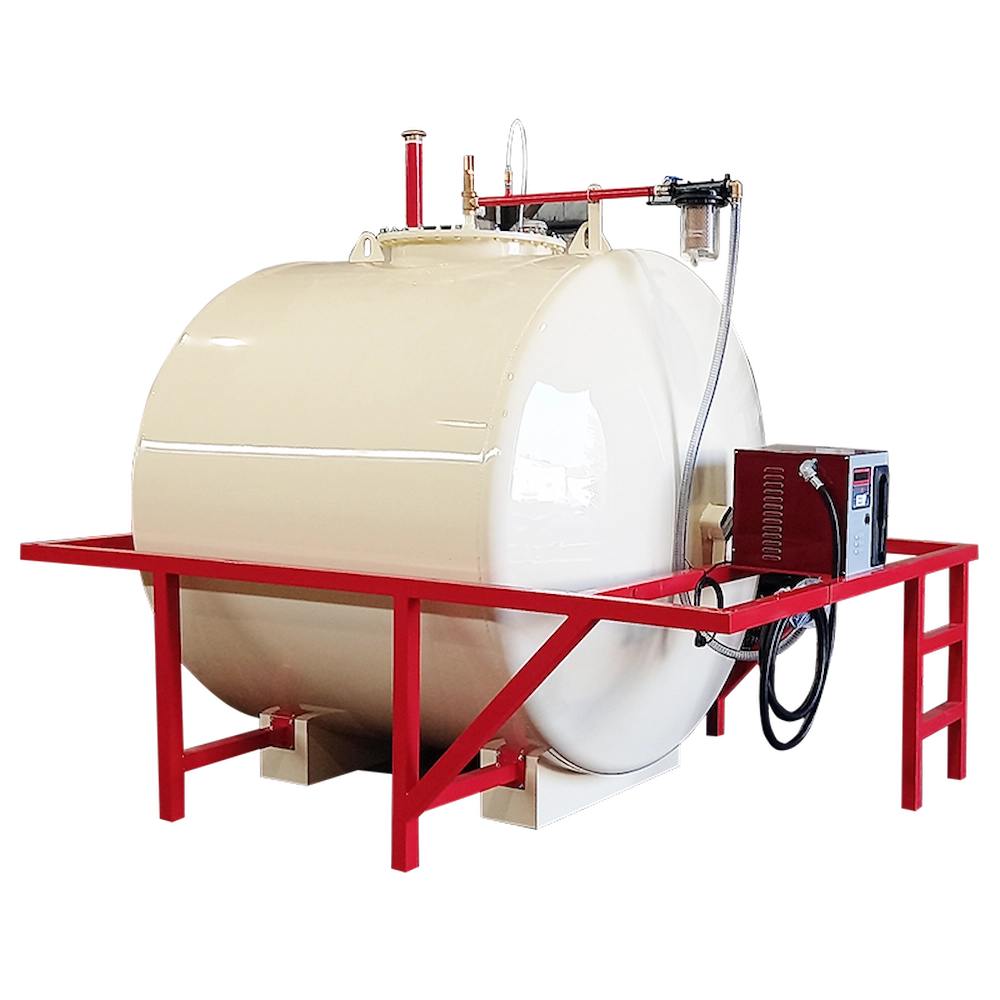

1. Double wall tank

  • Double wall steel tank of horizontal cylindrical shaft for its aerial installation, manufactured under UNE rules:
    • UNE 62351-2 capacity up to 3,000 litres
    • UNE 12285-2 capacity higher than 3,000 litres
  • Equipped with: welded support frame, manifold in manhole and vacuum leak system. External non-corrosive finish, white polyurethane with special outdoors bright.
  • 400 mm vent valve set - 2" T valve or fireproof valve with buil-in grid
  • 1" suction set

2. Crash-proof frame

  • Metallic structure protecting the tank against crashes; it has a stair to access the manhole with a non-slip flat and a security rail (in tanks higher than 3,000 litres)
  • Nozzle hanger

*Extinguisher not included

OPTIONAL ACCESSORIES

  • Mechanical or electronic COMPACT supply kits for the diesel supply and measurement and with the possibility of the GK-7 fleet controller installation.
  • There is the option of fitting additional elements or modifying those that alreay has under the customer's request in order to be used for an specific use whenever it complies with the applicable regulations.
  • Installation of other pumping kits of different flows (e.g. 50, 80, 150 l/min), more or less number of delivery hose metres, different types of nozzles and filtering elements
  • FG-100 transparent microfilter · water repellent · 5 µm (micron)
  • 4" overfill valve from the KIT-5000 litres
  • Vk-80 3" brass charging hole with chain in the cover
  • Measuring system: level indicator with guide tube or slide
  • Overfill alarm
  • Pressure relief valve
  • 1" Adjustable anti-siphon valve
