Su / Meters / MGE-110BLUE · ELECTRONIC

MGE-110BLUE · ELECTRONIC

10-110 l/min · ±0.8 % · F1"

Su Su
Adblue/Def Adblue/Def

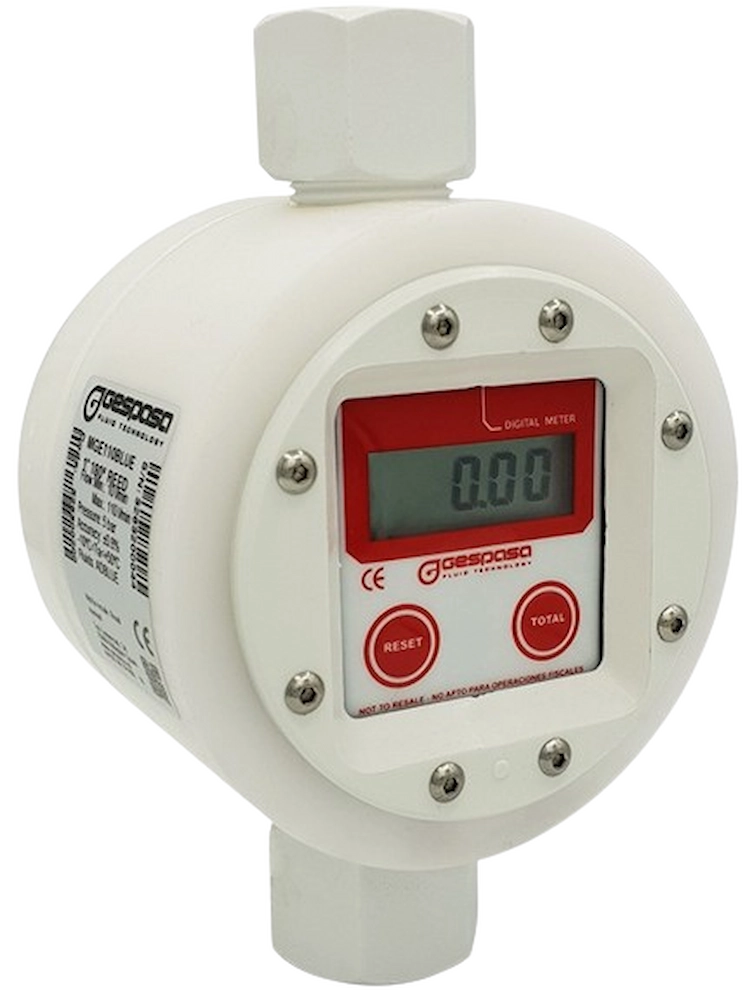

MGE-110BLUE 1" · Electronic meter
32642-CF00000
  • Electronic meter with measuring chamber, with high accuracy oval gears, and Display-LCD. Its measuring chamber allows measuring AdBlue/DEF, fuel, lubricant ... (please ask for other fluids). Made of heavy-duty plastic material and temperature change tolerance.
  • It can be fitted outdoors.
  • It has a frontal facing with joint, avoiding the electronics damages if there is any fluid contact.
  • Removable facing to make easier the battery replacing.



Technical data:

  • Flow (approx.): from 10 to 110 l/min
  • Fluid density: 1-200 cSt
  • Tropicalised electronics
  • 5-digit totalizer
  • It saves the litres of the last service.
  • IP-66 protection
  • Maximum pressure: 5 bar
  • Breaking pressure: 10 bar
  • Min./max. temperature: -10 ºC / +50 ºC
  • Max. Humidity: 95 HR
  • Accuracy: ±0.8 %
  • Inlet/outlet connection thread: F1" GAS (BSP) with PA adapters
  • Feeding by button battery of long duration
  • Low battery display
  • It has calibration parameters and stored litre totalizer in a PERMANENT MEMORY.
Size and weight (approx.):
  • Dim.: 125x87x210 mm (Ø x width x height)
  • Weight: 1.35 kg
