GENIUS · LEVEL INDICATOR

Lubricant Lubricant
Adblue/Def Adblue/Def
Dizel Dizel
GENIUS 15-32 VDC · Level indicator
25737-CF00003
GENIUS 110 VAC · Level indicator
25737-CF00006
GENIUS 230 VAC · Level indicator
25737-CF00000

*It is suitable for diesel and non-corrosive fluids.

GENIUS-INOX 230 VAC · Level indicator
25737-CF00002

*It is suitable for Adblue/DEF or Phytosanitary products.

GENIUS-LUBE 230 VAC · Level indicator
25737-CF00001

*It is suitable for lubricant with 30-1000 cSt viscosity.

USE

  • GENIUS is a level monitor in atmospheric tanks.
  • The level measurement is made measuring the static pressure of the liquid height through a tube into the tank.
  • It allows to measure the level in rectangular and cylindrical, horizontal or vertical, tanks with a maximum height of 4 m.
  • Level reading in height (mm or inches) or volume (litres or gallons)
  • It is suitable for liquids with a maximum viscosity of 30 cSt.
    * It is not suitable for ATEX classified zone installation.
  • PC communication with desktop software GKSuite or communication to DieselPlus cloud software.
  • Communication to any PLC or external device via MODBUS RTU

TECHNICAL FEATURES:

  • Power: 230 VAC · 110 VAC · 15-32 VDC
  • IP-55 Protection
  • Accuracy: ±1 % in height
  • Resolution: 5 mm

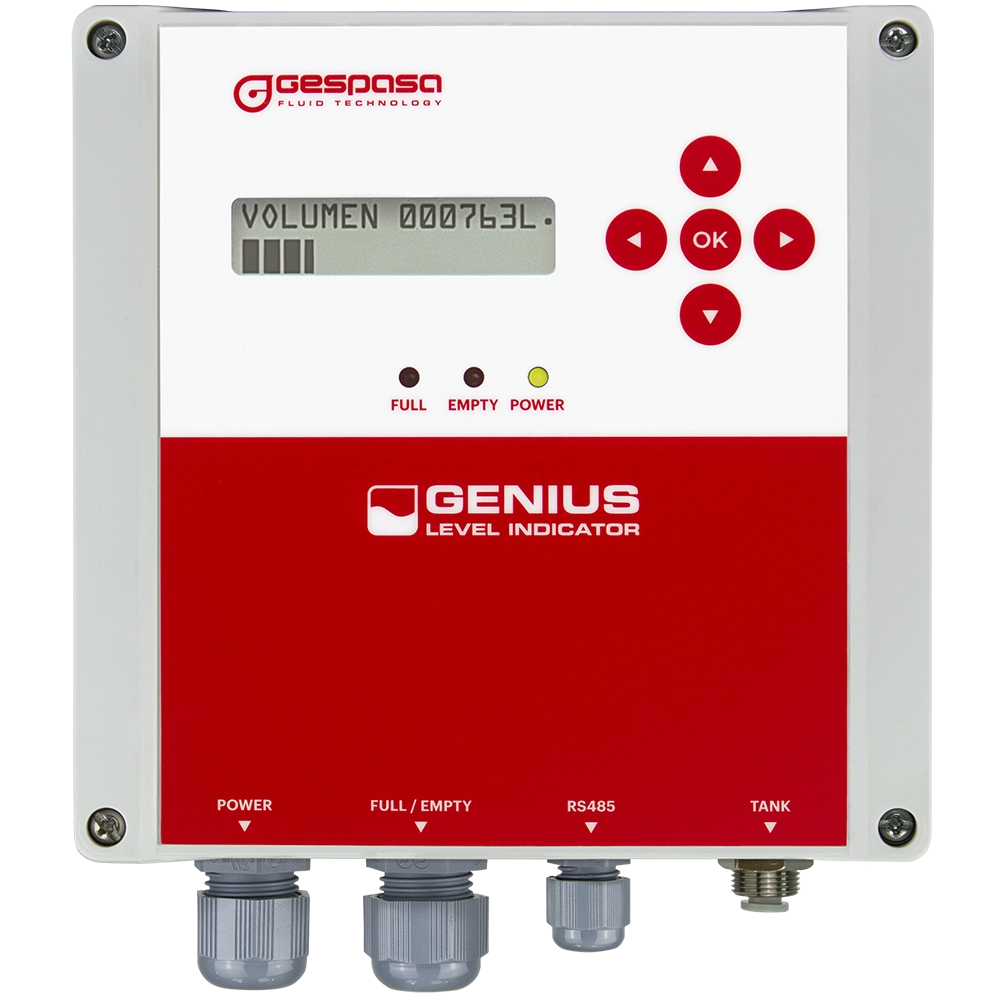

COMPOSED OF

Control unit

  • LCD display of 16x2 characters
  • 5-key keyboard to access the kit menu

Indicator set

Tube to install on the tank

Connections and cables

  • Cable 230 VAC 50/60 Hz · 110 VAC · 15-32 VDC
  • Connection cable of the two outputs for full or overfilled tank alarm and empty or minimum level
  • RS-485 communication cable
  • Connection for the tube installed in the tank

Acoustic alarm in its inner of 90 dB and 2,400 Hz

Configuration of:

  • Tank type and dimensions, calibration
  • Level alarms
  • Level reading type
  • Measuring unit
  • According to the programmed alarm levels, the control unit will activate or deactivate the contacts, acting as a remote switch for the alarm device operation or the connected control kit operation.
  • PC communication kit through the RS-485 communication port
  • Connection to PC or GK-7 controller or similar




Size and weight (approx.):
  • Size: 160x60x185 mm (length x width x height)
  • Weight: 2.5 kg
