Pneumatic Pumps
Lubricant / Pneumatic Pumps / GM-5

GM-5

ratio 5:1 · 6-8 bar · 28 l/min

Lubricant Lubricant
  • Pneumatic pumps specially suitable for the oil transfer with medium-high viscosity (SAE 15/140) and anti-freeze for medium-long distances (150-200 m).
  • The air pressure may vary between a minimum of 3.5 bar and a maximum of 10 bar.
  • They have built-in a fixation drum thread of R2" and M64x4 (also called bung adapter).
  • Using the suitable accessories these pumps can be hung up on the wall or assembled on drums, containers or mobile trolleys.

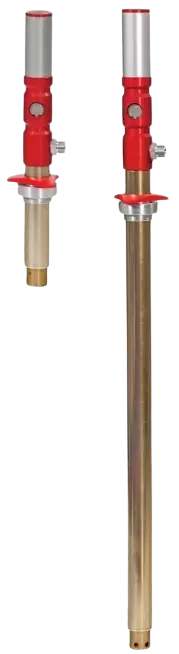

GM-5 · Pneumatic pump for wall assembly
12061
GM-5 · Pneumatic pump for 200-litre drum
12081
Oil delivery capacity28 l/min
Ratio5:1
Working pressure6-8 bar
Air consumption250 l/min
Air inlet connectionF1/4" G
Oil outlet connectionM1/2" G
Noise level80 dB
Shank diameter42 mm
Shank length

215 mm (wall)

940 mm (drum)

Weight

5.86 kg (wall)

7.71 kg (drum)

Box volume

0.007 m³ (wall)

0.016 m³ (drum)
