MGI-40 · PULSER

±0.5% · F1/2"

Lubricant Lubricant
Dizel Dizel

Yeni

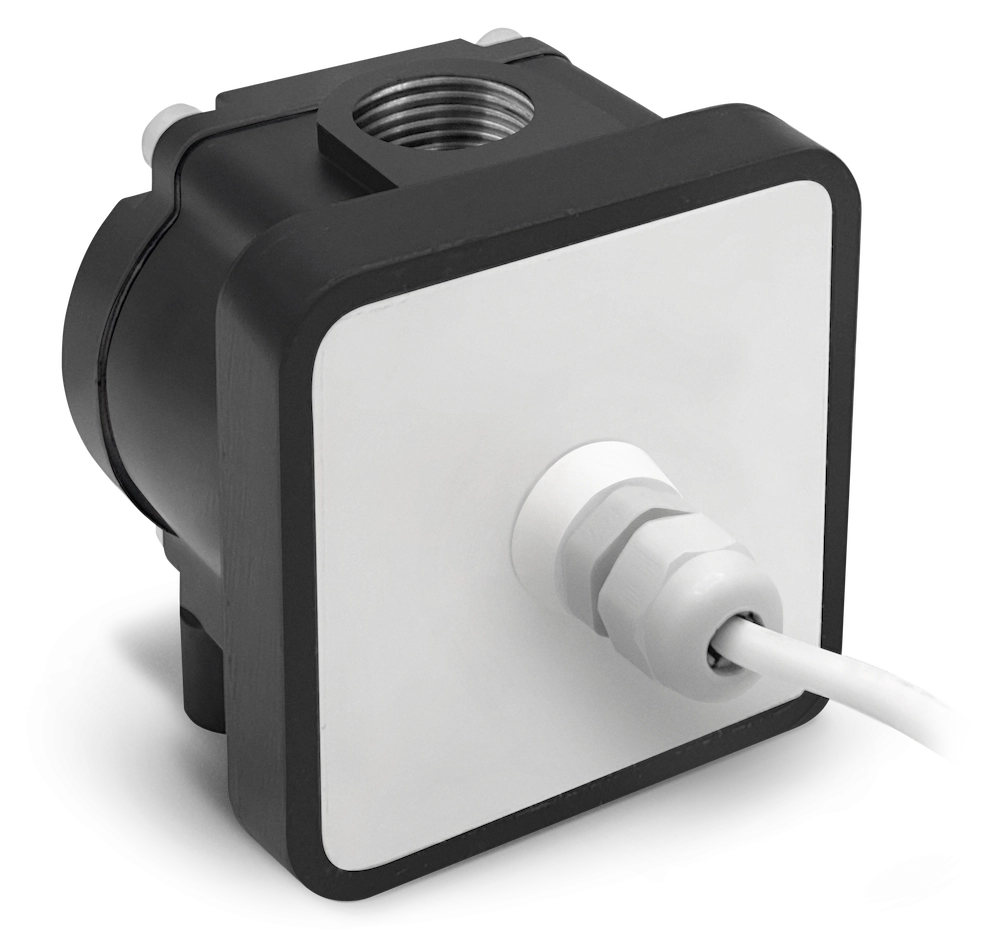

MGI-40 · Pulser
322800100

Pulser for its in-line assembly, making easier the exact information of the fluid management systems.
It is composed of three pulse emitters (REED type) and two magnets fixed to one of the gears.
Because of these 3 pulse emitters, it is possible to choose between 2 channels at 90º or 2 channels at 180º, always depending on the chosen cables.

Technical data:

  • Flow: 2-40 l/min
  • Voltage: 28 VAC/VDC
  • Maximum current: 100 mA
  • Accuracy: ±0.5 %
  • Maximum pressure: 50 bar
  • Min./max. temperature with Reeds: -10 ºC / +90 ºC
  • Two channels: 100 pulses per litre and channel
  • Connection: F1/2"
  • Housing: Aluminium
  • Cover: plastic
Size and weight (approx.):
  • Size: 72x55x73.5 mm (length x witdh x height)
  • Weight: 0.50 kg
