Lubricant / Meters / MGI-180HP

MGI-180HP

10-180 l/min · 150 bar 1" NPT

Lubricant Lubricant

Yeni

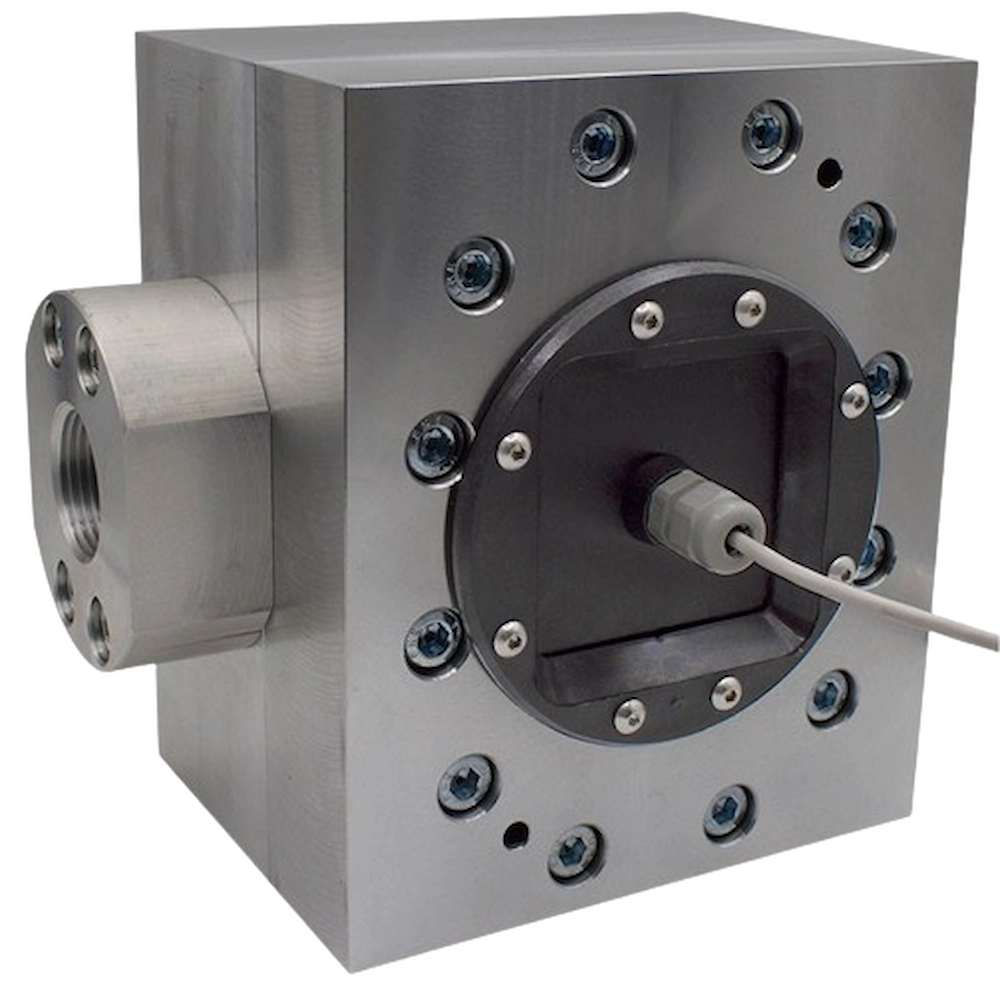

MGI-180HP · High pressure pulser
326500500

Pulser for its in-line assembly, making easier the exact information of the fluid management systems. It is composed of two pulse emitters (REED type).

TECHNICAL DATA

  • Maximum current: 100 mA
  • Maximum voltage: 28 VDC
  • Maximum power: 8 W
  • Flow (approx.): 10-180 l/min
  • Maximum pressure: 150 bar
  • Min./max. Temperature with Reeds - 10 ºC / +90 ºC
  • Accuracy: ±1 %
  • Inlet/outlect connection: F1" NPT
  • Housing and measuring chamber: Aluminium
  • Two communication channels through reeds
  • 11 pulses per litre and channel
Size and weight (approx.):
  • Dim.: 205x140x175 (length x width x height)
  • Weight: 7.45
