Lubricant / Meters / MGE-110 · ELECTRONIC

MGE-110 · ELECTRONIC

5-110 l/min · ±0.5% · F1"

Lubricant Lubricant
Biodizel Biodizel
Dizel Dizel

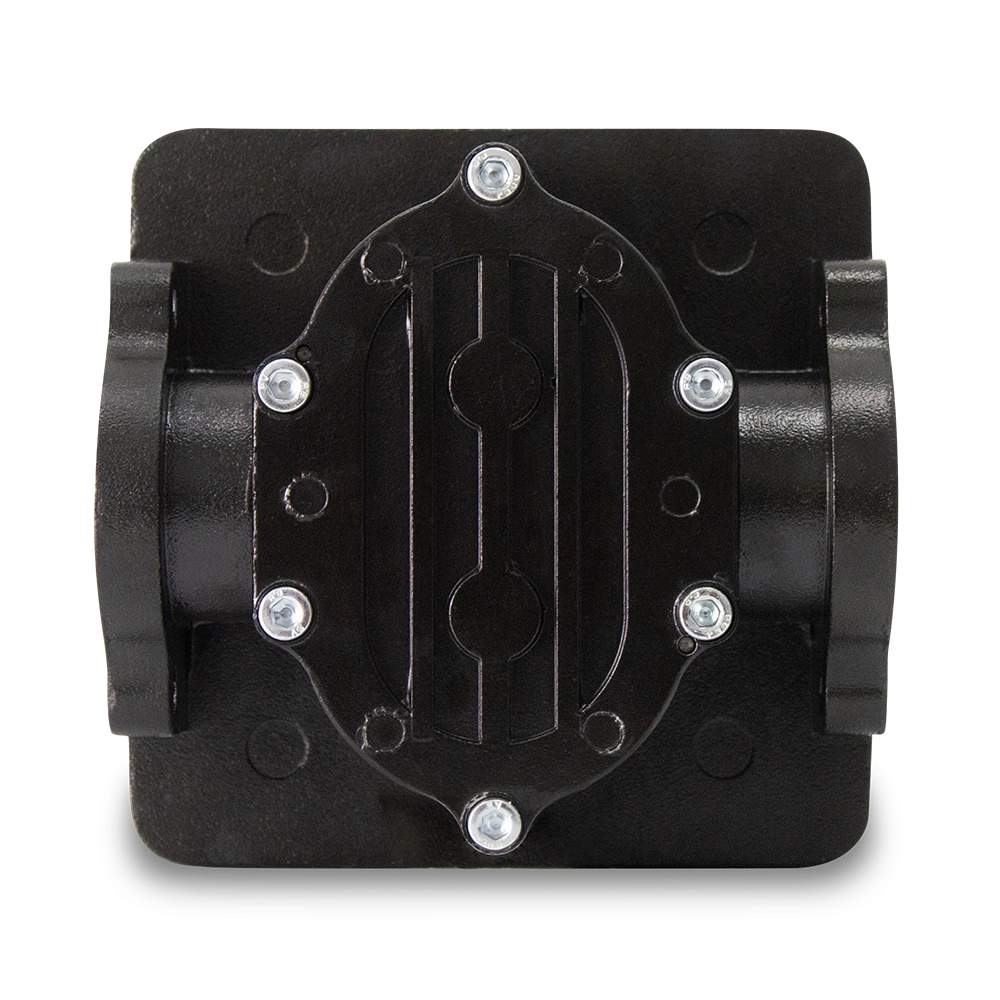

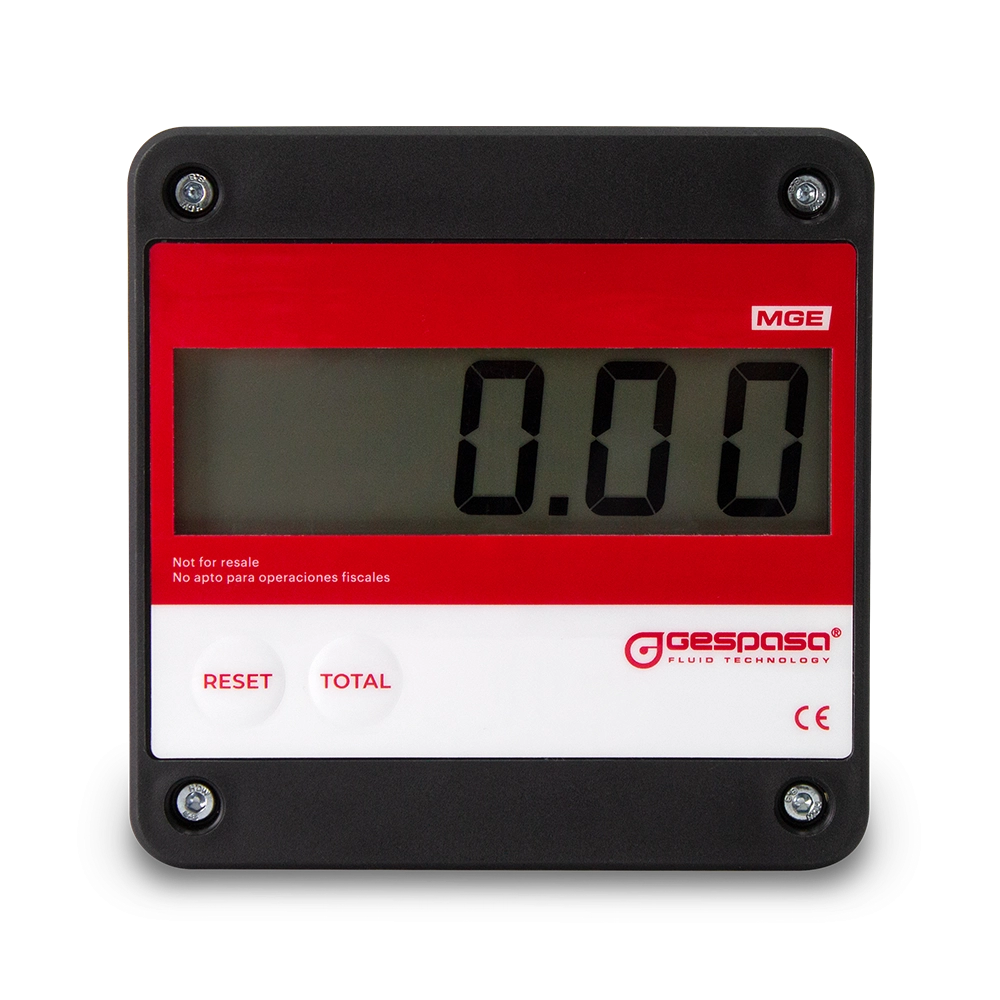

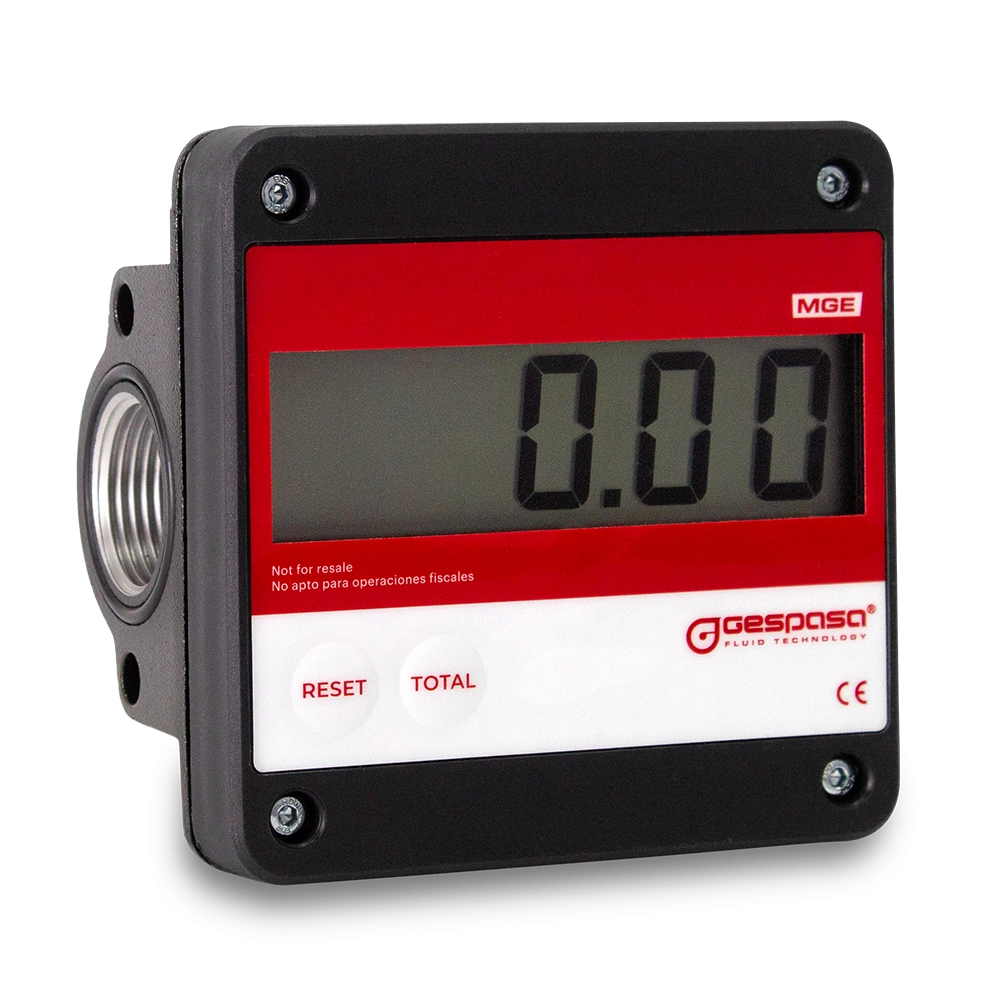

MGE-110 · Aluminium Electronic Meter with oval gears
32600-CF00000
MGE-110 · Aluminium Electronic Meter with oval gears and Viton joints · B100
32600-CF00100
  • It is suitable for diesel and lubricant measurement.

TECHNICAL DATA

  • Body made of aluminium
  • Tropicalised electronics
  • Measurement through oval gear of high accuracy
  • Digital Display of liquid crystal
    • 3 integers and 2 decimals: "999.99"
    • 4 integers and 1 decimal: "9999.9"
    • 5 integers: "99999"
  • Flow (approx.):
    • 5-110 l/min (diesel)
    • 5-80 l/min (lubricant)
  • Fluid density: 2-2000 cSt
  • Accuracy: ±0.5%
  • Maximum pressure: 55 bar
  • Max. temperature: 50 ºC
  • Min. temperature: -10 ºC
  • Connection through F1" thread or flange
  • Button battery of long duration (approx. 4 years, according to its application)
  • Low battery display
  • Calibration parameters and litre totalizer saved in PERMANENT memory
Size and weight (approx.):
  • Dim.: 123x68x123 mm (lenght x width x height)
  • Net weight: 0.850 kg
  • Box dim.: 147x85x140 mm (lenght x width x height)
  • Gross weight: 0.900 kg
