USE

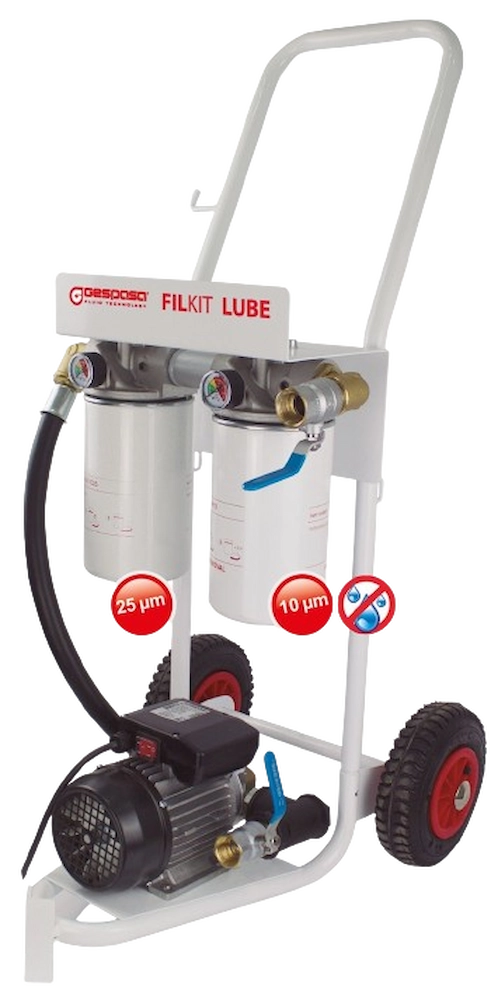

- Mobile filtering kit of 20 l/min adapted in a trolley to fix an electric lubricant pump, EA-88 0.37 kW 230 VAC and two-stage filtering group, composed of 2 SPIN-ON microfilters with differential manometer for lubricant. This set has F1” BSP threaded connections both the inlet and the outlet, so as a manual
ball valve. - Kit intended for the filtration of solid impurities and the water absorption in lubricants
COMPOSED OF
- Support in a metallic tube with handle and wheels to circulate both indoors and outdoors (light and easy handling)
- Support to reel the hose and hang the nozzle
- EA-88 0.37 kW 230 VAC self-suction gear pump with 3 m connection cable · IP-55 Protection · Max. bypass pressure: 5-6 bar
- F1“ BSP Shutoff valve in the pump inlet and in the filter outlet
- FUP-1 Prefilter in the pump inlet
- SPIN-ON headings with 1 1/4” BSP inlet-outlet connections and 1 1/2“ 16 UN or 1 1/4” BSP filter connection
- Two-stage filtering:
- Microfilter of 25 μm (micron)
- Microfilter of 10 μm (micron) · water absorbent
Weight (approx.): 24.5 kg
