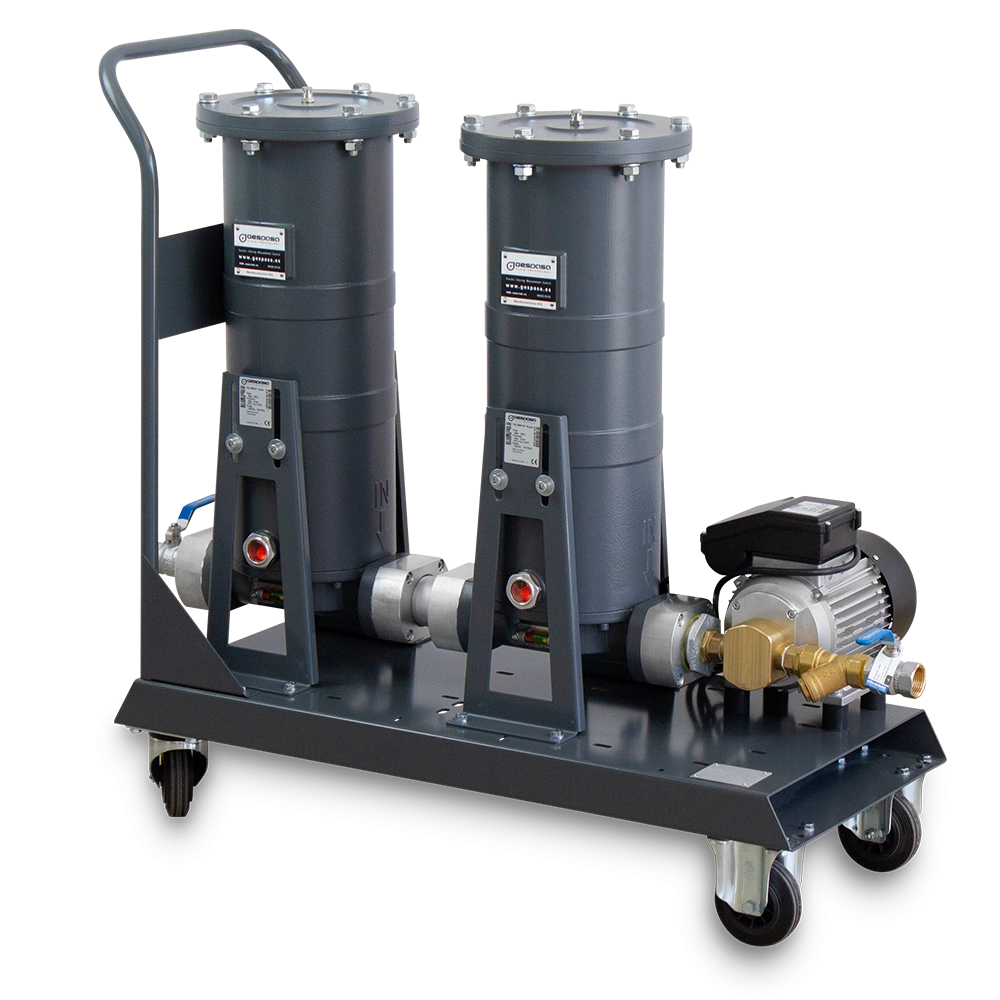

- Two-phase filtration kits designed for the lubricant filtering of buried or aerial tanks, getting the microfiltered fluid free of impurities.
- First filtration phase for water absorption and impurity filtration of 3 µm (micron))
- Second filtration phase for water absorption and impurity filtration of 15 µm (micron)
- This filtration process ensures better filtration and greater durability of the filter cartridges.
- Special superficial interior and external finish against corrosion.
- Possibility of changing the configuration in the efficiency of the filter cartridges to adapt to the quality at the entrance.
The kits are composed of:
- 1 mobile platform with handle
- 1 EA-88 0.37 kW 230 VAC gear pump
- 2 manual drain valves to eliminate the residual air
- 2 differential manometers which show when the filter has to be replaced or cleaned
- 2 outlets for the filtered liquid sampling
- 2 inlets for the connection of compressed air to clean the filters without being disassembled
- 1 final element of absorbent paper of 15 µm (micron)
- 1 final element of absorbent paper of 3 µm (micron)
Size and weight (approx.):
- Dim.: 1,100x490x930 mm (length x width x height)
- Weight: 75 kg
