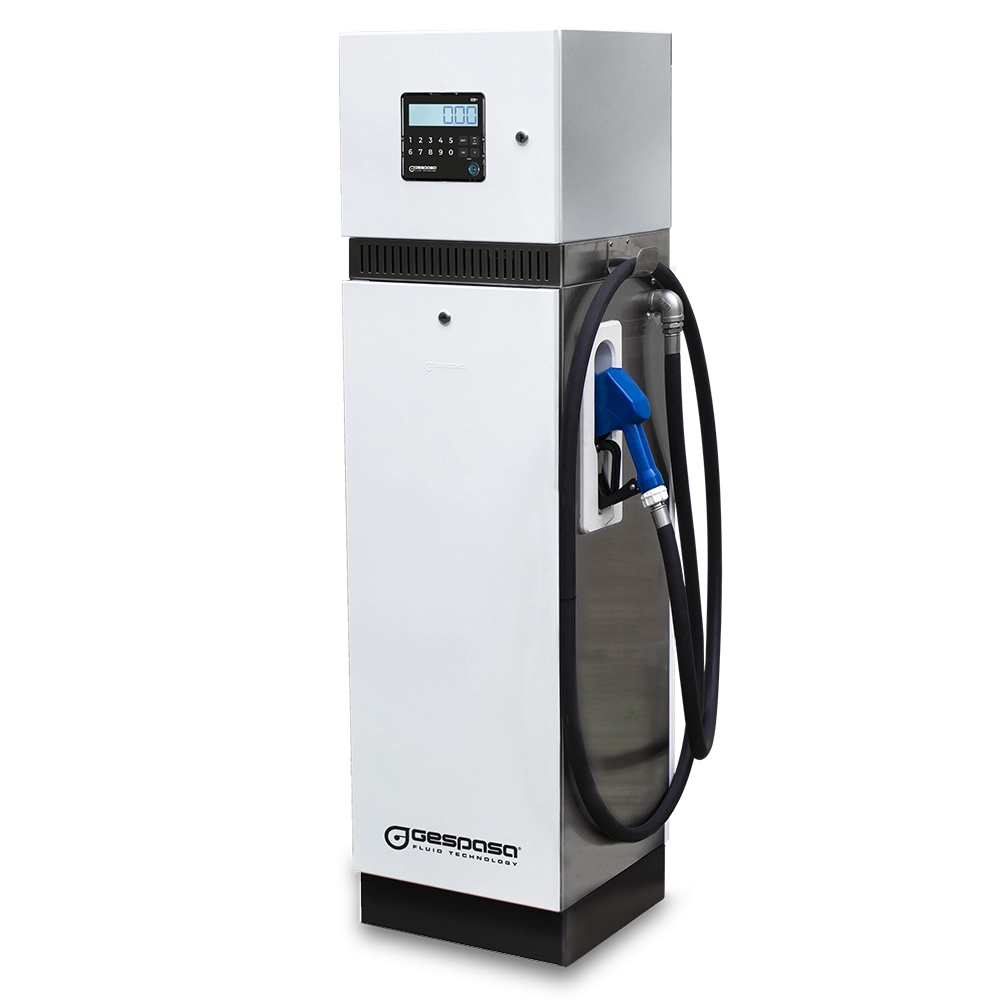

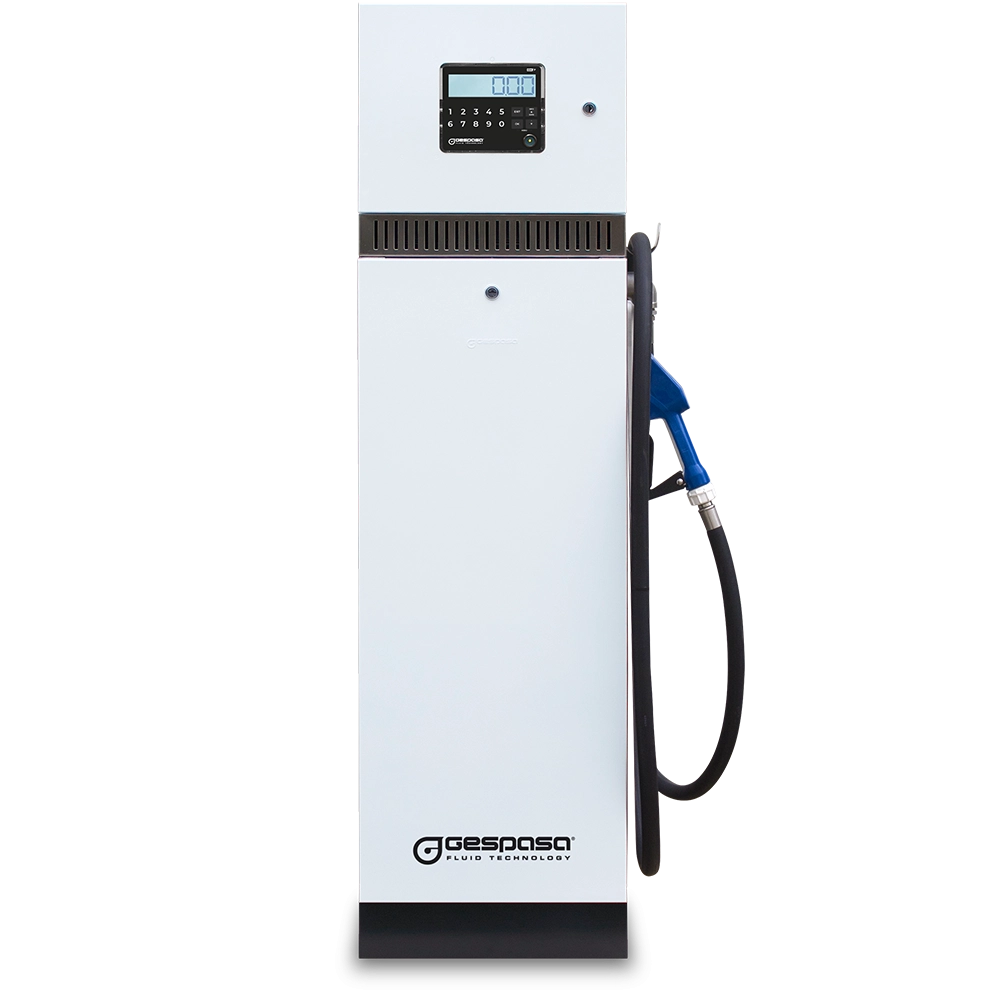

TOTEM BLUE K · SUPPLY KITS WITH CONTROLLER

*Kit without pump to be connected to a submersible or displaced pump

*Kit without pump to be connected to a submersible or displaced pump

• The TOTEM BLUE K electronic supply kits with controller are suitable for the AdBlue/DEF supply, measurement and control.
• These kits are manufactured with compatible material with this type of fluid in order to avoid damages both the liquid and the parts that are in touch with it.
• The GK-7 controller allows the supply only to authorised personnel and memorises all the services that the users and/or the vehicles do. The dispenser has connection to PC with software for consulting and managing the data of the users, the vehicles and the done supplies.

It is composed of:

CHASSIS

• Column for its direct fixation to the ground without bases or additional accessories
• Main body made of stainless steel, doors and heading made of steel with polyurethane paint
• Interior and exterior treatment to protect against corrosion
• Weatherproof

PUMP

• BD-30 230 VAC Diaphragm pump

PULSER:

• MGI-40BLUE · Accuracy ±0.8 %

CONTROLLER:

• GK-7 own consumption

NOZZLE

• PA-60U automatic

HOSE

• 4 m Ø19 mm delivery hose special for AdBlue/DEF
• Nozzle hanger with automatic switch to stop and start the pump

Size and weight (approx.):

• Dim.: 460x400x1,500 mm (LxWxH)
• Weight: 54 kg



  GKSuite

  GKSuite Software

  Management of supplies, users, vehicles and levels of your tanks

  USE

  • The GKSuite Software is the application to connect the GK-7 controller or the GENIUS level gauge to your PC or server.
  • It allows to manage the supplies, the users, the vehicles and the levels of your tanks.
  • It is required a communication kit that includes the GKSuite Software and the required converter for the connection of the GK-7 controller or the GENIUS level gauge to your PC.

  FEATURES

  • MANAGE, CONTROL AND LIMIT ACCORDING TO YOUR NEEDS

  Establish limits or balance by user, create groups of users and/or vehicles and get the supply lists by user and/or vehicle. It also allows the integrated management of the GENIUS level gauge.

  • EASILY CONFIGURABLE ALARMS

  They allow to control the tank level, the irregular uses, the consumption of the vehicles or other indicators you need. If you want, it is possible to receive the notice in your email.

  • AUTOMATIC COMMUNICATION WITH THE GK-7 CONTROLLER

  The communication between the GKSuite and the GK-7 is bidirectional. The data are typed in the PC and they are transferred to the GK-7. The configuration can be made manually or configure the GK-Suite so that it automatically communicates regularly.

  • CLIENT-SERVER VERSION

  The GKSuite C/S version allows its installation in a server for a simultaneous access of different users.

  • INTEGRATION WITH YOUR SOFTWARE OR ACCOUNTING SYSTEM

  The database of the GKSuite C/S is connected easily and automatically to other database.

  • CONFIGURATION AND CUSTOMISATION OF THE SOFTWARE

  Configuration of the language, currency, measurement unit (litres or gallons), identification system, ... It allows to assign different permissions of the different users of the software and several other options.

  FUNCTIONS

  Configuration

  • All the configuration can be made from the PC.
  • It allows to add your logo in the lists.
  • It allows to define how your GK-7 is going to work.

  Users and vehicles

  • Create groups.
  • Introduce or delete data.
  • Assign a limit or balance per user*.

  *not compatible with communication via iButton.

  • Assign the fluids to be supplied to the vehicle.
  • Assign the regular consumption of the vehicle.

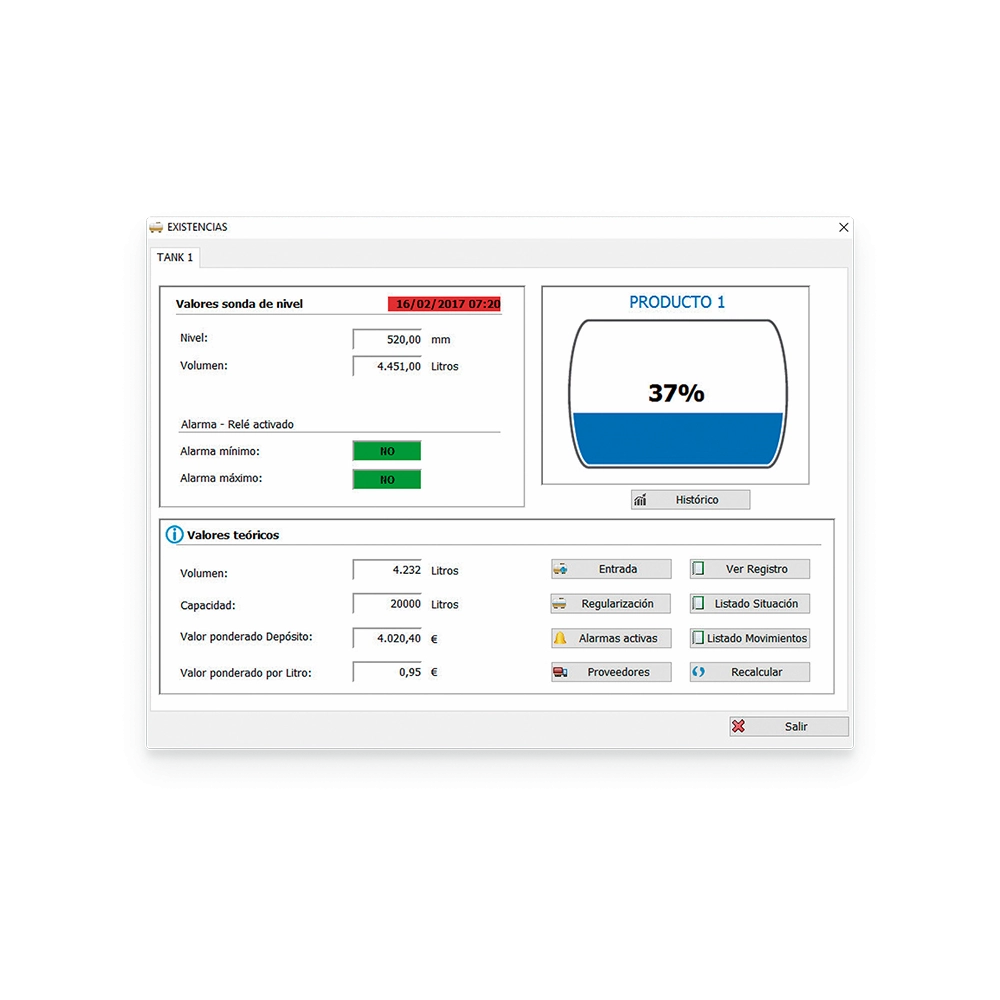

  Stock

  • Consult the litres there are in the tank and their cost.
  • Type the fuel purchases.
  • Establish level alarms.
  • View the teorethical level or, by installing the GENIUS level gauge, the real level reading.

  Operators

  • Assign different users of the software with different profiles.
  • Limit the use of different areas to certain user.

  Alarms

  • Configure warnings of an irregular use.
  • Establish warnings for programmed actions: maintenance, tank filling, etc.
  • Receive a warning email: when the minimum level is reached, when the tank has been filled, when a user exceedes the supply limit, and so on.

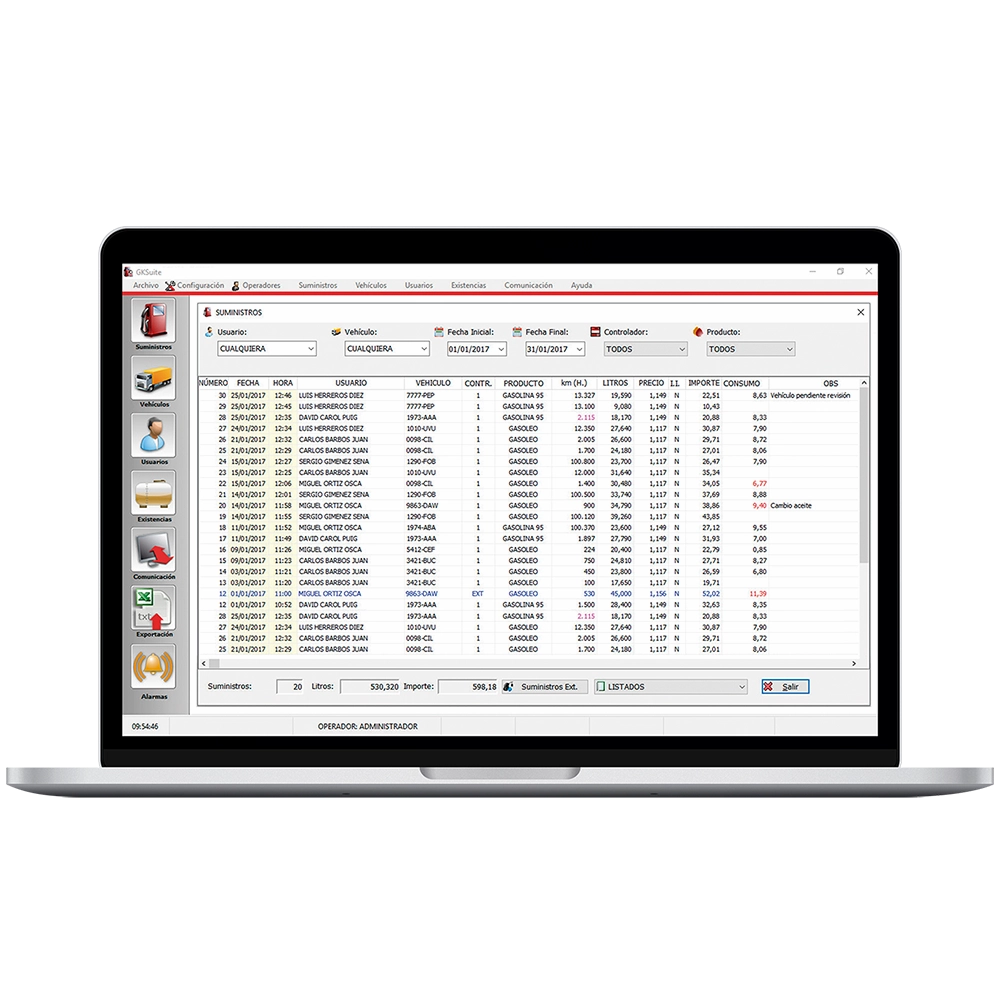

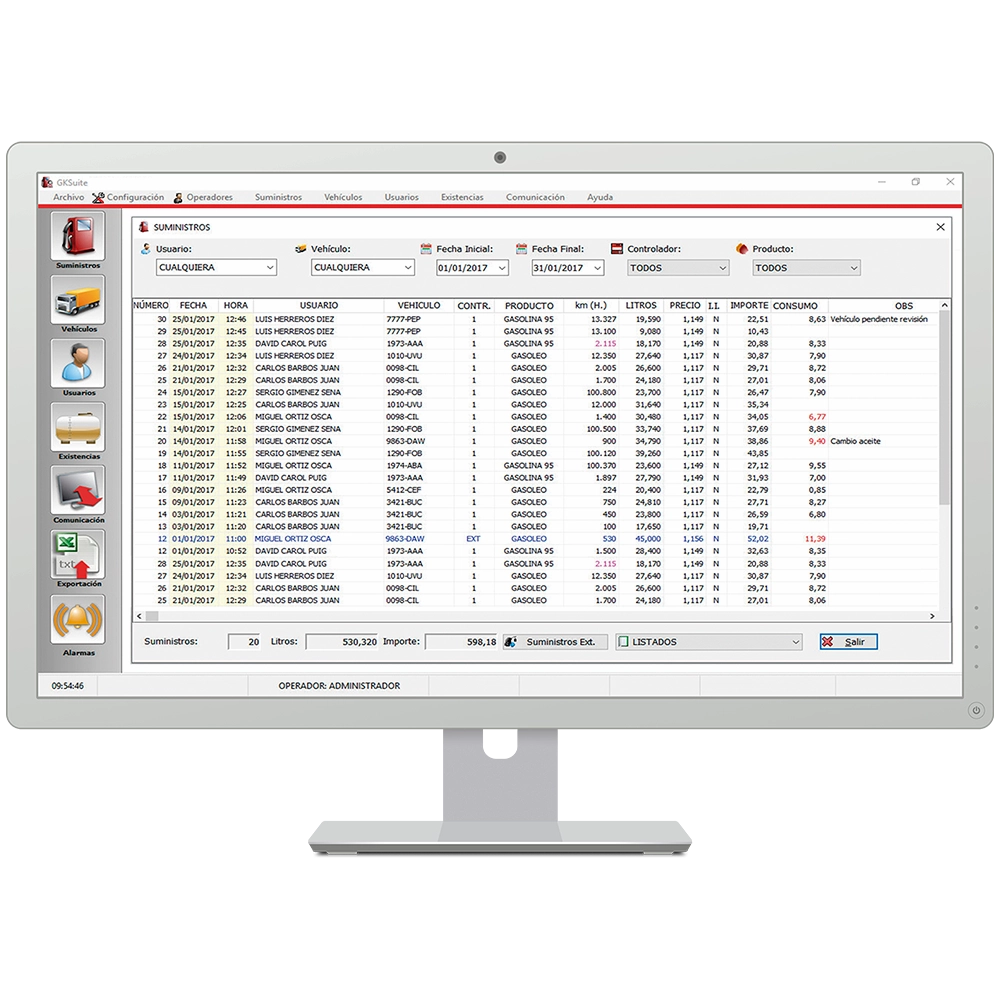

  Supply list

  • Customise your lists by user, vehicle, groups.
  • Summarised or detailed lists of the supplies and their real cost.

  Data Export

  • All the data and lists can be exported to files with *.txt or *.csv format
  • Input or external supplies
  • It is possible to type the supplies you have made in other service station or dispenser.
