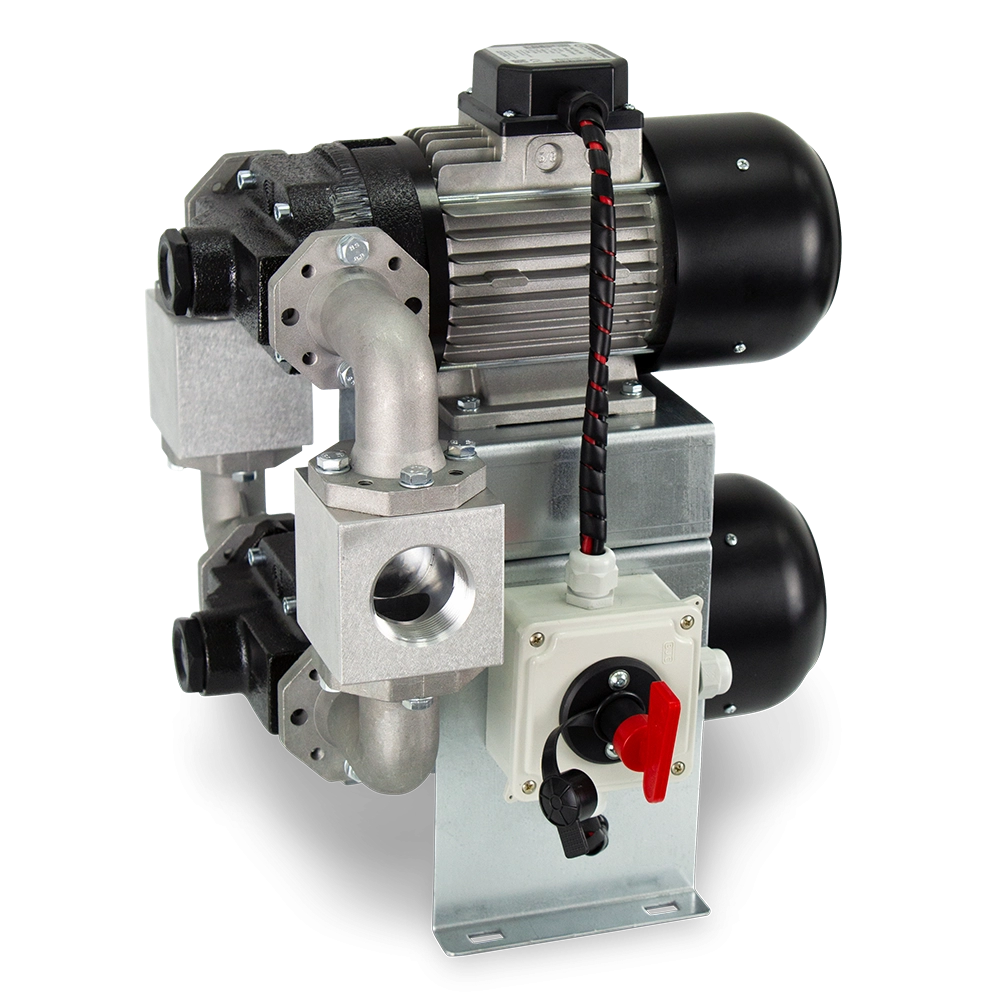

MONSTERPUMP-200 24 VDC

Self-suction with vanes 0.74 kW · 200 l/min

Dizel Dizel

Yeni

MONSTERPUMP-200 24 VDC
000900000


APPLICATION

  • Self-suction, self-priming pump with eccentric vanes

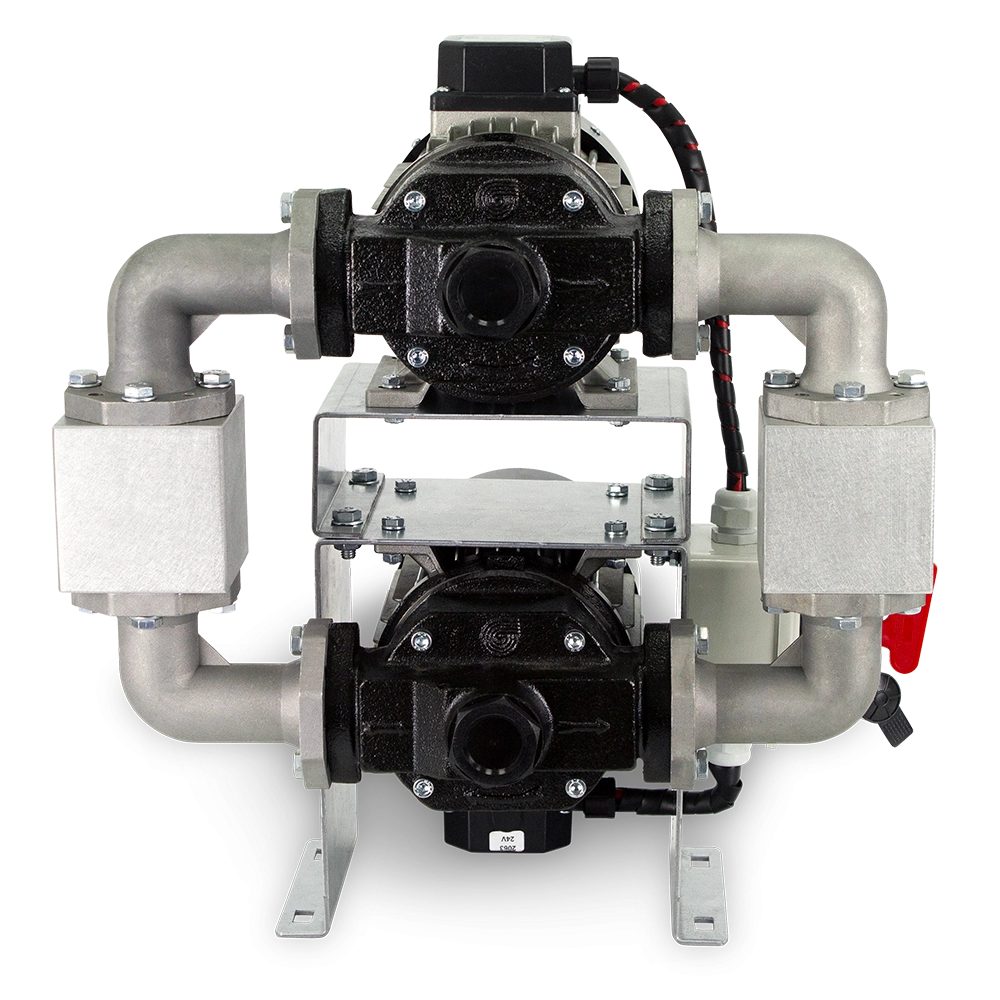

  • Composed of two pumps joined by a manifold (on demand)
  • Suitable for the transfer of diesel fuel, at high flow rates, in areas where a connection at 230 VAC or 110 VAC is not possible.

TECHNICAL FEATURES

  • Flow: 200 l/min
  • Consumption: 30-47 A 24 VDC
  • Pressure: 1.4 bar
  • Motor: 2x0.37 kW 24 VDC, dust protected, self-ventilated
  • Tropicalised
  • Continuous operation
  • IP-55 protection
  • 1,500 rpm
  • Equipped with recirculation bypass
  • Suction: 2.7 m
  • Priming pipe suction: 5 m
  • Connection using M1 ½" threads (BSP). The manifold can be built according to specific needs on demand.
  • Junction box with key switch
  • Anti-rust treatment

Dimensions and weight (approx.):

  • Dim.: 440x410x460 mm (LxWxH)
  • Weight: 35 kg

Optional

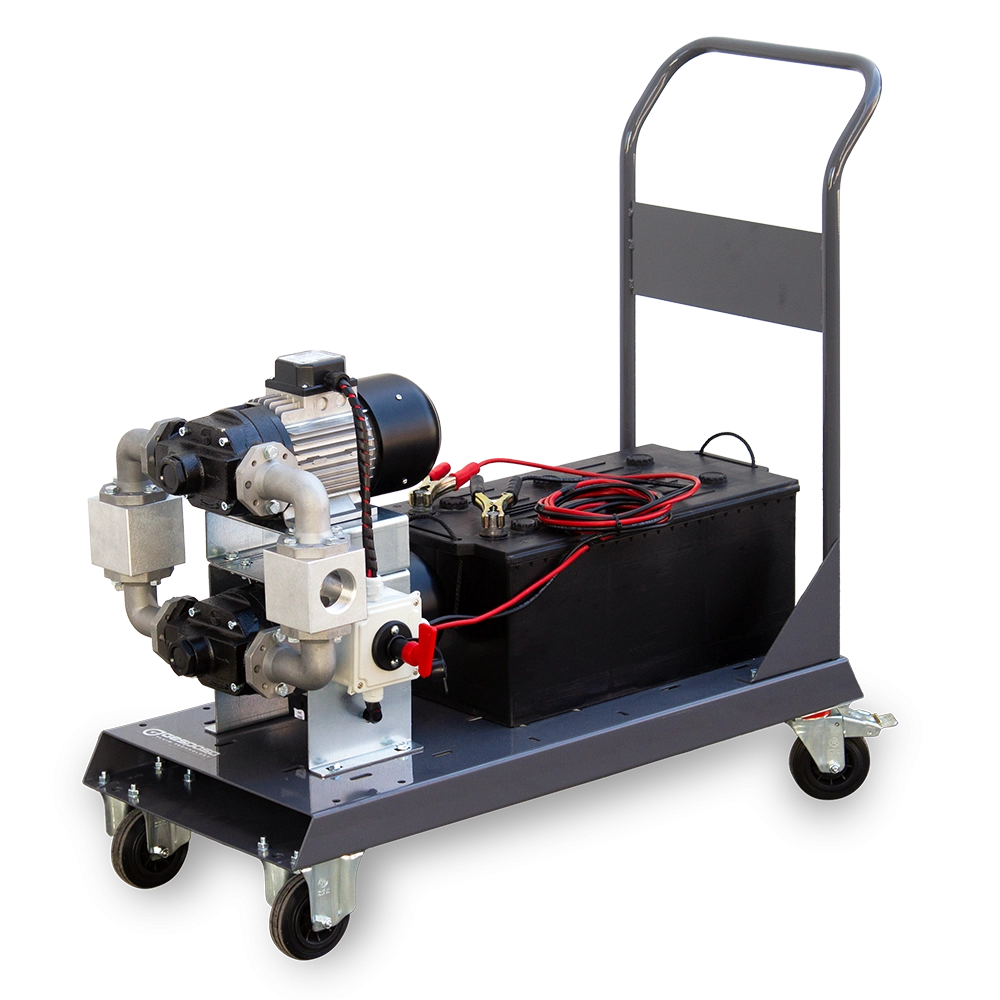

  • Metallic bedplate trolley with wheels
  • Hoses and accessories
  • Hose-reel
