APPLICATION

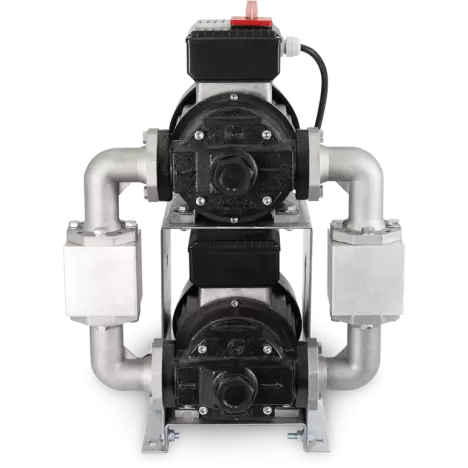

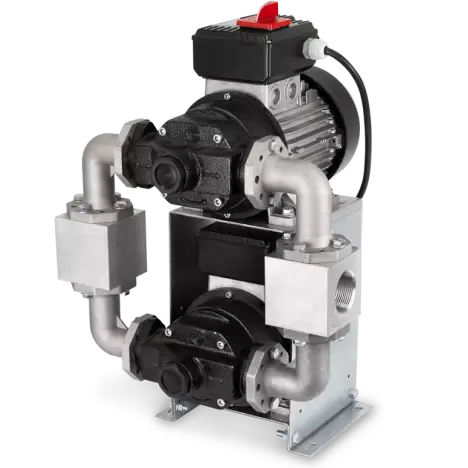

- Self-suction, self-priming pump with eccentric vanes
- Composed of two pumps joined by a manifold (on demand)
TECHNICAL FEATURES
- Flow: 200 l/min
- Consumption: 7-12 A
- Pressure: 3 bar
- Motor: 2x1 kW 230 VAC, single-phase, self-ventilated
- Thermal protection
- S1 continuous operation
- IP-55 protection
- 1,500 rpm
- Equipped with recirculation bypass
- Suction: 2.7 m · Delivery: 20 m
- Priming pipe suction: 5 m
- Connection using M1 ½" threads (BSP). The manifold can be built according to specific needs on demand.
- Junction box with key switch
- Anti-rust treatment
Dimensions and weight (approx.):
- Dim.: 400x350x550 mm (LxWxH)
- Weight: 44.5 kg
Optional
- Metallic bedplate trolley with wheels
- Hoses and accessories
- Hose-reel
