Family Selection / Meters / Series M METERS · ATEX

Series M METERS · ATEX

25 to 3,000 l/min · ±0.2 % 1 1/2" to 6"

Dizel Dizel
Benzin Benzin
  • The M series meter is a positive displacement meter for liquids. It is designed for liquid measurement both in transfer and process control. Because of its design, it is easy to keep and can suit a wide range of applications.
  • The M series rotary flow meter has a simple and efficient design consisting of a housing and three rotors that rotate in unison (at the same time) within the measuring chamber.
  • The absence of wear, from no metal-to-metal contact inside the chamber, eliminates any deterioration in accuracy and provides a long service life.
  • The rotors are composed of bearings inserted into two bearing plates, where at the end of each rotor shaft there is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, which gives a consistent and superior measurement of accuracy.

FEATURES

  • It has built in an air eliminator.
  • The excellent stepless adjusting device allows a micro-adjustment of the meter.
  • High accuracy and repeatability over the widest range of flow, superior accuracy at constant flow;
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
  • Accuracy regardless of the pressure fluctuations, temperature variation, viscosity;
  • Aluminium body, Viton seal;
  • Standard measurement in Litres / US GAL / IMP GAL (please, ask for it when ordering);
  • It includes a strainer with a mesh of 80/170 μm (micron).

TECHNICAL DATA:

  • Accuracy: ±0.2 %
  • Repeatability: ≤ 0.07%
  • Temperature range: -30 ºC to +71 ºC
  • Max. pressure: 10 bar (145 psi)
  • ATEX II 2G Category
  • Protection or own supply mode: Ex h IIB T5 Gb

*It is possible to configure the meter with custom specifications according to your needs.

OPTIONAL
  • Pulser
  • Mechanical predeterminer + cut-off valve
  • Mechanical predeterminer + cut-off valve + printer
M-40 · HIGH FLOW MECHANICAL METER
808318005
  • Flow: 25-250 l/min
  • Volume per round: 0.309 L
  • Size: 1 1/2"
  • Packing size: 510x460x490 mm (LxWxH)
  • Gross weight: 25 kg
M-50 · HIGH FLOW MECHANICAL METER
808318004
  • Flow: 55-550 l/min
  • Volume per round: 0.681 L
  • Size: 2"
  • Packing size: 510x460x490 mm (LxWxH)
  • Gross weight: 28 kg
M-80 · HIGH FLOW MECHANICAL METER
808318003
  • Flow: 115-1,150 l/min
  • Volume per round: 1.839 L
  • Size: 3"
  • Packing size: 580x500x610 mm (LxWxH)
  • Gross weight: 47 kg
M-100 · HIGH FLOW MECHANICAL METER
808318002
  • Flow: 170-1700 l/min
  • Volume per round: 5.102 L
  • Size: 4"
  • Packing size: 760x640x720 mm (LxWxH)
  • Gross weight: 93 kg
M-150 · HIGH FLOW MECHANICAL METER
808318045
  • Flow: 300-3,000 l/min
  • Volume per round: 9.507 L
  • Size: 6"
  • Packing size: 800x650x790 mm (LxWxH)
  • Gross weight: 180 kg

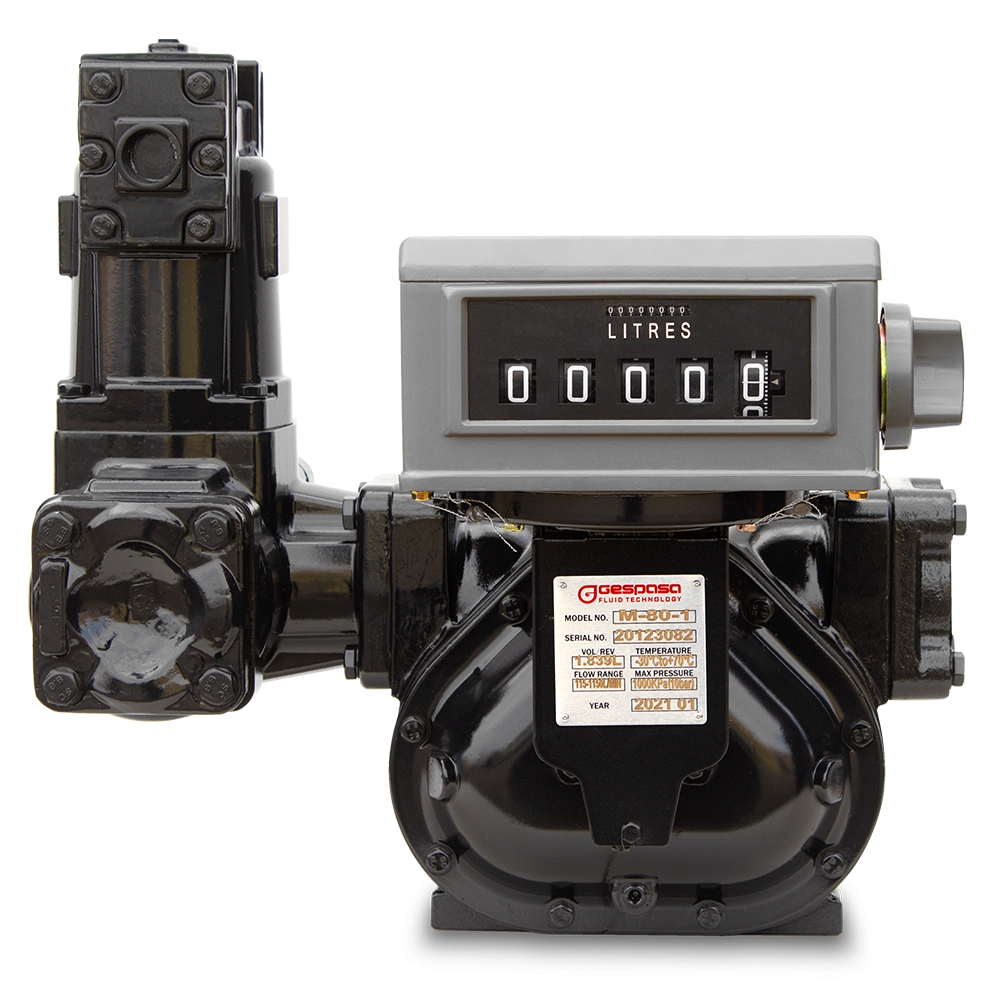

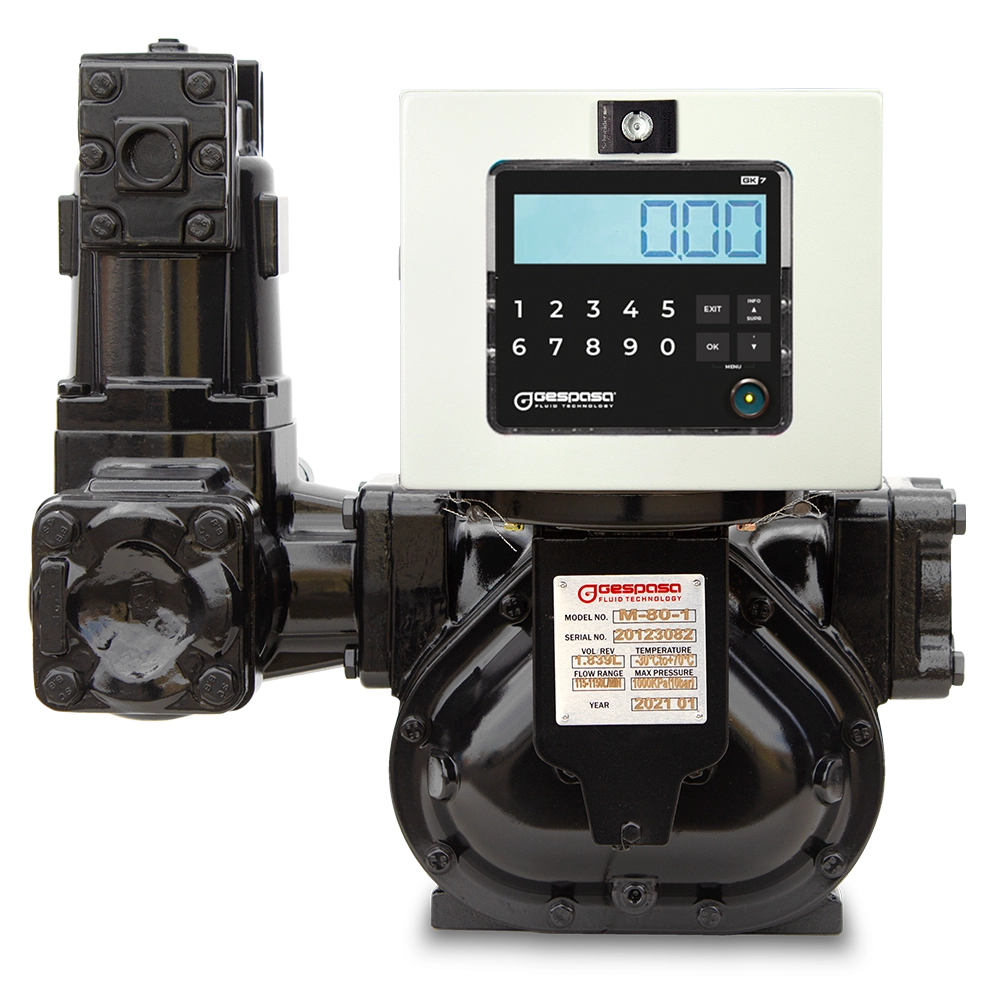

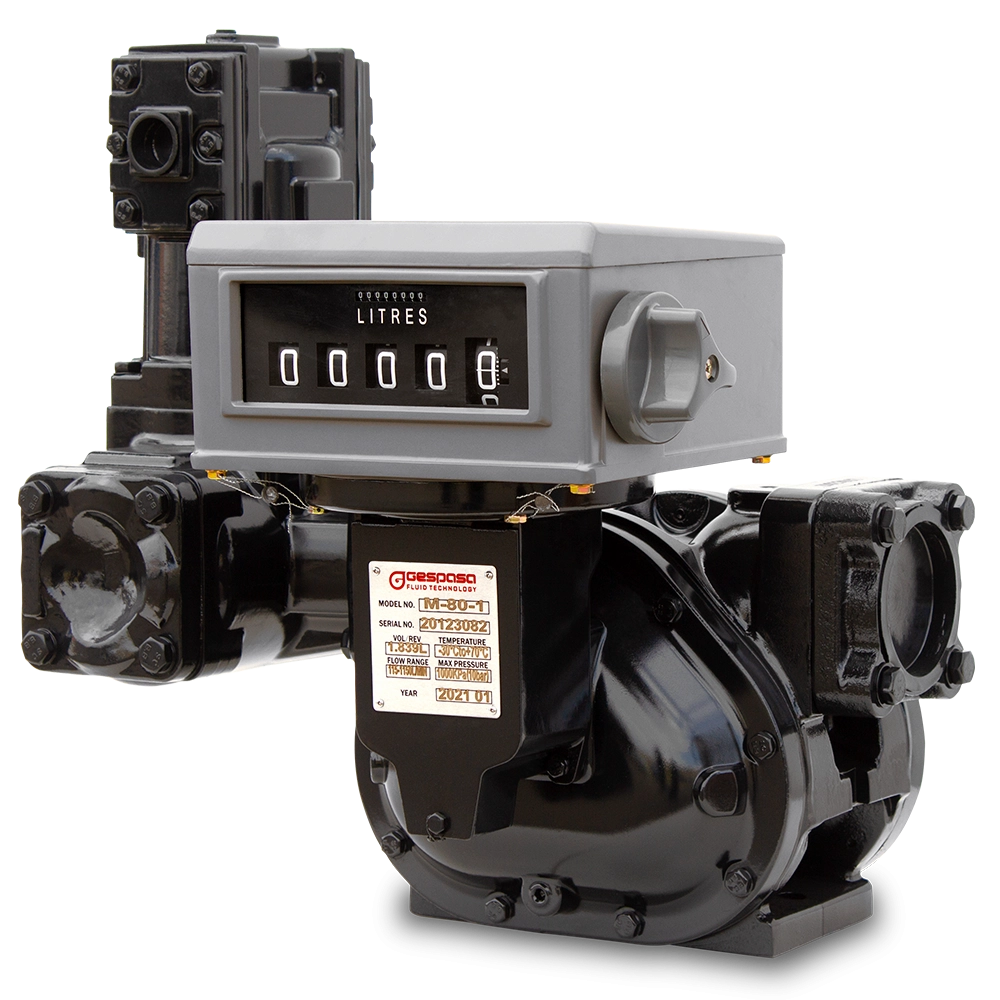

*Available with mechanical register, pulser or electronic display GE
