20-400 l/min · ±0.8 % · F2"

Adblue/Def

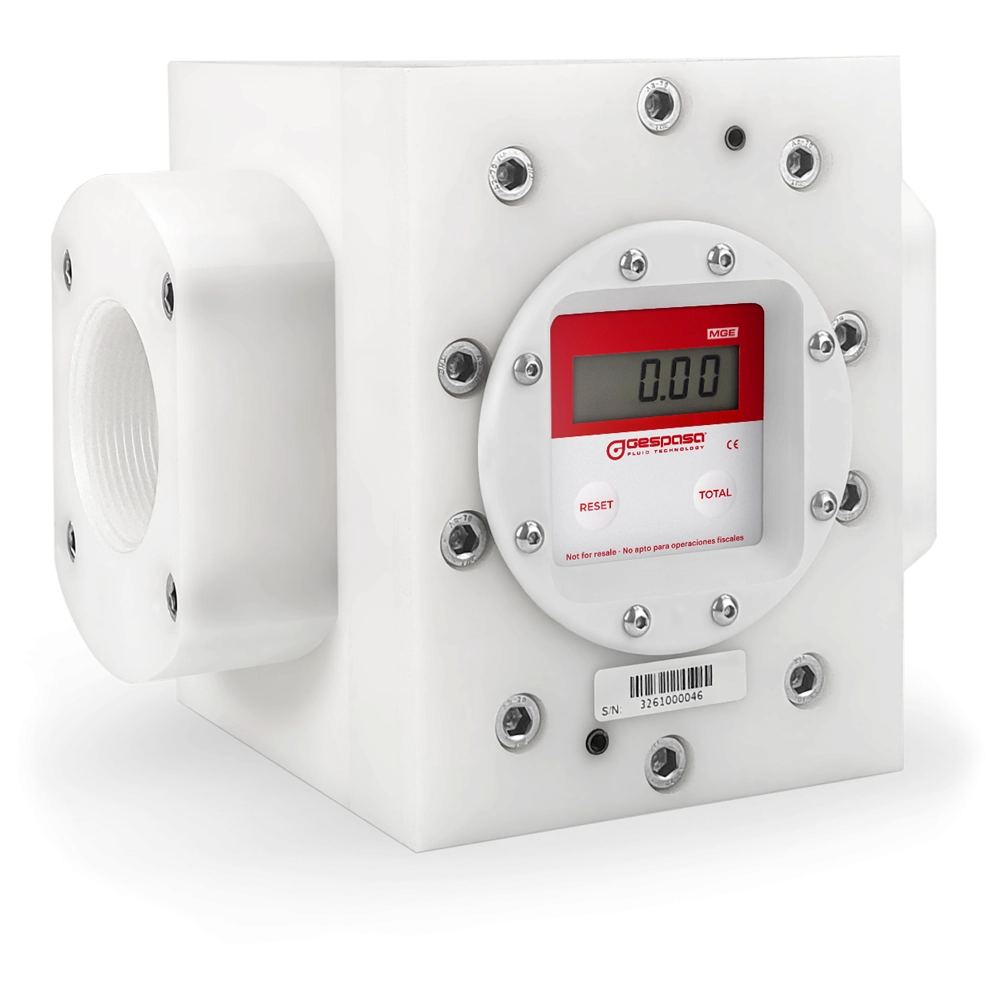

MGE-400 BLUE · Electronic meter

32610-CF00000

Electronic meter with oval gear measuring chamber
Its measuring chamber allows to transfer AdBlue/DEF, fuel, lubricant (please, consult other liquids).
It is made of heavy-duty plastic material with tolerance to temperature changes.
It is for private use.

Technical data:

Flow: 20-400 l/min
Display of 5 digits. It stores the litres of the last service.
Min./Max. temperature: -10 / +50 ºC
Max. Humidity: 95 HR
Accuracy: ±0.8 %
Maximum pressure: 5 bar
Break pressure: 10 bar
Inlet/outlet connection thread: F2" GAS (BSP) with flanges
Feeding by button battery of long duration (approx. 5 years)
Low battery alarm
It has calibration parameters and stored litre totalizer on a PERMANENT MEMORY

Size and weight (approx.):

Dim.: 220x142x175 mm (length x width x height)
Weight: 5.35 kg
